Section 5 - Maintenance
Page 60 90-8M0069751 eng APRIL 2012
Description Nm lb–in. lb–ft
Fill and drain plug 6.8 60 –
16.
Install the sterndrive propeller. See Propellers.
17.
Recheck the gear lube level at the gear lube monitor after the first use. See Checking.
IMPORTANT: The gear lube level in the gear lube monitor will rise and fall during sterndrive operation; always check the gear
lube level when the sterndrive is cool and the engine is shut down.
Power Trim Fluid
Checking
IMPORTANT: Check the fluid level with the sterndrive in the full down (in) position only.
1. Place the sterndrive in full down (in) position.

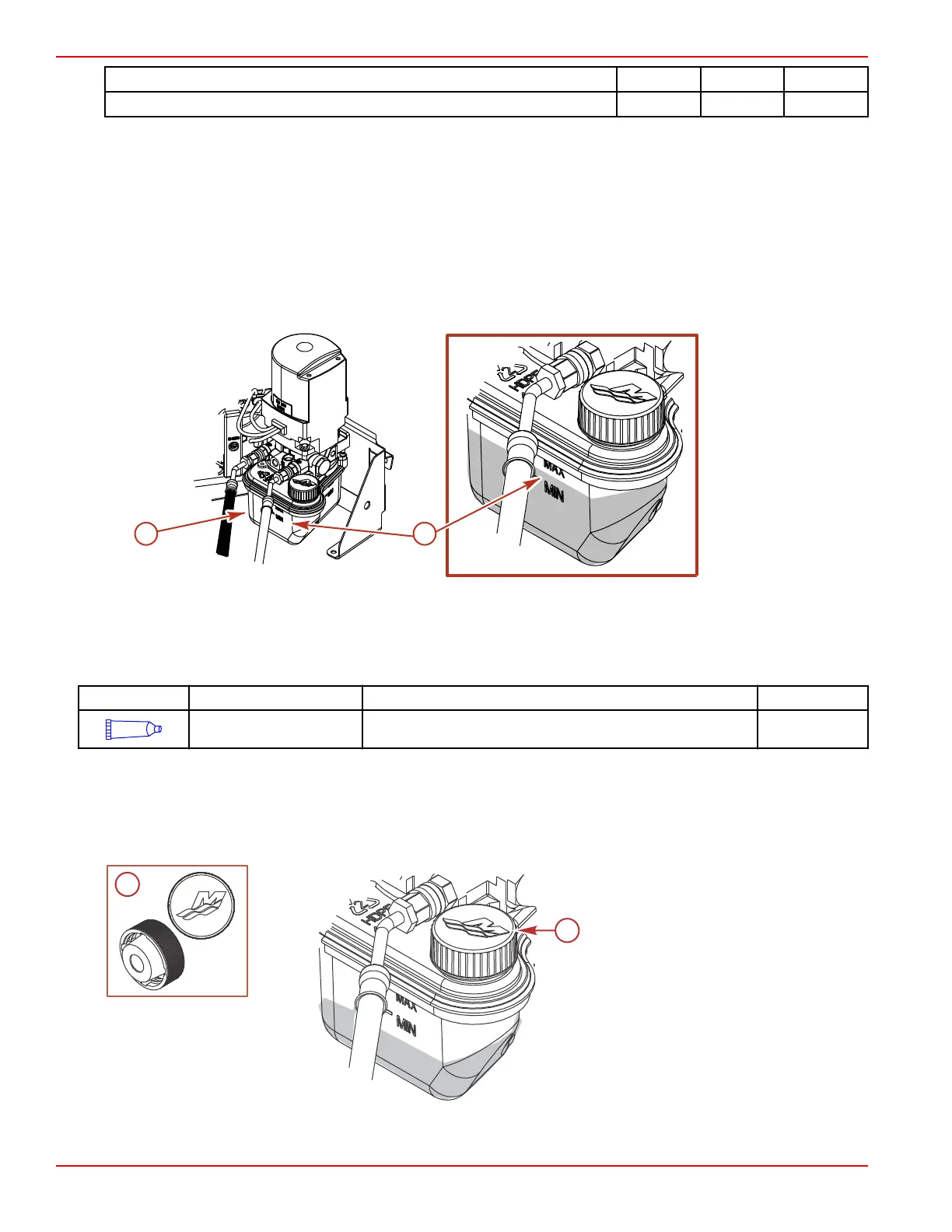

2. Observe the fluid level. The fluid level must be between the "MIN" and "MAX" lines on the reservoir.
a - Reservoir
b - "MIN" and "MAX" lines
3.
Fill as necessary with the specified fluid. See Filling.
Tube Ref No.
Description Where Used Part No.
114
Power Trim and Steering
Fluid
Power trim pump 92-858074K01
Filling
1. If the fluid level is below the "MIN" line, the specified fluid must be added.
2. Remove the fill cap from the reservoir.
NOTE: The fill cap is vented.
Power trim pump reservoir shows the
fluid level is below "MIN" line
a - Fill cap assembly
b - Fill cap installed
a
b
7876
