Section 5 - Maintenance
90-8M0069751 eng APRIL 2012 Page 59
12. Fill the gear lube monitor so that the gear lube level is in the operating range. Do not overfill.

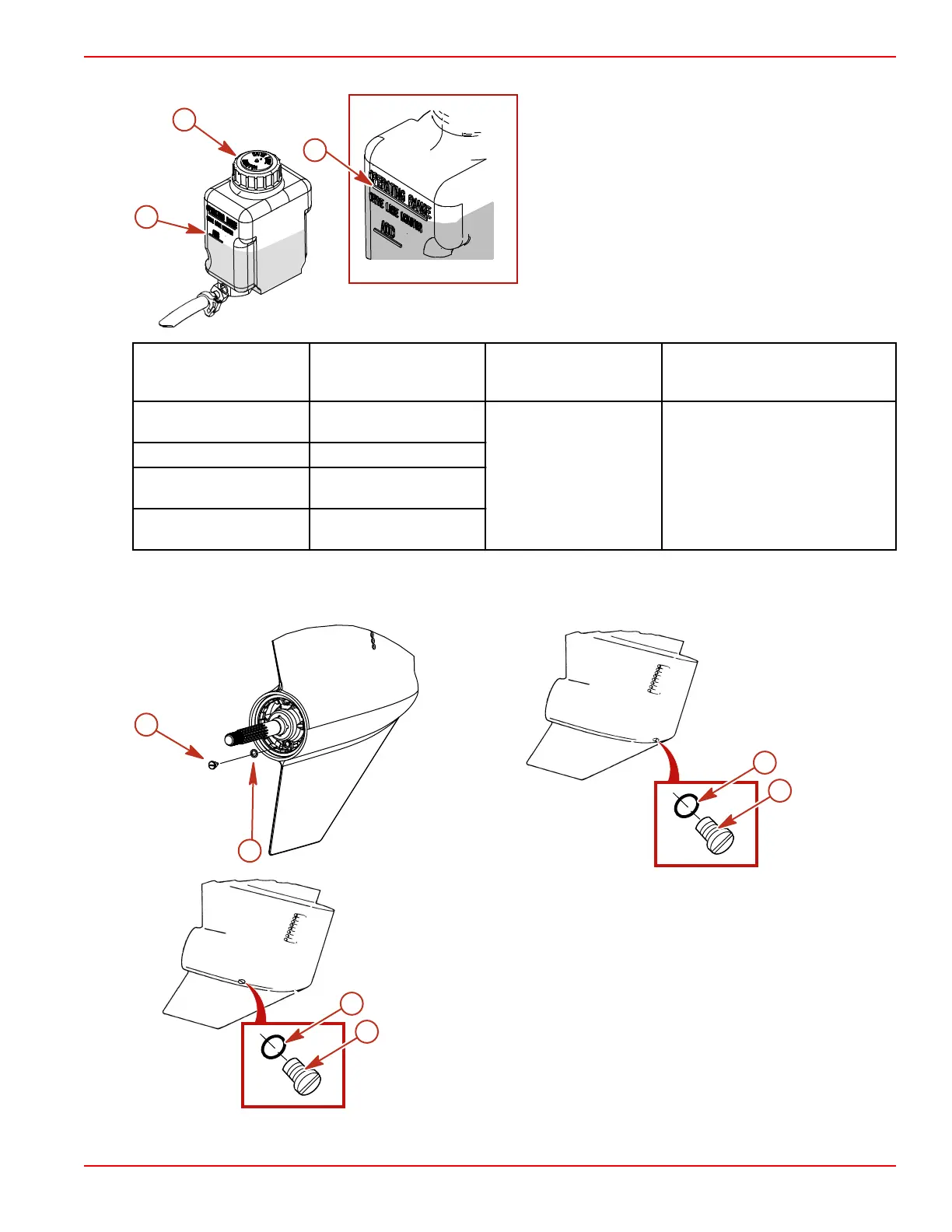

Gear lube monitor
a - Gear lube level at the "ADD" mark
b - Gear lube level at the "OPERATING RANGE" mark
c - Gear lube monitor cap
Sterndrive Model
Fluid Capacity includes
the Sterndrive and the
Gear lube Monitor
Fluid Type Fluid Part Number
Bravo One X Diesel
Bravo One XR
2736 mL (92‑1/2 oz.)
High Performance Gear
Lube
92‑858064K01
Bravo Two X Diesel 3209 mL (108‑1/2 oz.)
Bravo Three X Diesel
Bravo Three XR
2972 mL (100‑1/2 oz.)
Bravo Three (Dual
seawater pickup)
2736 mL (92‑1/2 oz.)
13. Ensure that the rubber gasket is inside the gear lube monitor cap and install. Do not overtighten.
14. Remove the pump from the sterndrive fill and drain plug hole.
15. Quickly install the sealing washer and the fill and drain plug. Tighten to the following specifications.
All Bravo Models Shown
a - Fill and drain plug
b - Sealing washer
19947
b
a
c
a
mc79506-1
b
a
b
14621
a
b
19777
