Section 2 - Getting to Know Your Power Package
90-8M0069751 eng APRIL 2012 Page 21

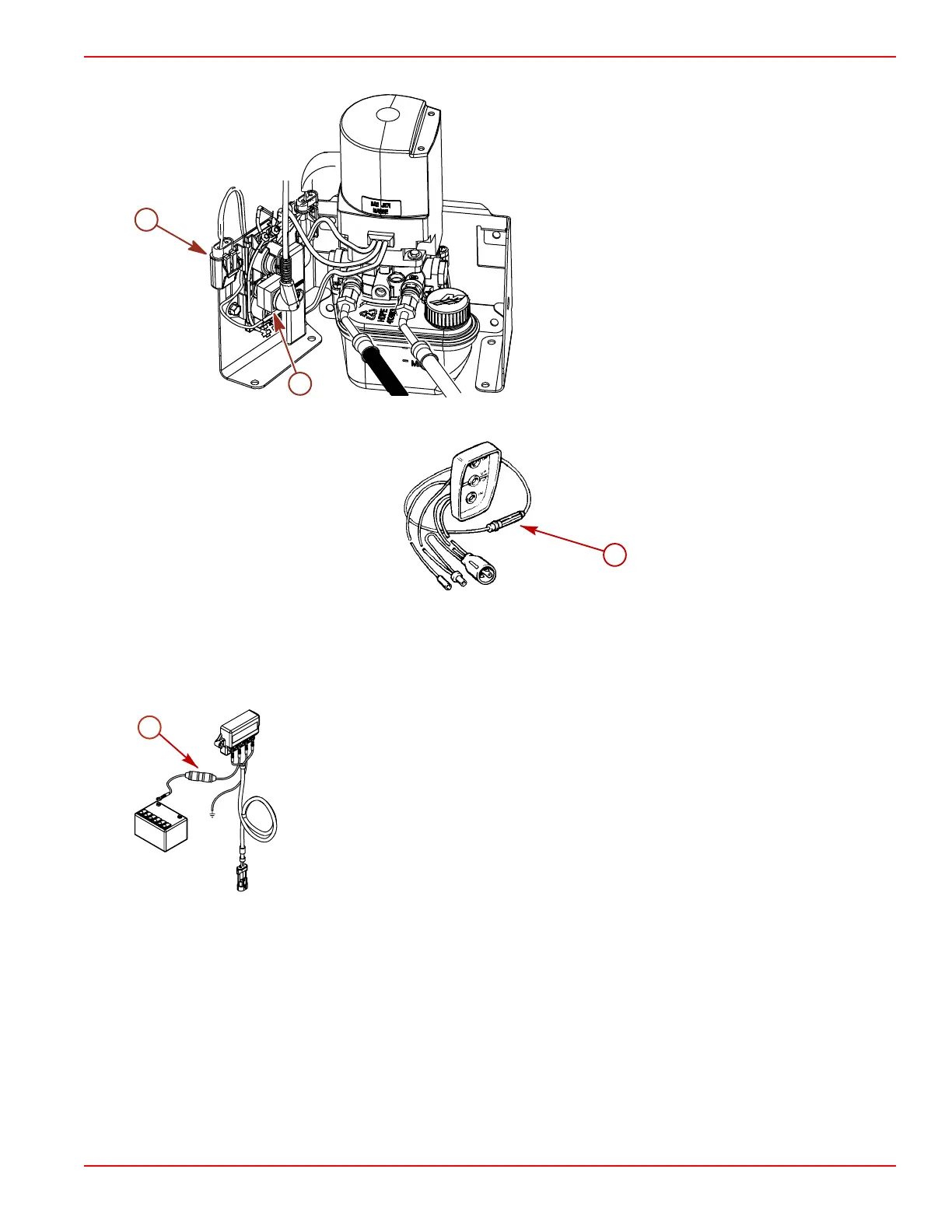

1. The power trim system is protected from overload by a 110‑amp fuse and a 20‑amp in‑line fuse on the power trim pump.
a - 20‑amp in‑line fuse holder
b - 110‑amp fuse
2. The Quicksilver three‑button power trim control panel, if equipped, is protected from overload by a 20‑amp in‑line fuse.
a - 20‑amp in‑line fuse
3. The Quicksilver MerCathode System, if equipped, has a 20‑amp in‑line fuse in the wire that connects to the positive (+)
terminal on the controller. If the fuse is burned out (blown), the system will not operate, resulting in a loss of corrosion
protection.
a - 20‑amp in‑line fuse
a
b
9208
a
a
19834
