Section 5 - Maintenance
90-8M0069751 eng APRIL 2012 Page 87

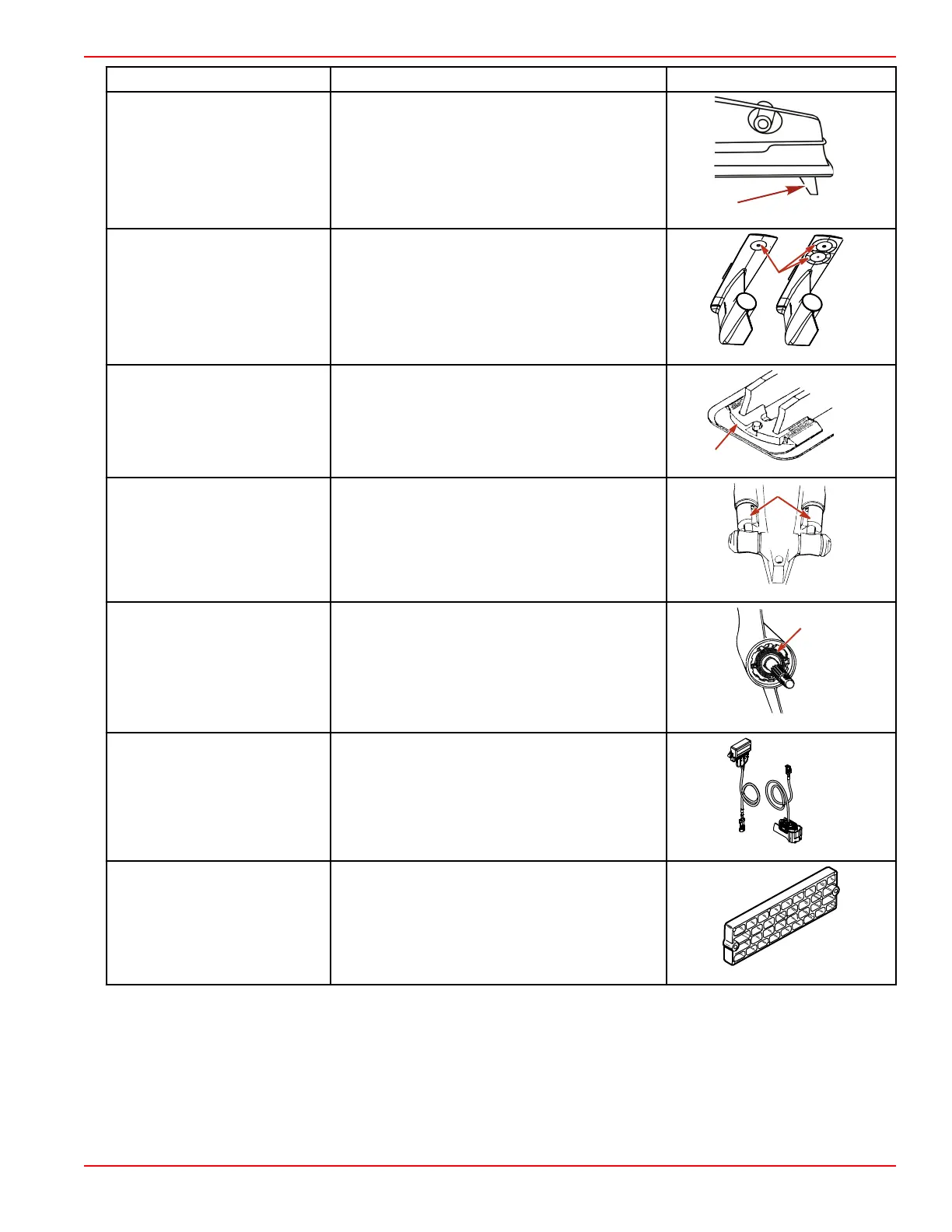

Description Location Figure
Alpha sterndrive
gearcase anodic plate
Mounted on the underside of the lower gearcase.
Bravo sterndrive
gearcase anode plate
Mounted on the underside of the lower gearcase.
20336
Alpha and Bravo sterndrive
ventilation plate anode
Mounted on the front of the gearcase.
20338
Alpha and Bravo sterndrive
trim cylinder anodes
Mounted on each of the trim cylinders.
20342
Alpha and Bravo sterndrive
bearing carrier anode
Located in front of the propeller, between the front
side of the propeller and the gear housing.
20343
MerCathode System
The MerCathode electrode, if equipped, is mounted
to the underside of the gimbal housing. The
MerCathode controller is mounted on the engine or
on the boat transom. The controller harness
connects to the electrode harness.
20340
Anode kit (if equipped) Mounted to the boat transom.
20341
In addition to the corrosion protection devices, take the following steps to inhibit corrosion:
1.
Paint the power package. See Painting Your Power Package.
2. Annually spray the power package components on the inside of the boat with Corrosion Guard to protect the finish from
dulling and corrosion. You may also spray external power package components.
3. Keep all lubrication points, especially the steering system, shift, and throttle linkages, well lubricated.
4. Flush the cooling system periodically, preferably after each use.
