Section 5 - Maintenance
90-8M0069751 eng APRIL 2012 Page 89

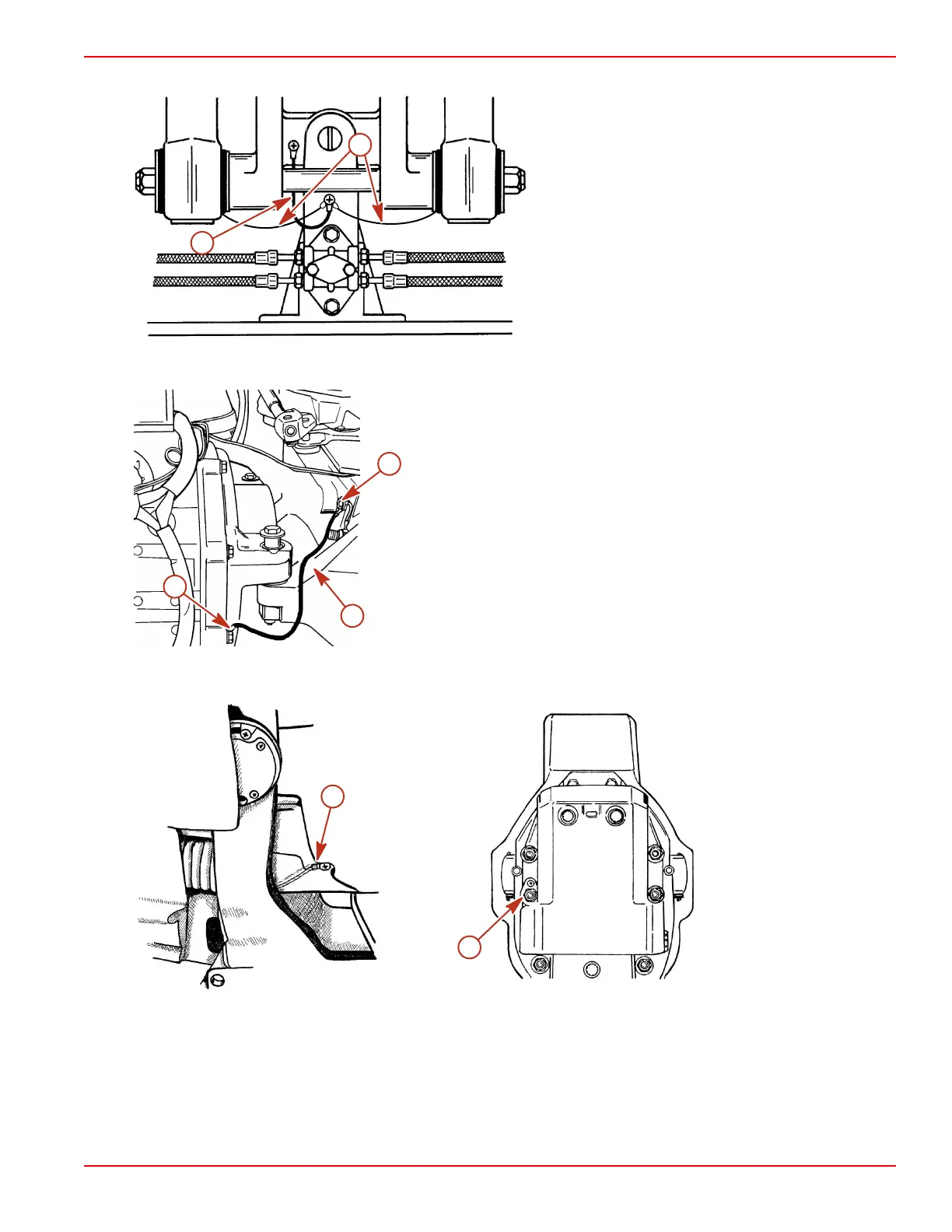

4. Inspect the gimbal housing ground wires for loose connections, broken connectors, or frayed wiring.
a - Gimbal housing–to–gimbal ring ground wire
b - Gimbal housing–to–trim cylinder ground wires
5. Inspect the flywheel housing grounding stud, ground wire, and the inner transom plate grounding screw for loose
connections, broken connectors, or frayed wiring.
Typical
a - Flywheel housing screw or grounding stud
b - Continuity circuit (ground) wire
c - Inner transom plate grounding screw
6. Inspect the gimbal ring ground wire, and the sterndrive ground plate for loose connections, broken connectors, or frayed
wiring.
a - Gimbal ring to bell
housing ground wire
b - Sterndrive unit to bell
housing ground plate
b
a
7006
7782
a
b
c
a
b
7008
