Finally, if all suitable precautions (including where necessary the provision of suitable protective equipment) have been
taken to prevent injury.
Check the following:
6. Speed controller LED status
7. Electrical supply to the speed controller
5.9 KitchenConnect
®
components.
KitchenConnect connections.

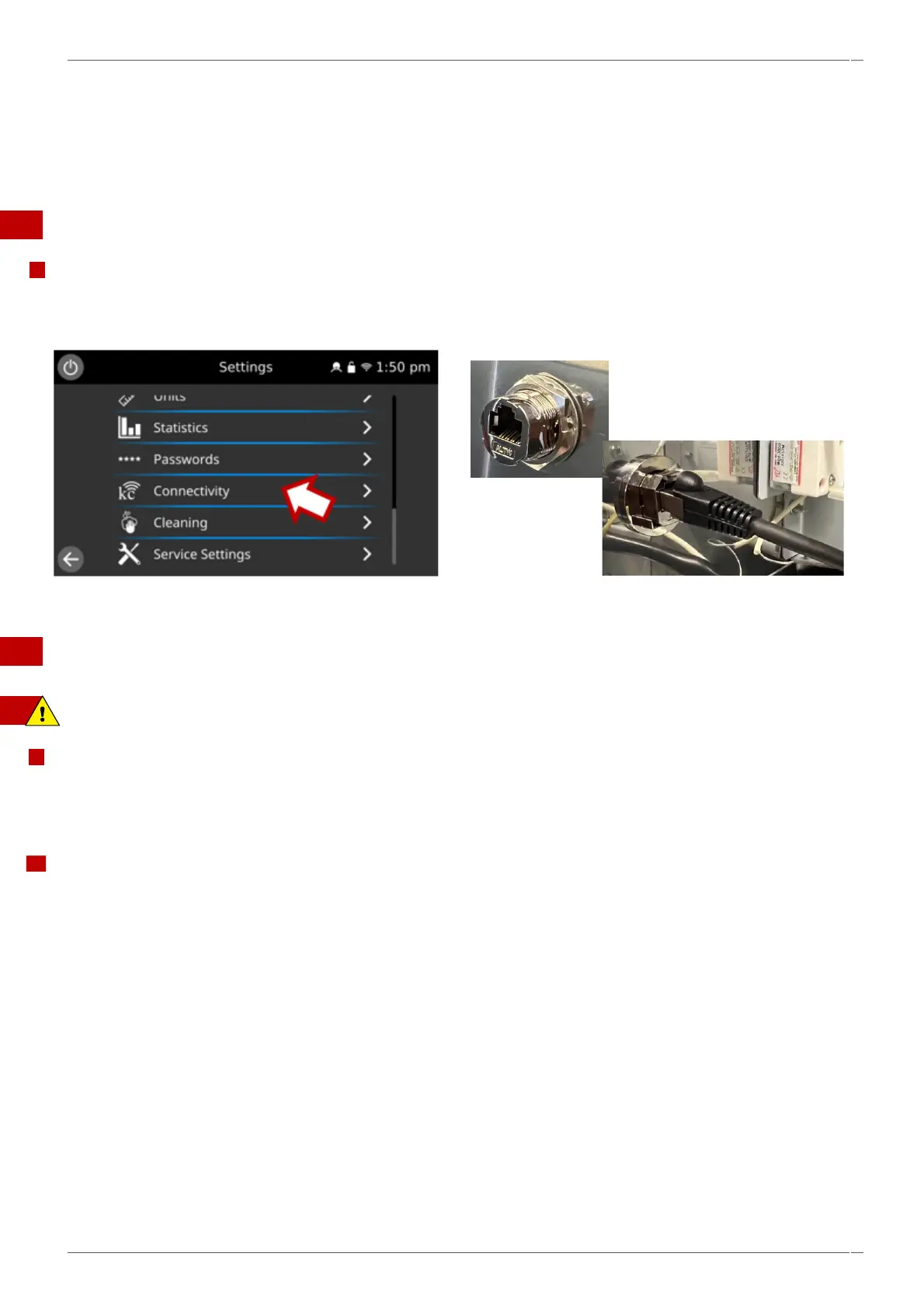

Optional Ethernet port between the UI ethernet loom connection (under the IO Board) and the rear panel lead socket. Wi-Fi
connectivity built into the UI as standard.
Connection details can be accessed from the settings menu.
6 Replacing components.
6.1 Safe working when replacing appliance parts.
For your safety when replacing appliance parts.
Before starting service work, it is essential that you familiarize yourself with the rules and hazard warnings specified in
section 2 ‘For your safety’, specifically section 2.16 ‘Safe working when replacing appliance parts’.
Tools required.
HV Capacitor discharge tool
Digital Multi-Meter (D.M.M.)
Proprietary voltage detector
Electrical lock out tools & equipment
Door spacer kit (2 x 4mm & 2mm
Spacers)
M2 hex key socket
M5.5 hex socket wrench / nut runner
M5.5 hex open / ring spanner
M7 hex socket wrench / nut runner
M7 hex open / ring spanner
M8 hex socket wrench / nut runner
M10 hex socket wrench / nut runner
M14 hex socket wrench / spanner
Torque wrench
Stanley / retractable knife
Sealant gun
Pozidriv screwdriver PZ1
Pozidriv screwdriver PZ2
Flat screwdriver or lever
Pliers (or M14 ring spanner)
Two metal pins, 3mm diameter & 10mm long
Two metal pins, 2 to 3mm diameter & 40mm or longer in length
Hammer (for removing pressed screws from a spare magnetron)
M3 hex key socket
