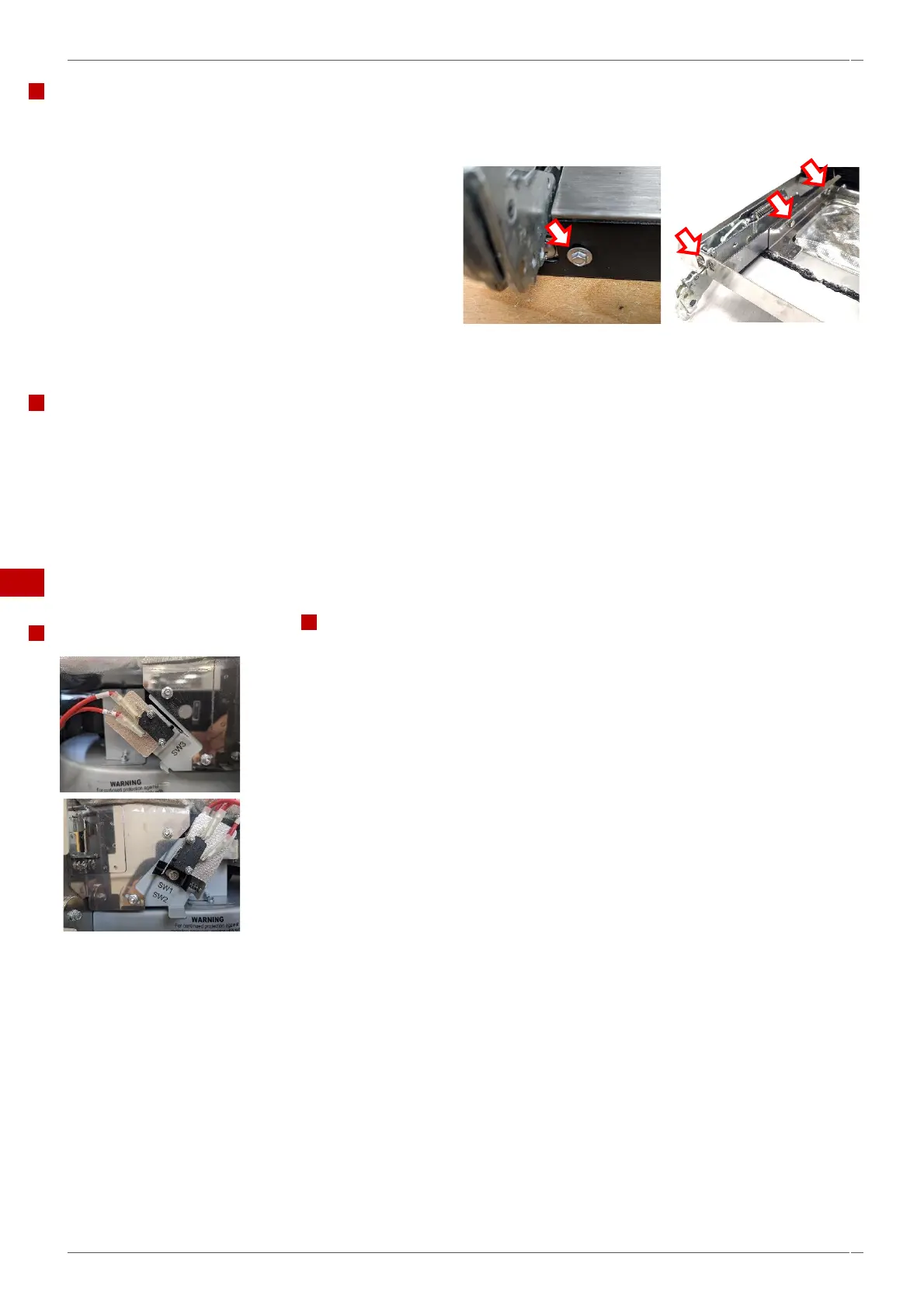

Removing the door hinge assemblies.
Firstly, follow the steps to remove the door from the oven as detailed previously.
1. Remove the door skin by removing the two
M5.5 bolts from the base of the door and lifting
the door skin from the base and pull
downward.
2. Remove the two M5 Hex Head bolts and the
Cross Head Self Tapping Screw that secure the
hinge assembly to the door.
3. Ensure the locking pins are fitted to both door
hinges.
Refitting the door hinge assemblies.
Follow the steps in the reverse order to refit the door hinge assemblies to the oven.
▪ The hinge assembly bolts should be torqued up to 3.5Nm.
▪ The switch assembly adjuster and fixing bolts should be torqued up to 2.1Nm.
▪ Refit the door as previously described.
▪ Set the door switch adjustment and ensure the operation is correct.
6.5 Adjusting the door microswitches/interlocks.
Component.
Requirements.
Check that the following requirements have been met:
▪ The appliance has been disconnected from the power supply and protective
measures have been taken to ensure the power cannot be switched on again.
▪ The appliance is cool.
▪ The high voltage capacitors are discharged before commencing work.
▪ Adjust the microswitches after refitting or replacing old with new door hinges.
▪ Adjust the microswitches after refitting the door or replacement of the door seal.
▪ Adjust the microswitches after refitting or replacing old with new door switches.
▪ Adjust the microswitches after determining incorrect operation during route service and maintenance.
