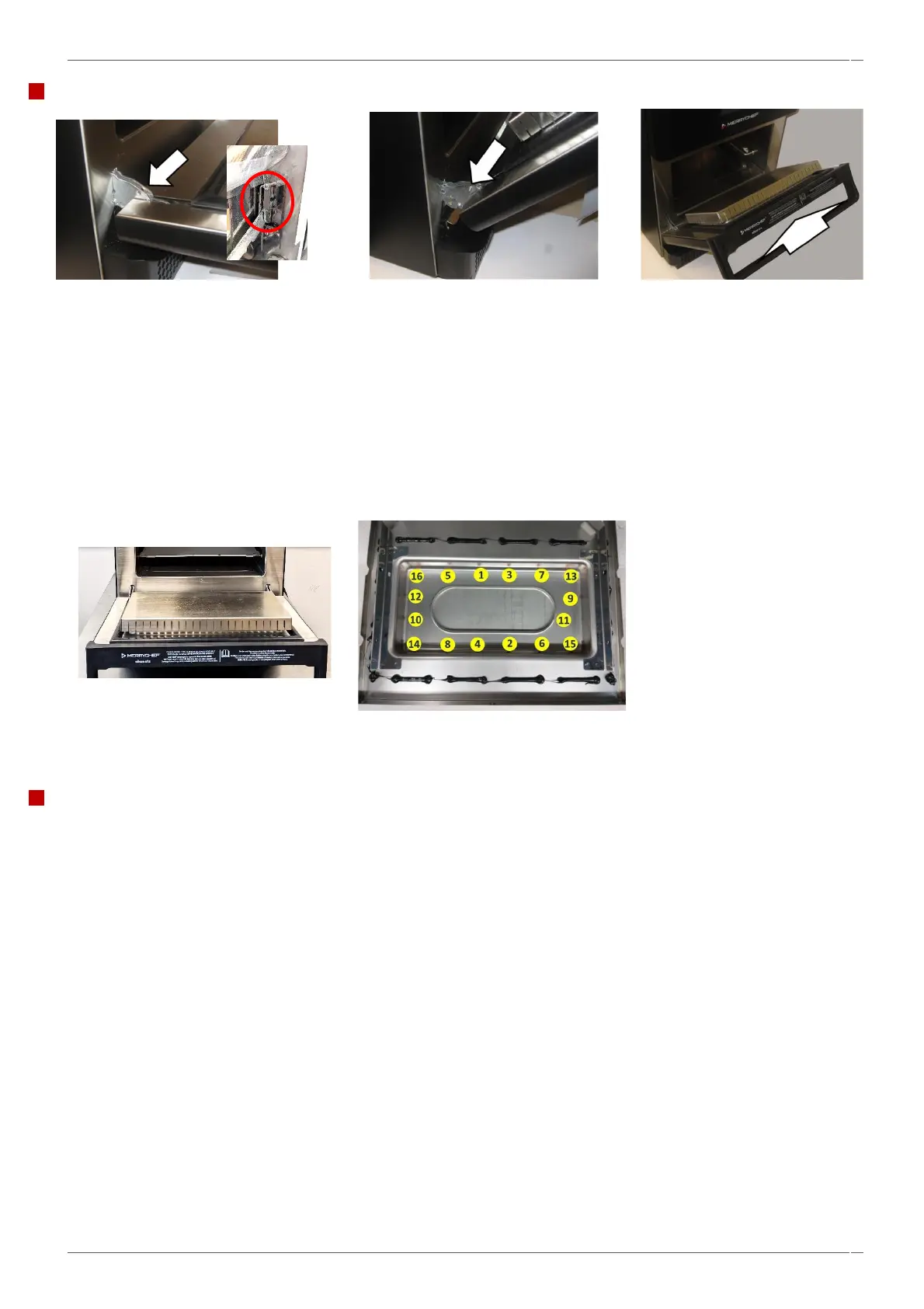

Removing the door assembly.
1. Remove the Hinge Retention Clip by
unscrewing the Posidriv screw, (circled
Red). (The door cannot be removed
with this in place). Open the door
fully and locate the holes positioned in
the upper area of the hinges.
2. Push the two metal pins
through the holes in each hinge.
3. Close the door onto the two
metal pins and then free the door
by pulling upward and forward.
The door should now be fully
removed.
4. The door choke is removed by unfastening the sixteen M8 hex nuts. On refitting the door choke, ensure the studs are
positioned correctly in the centre of the hole and not resting on the shoulder of the stud. The nuts should be retightened
diagonally in the following sequence to 2.1 Nm.
5. Wear gloves when removing or refitting insulation pads/mats in the door.
Refitting the door assembly.
Follow the steps in the reverse order to refit the door to the oven.
▪ Check that the door seal firmly meets the cavity frame all the way around once closed. A poor sealing door can
cause issues with the oven’s operation.
▪ Check the door switches are correctly adjusted and operating freely.
