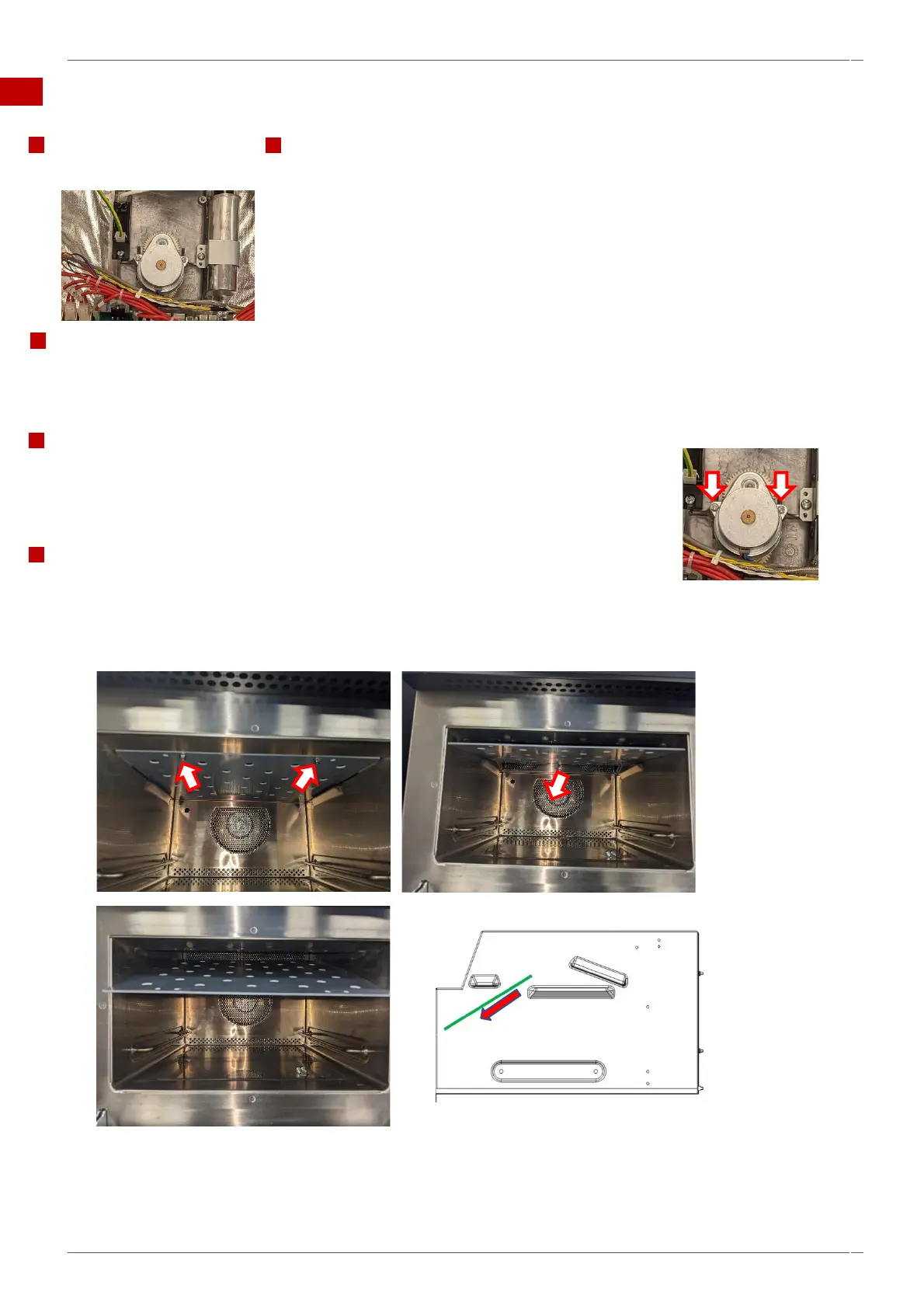

6.12 Replacing the stirrer motor and stirrer assembly.
Component.
Tools required.
Requirements.
Check that the following requirements have been met:
▪ The appliance has been disconnected from the power supply and protective
measures have been taken to ensure the power cannot be switched on again.
▪ The appliance is cool.
▪ The top and side panels of the casing of the appliance have been removed.
▪ The high voltage capacitors are discharged before commencing work.
M5.5 hex socket wrench Pozidriv PZ1 screwdriver
M7 hex socket wrench Torque wrench
Discharge Tool
Removing the stirrer motor.
1. Unplug the stirrer motor from the IO Board, connection X112.
2. Unfasten the two M3 x 8 Poszi screws holding the motor to the waveguide and lift
out.
Removing the microwave stirrer.
1. Unfasten the two M7 Hex screws at the front of the jet/impinger plate.
2. Drop down the jet/impinger plate slightly at the front and slide forward to release to two rear tabs.
3. The plate will then drop down and forward to remove.
