Merrychef conneX
®
service and repair manual

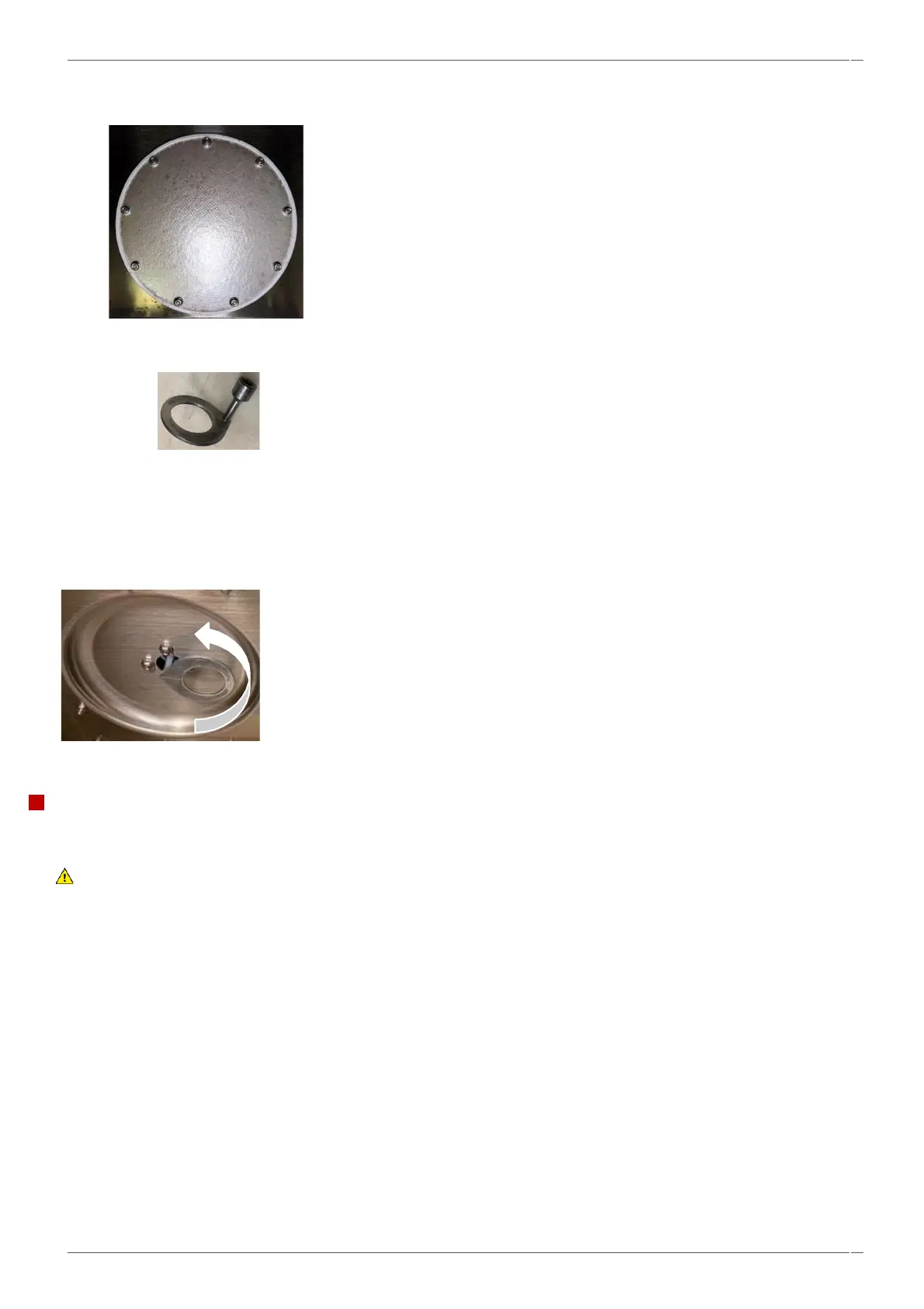

4. Unfasten the nine M7 hex nuts.
5. Carefully remove the partition plate.
NOTE: The partition plate features a rubber gasket on the side pointing
upwards (to the stirrer) when mounted. The rubber gasket prevents grease
laden air from soiling the stirrers and needs to be intact.
6. The stirrer(s) is positioned inside the top of the oven cavity, above the
partition plate.
7. To remove the stirrer from the spindle, turn anti-clockwise (looking up).
Hold the stirrer cog located next to the motor cog to prevent the stirrer
motor from rotating.
8. Remove any remains of the old gasket from the top of the cavity before
fitting a new partition plate (comes with gasket) to ensure a good seal.
Fitting the stirrer motor and assembly.
Follow the steps in the reverse order to fit the stirrer motor and stirrer.
IMPORTANT:
Follow the steps in the reverse order to fit the stirrer.
When refitting the partition plate fasten the screws on opposite corners/sides in turns and do NOT proceed
stringently clockwise or anti-clockwise.
Tighten the partition plate screws to 2.1 Nm of torque.
Tighten the jet/impinger plate screws to NO more than 1.8 Nm of torque.
Tighten the stirrer motor pozidrive screws to 1Nm torque.
