Fitting the panels of the casing.
Follow the steps in the reverse order to fit the panels of the casing, ensuring all 5.5M bolts are refitted and;
1. The side panels have been correctly slotted into the front cavity and base plate.
2. The top panel has been correctly slotted into the front.
3. If fitted, ensure the ethernet lead is reconnected to socket.
4. No wires have been trapped.

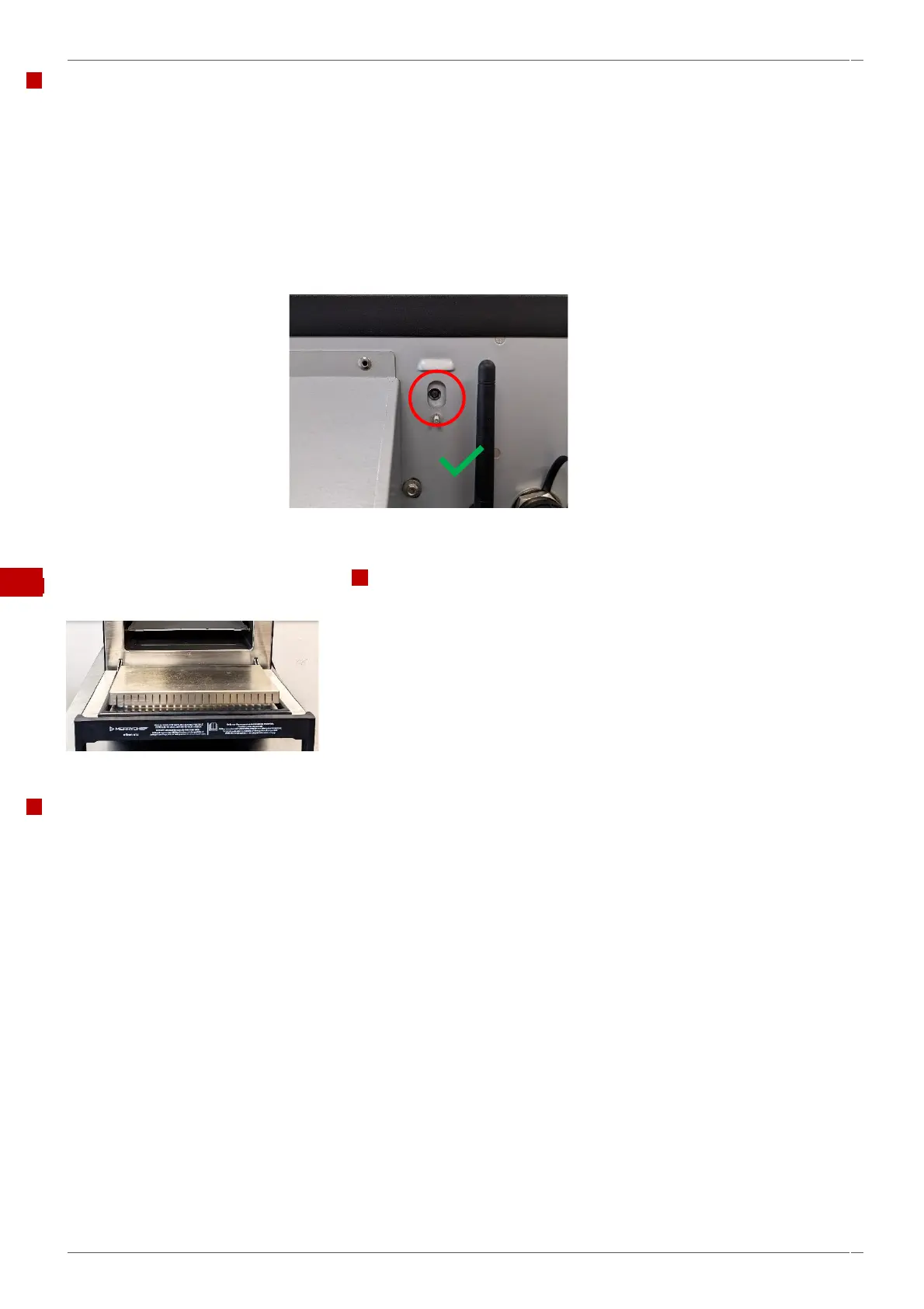

Care must be taken when refitting the rear panel to ensure the cavity overheat thermostat re-set button lines up correctly
with the access hole in the panel;
6.4 Removing / fitting the door assembly and hinges.
Component
Tools required.
Two locking pins
M5.5 hex socket wrench
M8 hex socket wrench
Torque wrench
PZ1 Pozidriv screwdriver
Requirements.
Check that the following requirements have been met:
▪ The appliance has been disconnected from the power supply and protective measures have been taken to ensure
the power cannot be switched on again.
▪ The appliance is cool.
▪ Additional PPE, Mask & Gloves for handling insulation material.
▪ Remove the top and side panels.
▪ Ensure the high voltage capacitors are discharged before commencing any work.
