Fitting the convection fan motor.
Follow the steps in the reverse order to fit the convection fan motor assembly.

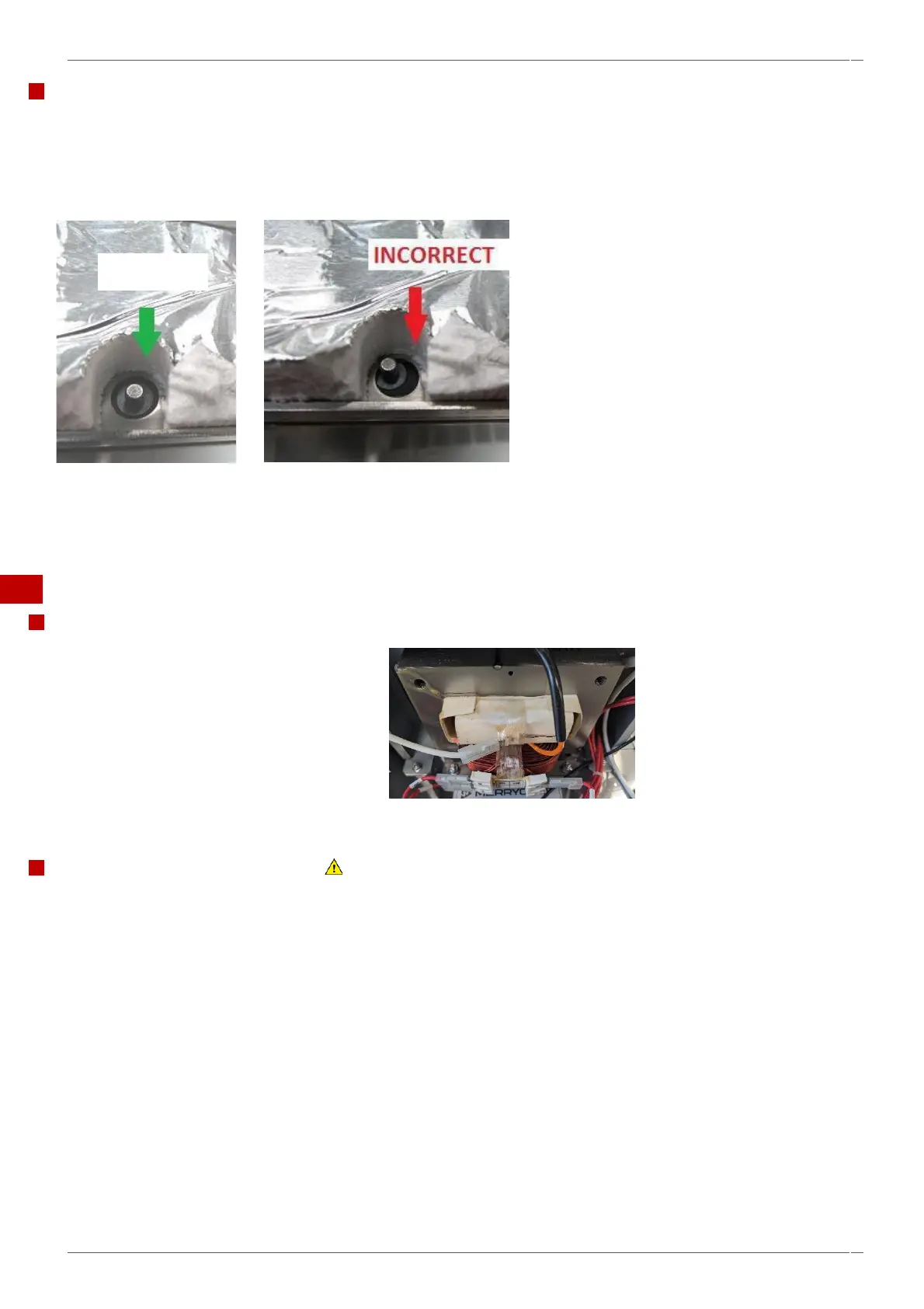

On replacement, ensure the rear plate is placed fully over the mounting points on the cavity before refitting and tightening
the nuts, fitting new gaskets if required, when refitting the replacement motor assembly and vent pipe, ensuring the mating
surfaces are clean.
Ensure the flange nuts holding the convection motor in place have been torqued to 2.1Nm and are torqued diagonally.
6.14 Replacing a transformer (high voltage).
Component
The conneX 12e has one HV transformer, at
the rear of the oven, under the cavity.
Tools required.
M8 hex socket wrench
End cutters
Discharge Tool
Torque Wrench
CAUTION:
The transformers are heavy.
Wear safety shoes to protect your feet from a dropped transformer.
