Merrychef conneX
®
service and repair manual

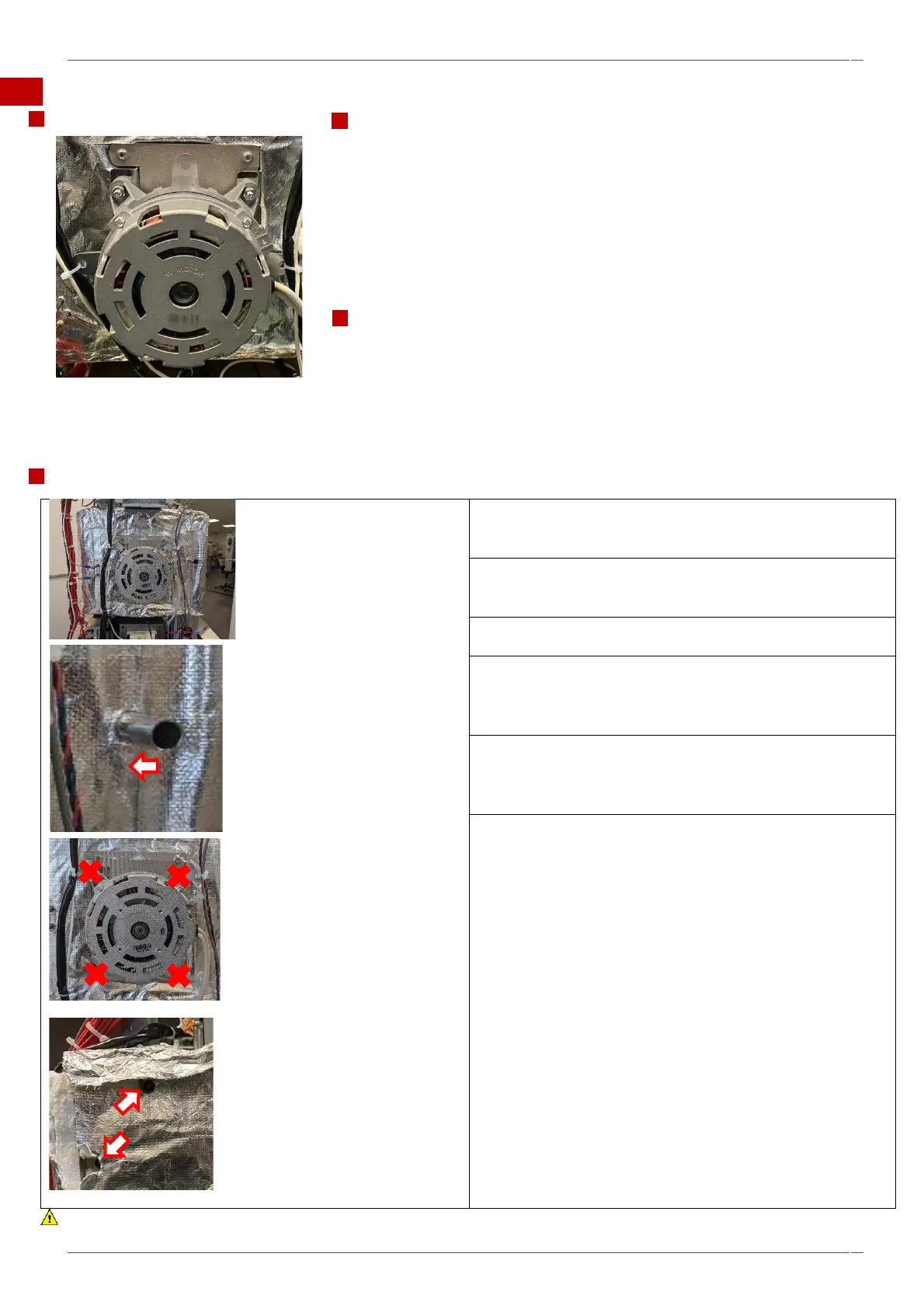

6.13 Replacing the convection fan motor.
Component.
Requirements.
Check that the following requirements have been met:
▪ The appliance has been disconnected from the power supply and
protective measures have been taken to ensure the power cannot be
switched on again.
▪ The appliance is cool.
▪ All panels of the casing of the appliance have been removed.
▪ The high voltage capacitors are discharged before commencing work.
▪ Additional PPE, Mask & Gloves for handling insulation material.
Tools required.
M7 hex socket wrench
M7 hex spanner
Torque wrench
Heat tape
Discharge Tool
Removing the convection fan motor.
Stanley / retractable knife
CAUTION: Wear personal protective equipment to protect your fingers when using the knife.
1. Remove the tape from around the rear edge of the
cavity.
2. Disconnect the convection fan wiring from the
motor speed controller (VFD drive).
3. Disconnect the two heater wires (see section 6.16).
4. Locate the M7 hex nut and remove the steam vent
pipe.
5. Remove the cable ties fixing the wiring to either side
of the fan motor and move the wiring clear of the back
of the oven.
6. Locate the ten nuts fixing the plate carrying the
convection fan motor to the rear of the cavity. There
are three nuts close to the horizontal edges and two
nuts close to the vertical edges.
Unfasten the ten M7 hex nuts to remove the plate with
the convection fan motor assembly, being careful of
the wiring in the vicinity.
Note: Do not unfasten the four M13 bolts securing the
convection fan motor to the plate.
Removing the convection fan motor assembly will also give
access to the upper & lower catalytic converters and the
heating element.
