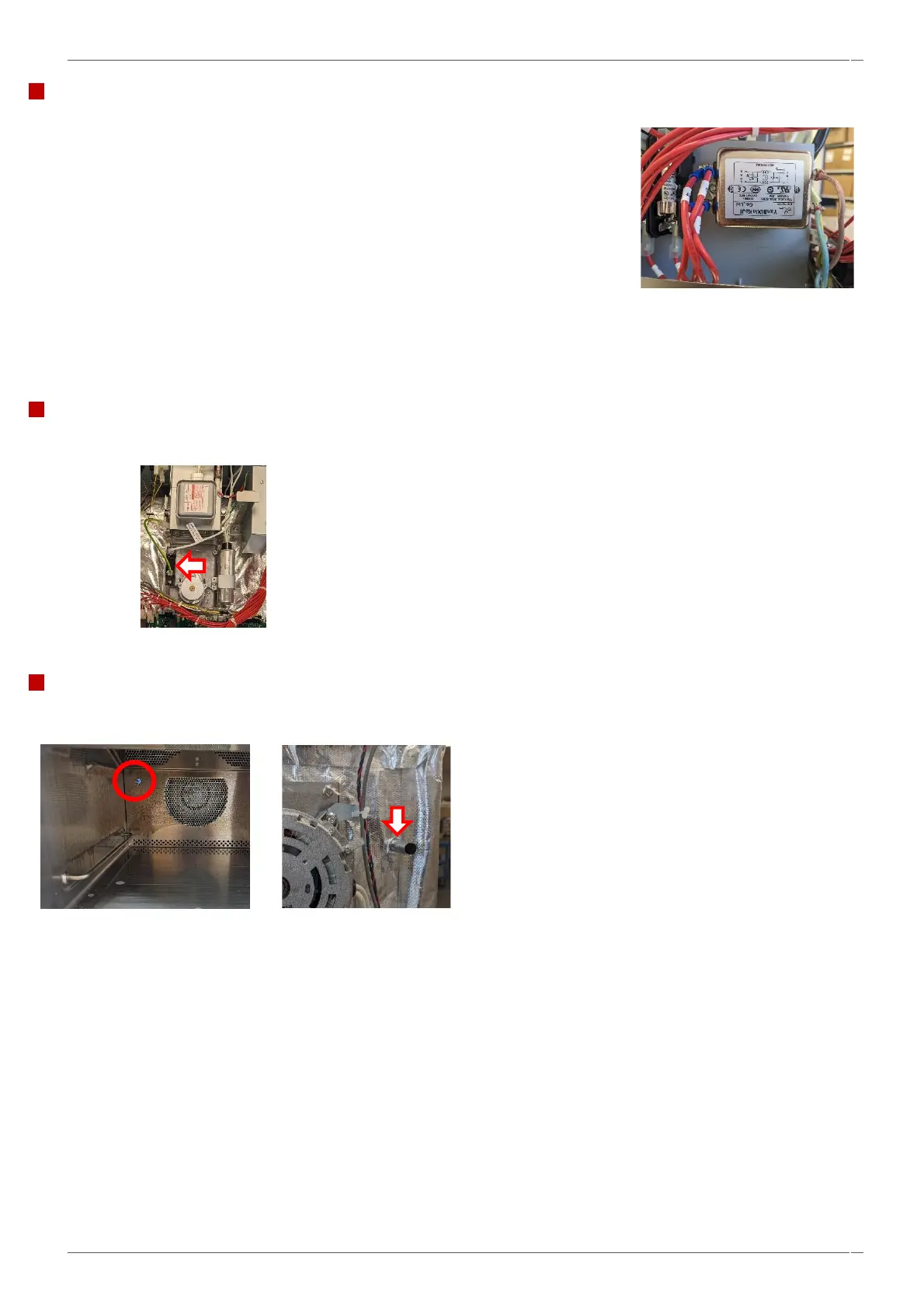

Electromagnetic Compatibility (EMC) Filters.
Microwave Circuit, Heater & Control Circuits.
EMC filter to bracket by two M7 hex nuts.
EMC filter bracket to base plate by two M7 hex nuts, slotted in at the back.
Wiring connections by M7 hex head nuts, torqued to 1.2Nm.
Single phase oven supply is connected to the filter. Live on the top terminal, neutral on
the bottom terminal.
US ovens, supply connected L1 on the top terminal, L2 on the bottom terminal.
Diode (high voltage).
Fitted by two pozidrive (PZ2)
screws to 1Nm.
One high voltage diode
Steam Vent (Exhaust pipe).
The straight steam vent runs from the rear of the
cavity directly out of the rear of the oven,
secured by a single M4 flange nut and gasket
torqued to 2.1Nm.
