VIKING 4G E, S
Rev. 1.0 (29.1.2020)
Installation

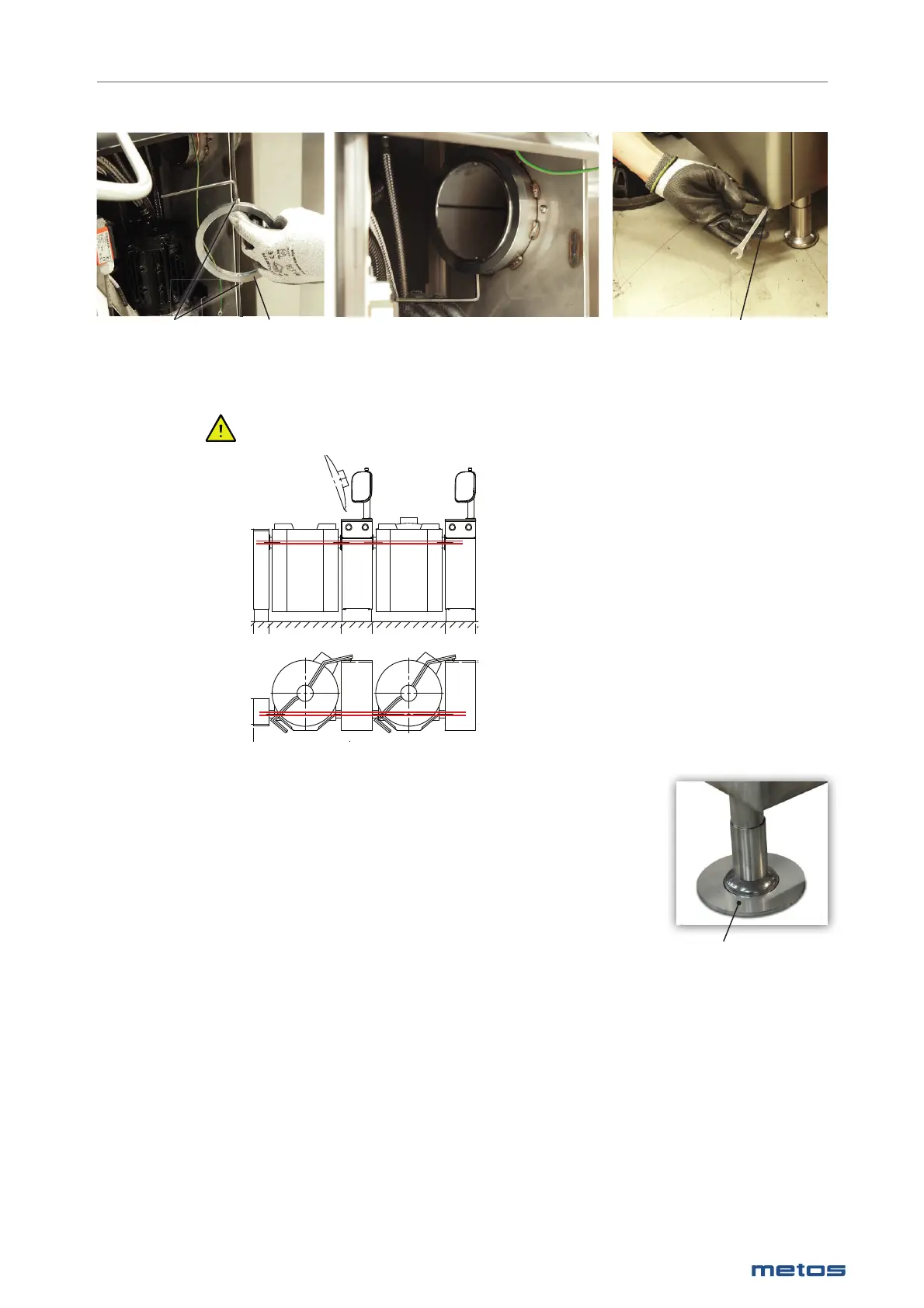

• Mount the locking ring (1) and secure it with the two locking screws (2) (4 mm Allen key). After that
the cover plate of the kettles control pillar can be refi tted (3) (10 mm spanner).
12
3
Make sure that the axles of the kettles align, both horizontally and sideways. Adjust if needed with the
adjustable feet.
Mounting fl anges
Mounting fl anges (4 pcs / kettle) are recommended for all kettles and
especially for large kettles (150 liters and larger) or if the fl oor is uneven.
The fl anges are glued to the fl oor.
• Lift one side at a time with a forklift trolley and place the fl ange around
the legs in the corner. Lower the kettle and glue the fl ange to the fl oor.
Mounting fl ange
