MI 3309 BT DeltaPAT Main menu and test modes
25
4.3. Shortcut menu
In this menu are all the most popular pre-defined autotest sequences that can be selected
and performed (shown in Appendix C). When an autotest sequence has been completed,
the measurement results can be stored into instrument internal memory.

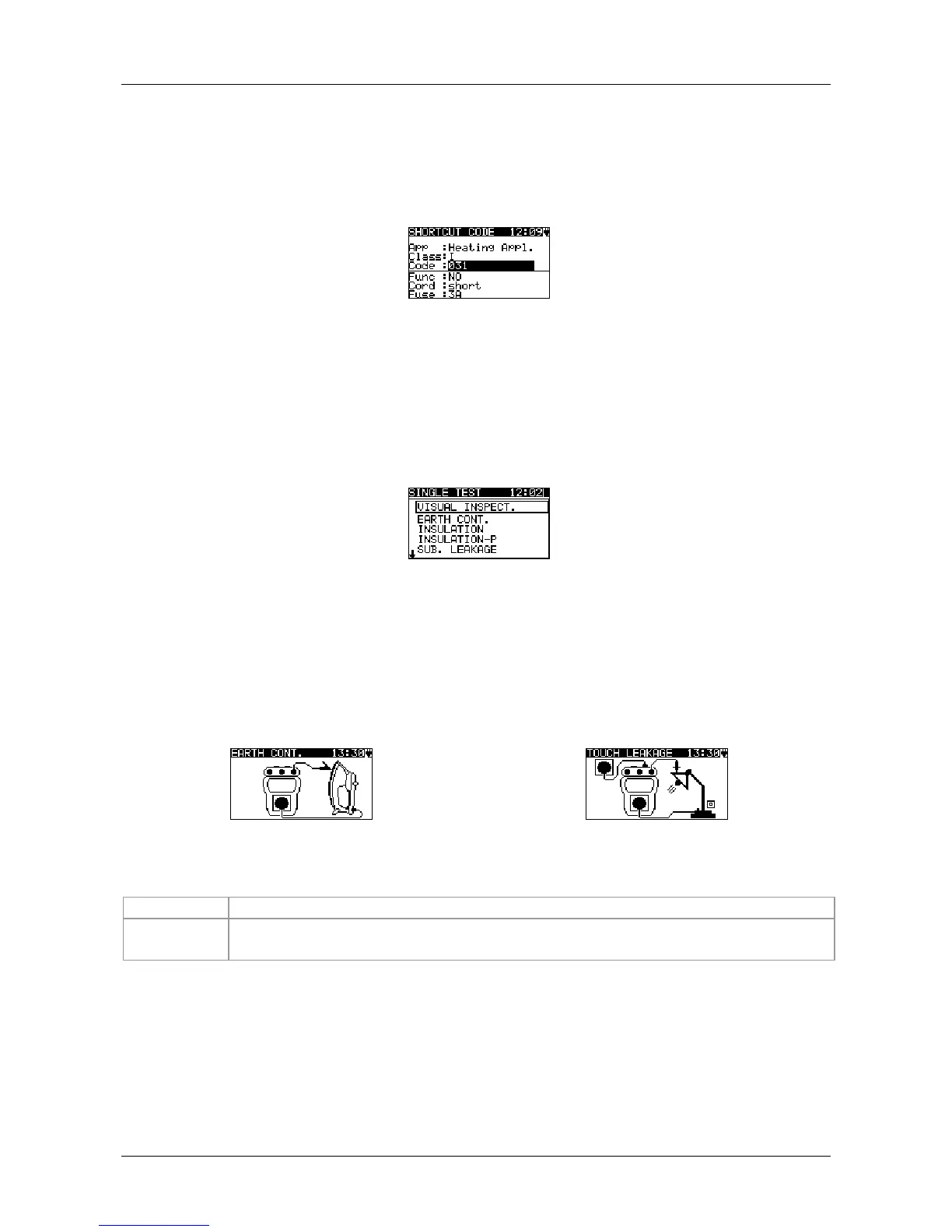

Figure 4.3: Autotest shortcut menu example
See chapter 6.3 Carrying out (Simple, Shortcut) test sequences.
4.4. Single test menu
In single test menu individual tests can be performed.
Figure 4.4: Single test menu
See chapter 5 Single test for more information.
4.5. Help menu
Help menu contains schematic diagrams to illustrate how to correctly connect a device
under test to the PAT testing instrument.
Figure 4.5: Example of help screens
Keys:
/ Selects next / previous help screen.
TEST,
ESC
Returns to Main menu.
4.6. Setup menu
In the Setup menu different parameters and settings of the instrument can be viewed or
set.
