MI 3309 BT DeltaPAT Main menu and test modes
30
Notes:
Symbol is displayed if the compensation was carried out successfully.
The highest value for lead compensation is 5 . If the resistance is higher the
compensation value is set back to default value.
4.6.6. Nominal voltage selection
The DeltaPAT instrument supports testing of 110 V and 230 V portable appliances. For
110 V appliances the substitute leakage current results should be scaled to 110 V.
The appliance nominal voltage can be set in this menu.

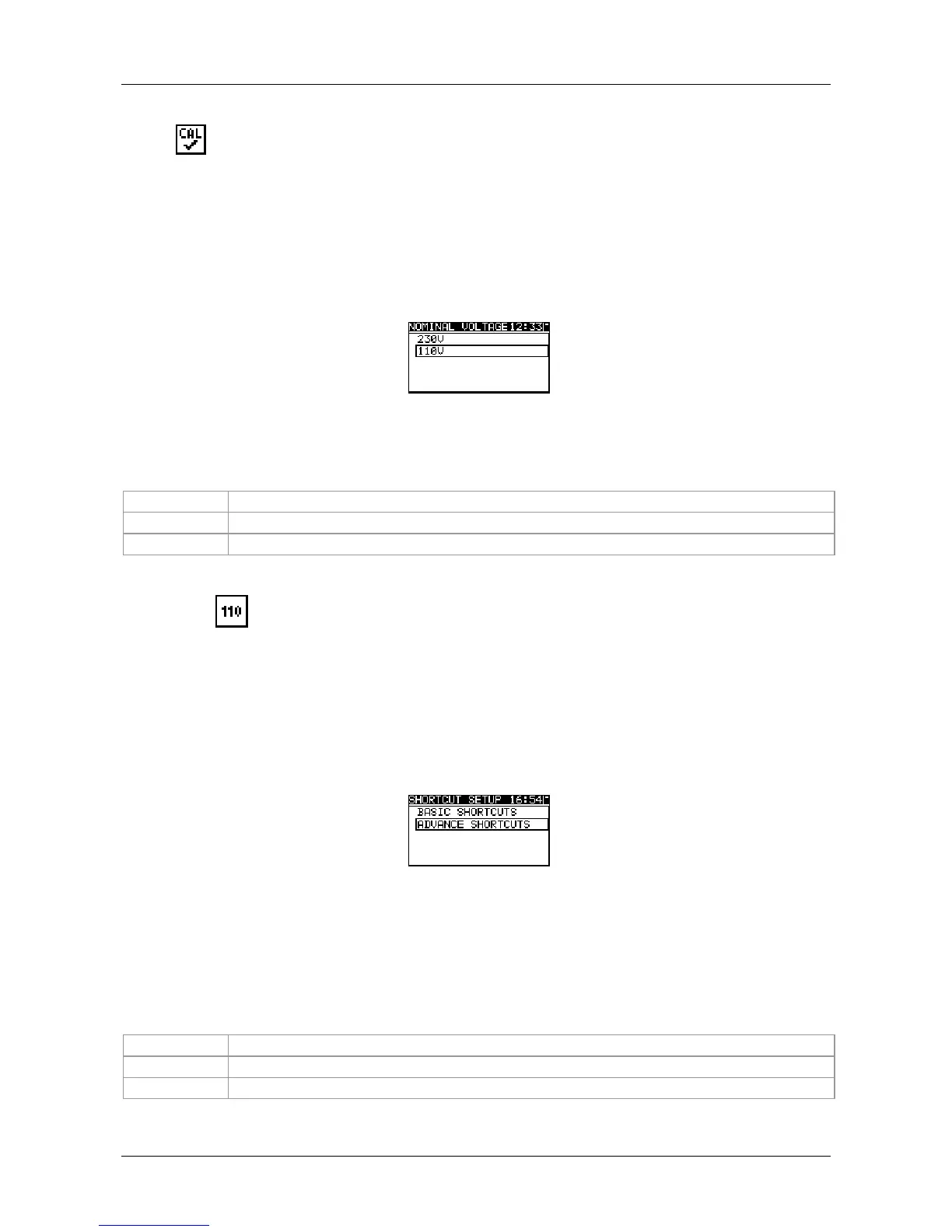

Figure 4.13: Nominal voltage menu
Keys:
/
Selects the appliance nominal voltage.
TEST
Confirms selection and returns to Setup menu.
ESC
Returns to Setup menu without changes.
Note:
The icon is displayed in the Substitute leakage and Substitute leakage-P
screens if the nominal voltage 110 V is set.
The substitute leakage results will be lower if the nominal voltage is set to 110 V!
Take care that the nominal voltage is set correctly!
4.6.7. Shortcut setup
In this menu the available list of available shortcut codes can be set. Basic Shortcuts only
makes the most important shortcuts available in the Shortcut menu while the Advanced
Shortcuts makes all shortcuts available from the Shortcut Menu.
Figure 4.14: Shortcut setup menu
Options:
BASIC
A limited list of (most popular) test sequences is set.
ADVANCED
The complete list of test sequences (supported by METREL) is set.
Keys:
/
Selects the list.
TEST
Confirms selection and returns to Setup menu.
ESC
Returns to Setup menu without changes.
