6.3.9. (P)RCD test
The test is offered if it is applicable according to the autotest setting. The (P)RCD test
starting screen is displayed first.
Measurement and options in (P)RCD test starting screen are described in chapter 5.2.10
RCD test.

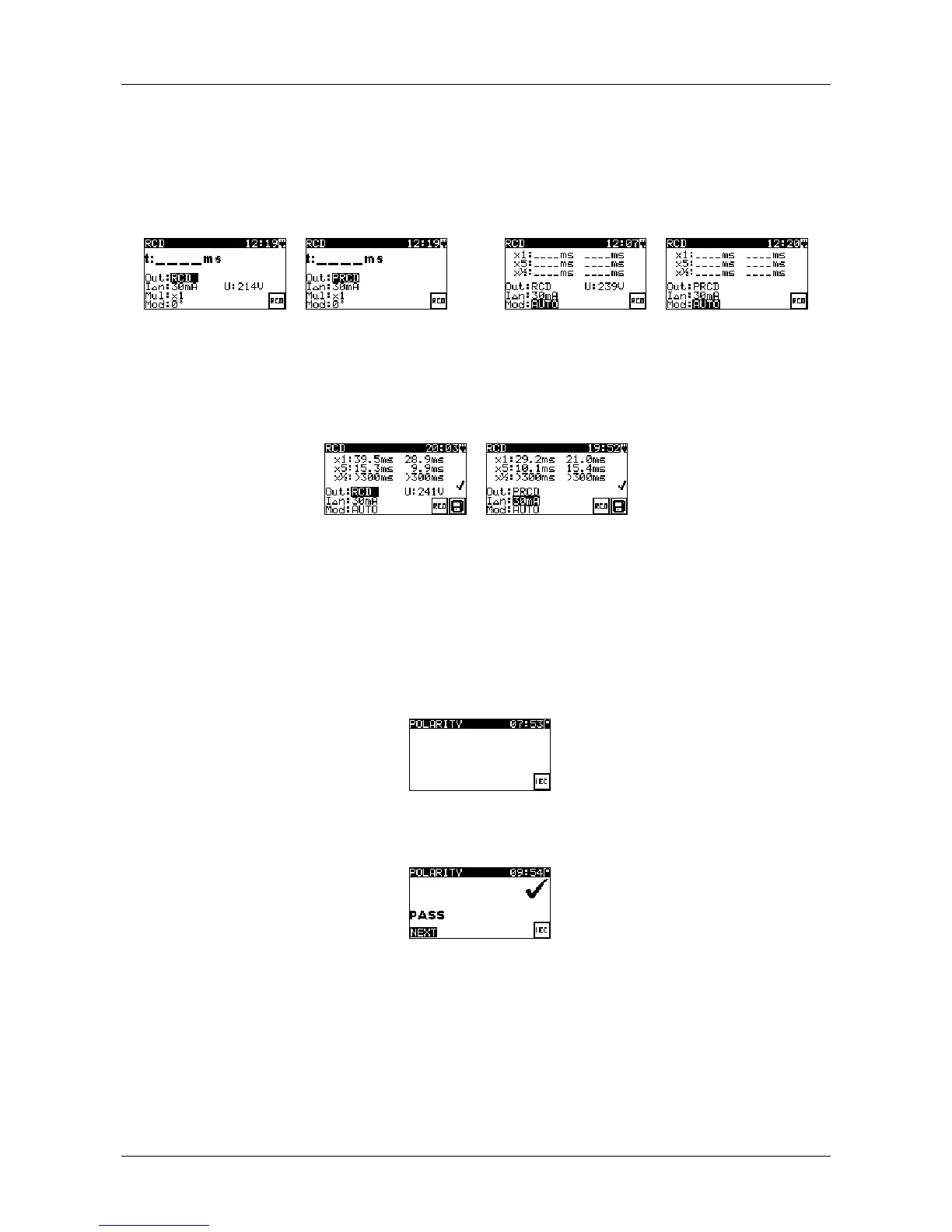

(P)RCD single test menus (P)RCD autotest menu
Figure 6.19: (P)RCD test starting screen
After the measurement is carried out the (P)RCD test result screen is displayed.
Figure 6.20: Example of Custom / Code Autotest – (P)RCD test result screen
There are no special options to be set in the (P)RCD result screen.
6.3.10. Polarity test
The test is offered if it is applicable according to the autotest setting. The Polarity test
starting screen is displayed first. Measurement and options in Polarity test starting screen
are described in chapter 5.2.7 Polarity test.
Figure 6.21: Polarity test starting screen
After the measurement is carried out the Polarity test result screen is displayed.
Figure 6.22: Polarity test result screen
There are no special options to be set in the Polarity test result screen.
6.3.11. Power test
The test is offered if it is applicable according to the autotest setting. The Power starting
screen is displayed first. Measurement and options in Power starting screen are described
in chapter 5.2.11 Power test.
