MI 3309 BT DeltaPAT Measuring 110 V appliances
74
9. Measuring 110 V appliances
The DeltaPAT instrument allows measurements to be performed on 110 V appliances.
When the 110 V adapter is used only the following measurements can be performed:
 Earth continuity resistance,
 Insulation resistance,
 Insulation resistance - P,
 Substitute leakage current,
 Substitute leakage current - P.
Other measurements are prohibited in order to prevent damage of the tested appliance.
9.1. How to perform measurements by using 110 V adapter
In order to test 110 V appliances, first plug a 110 V adapter into the main test socket of the
instrument.

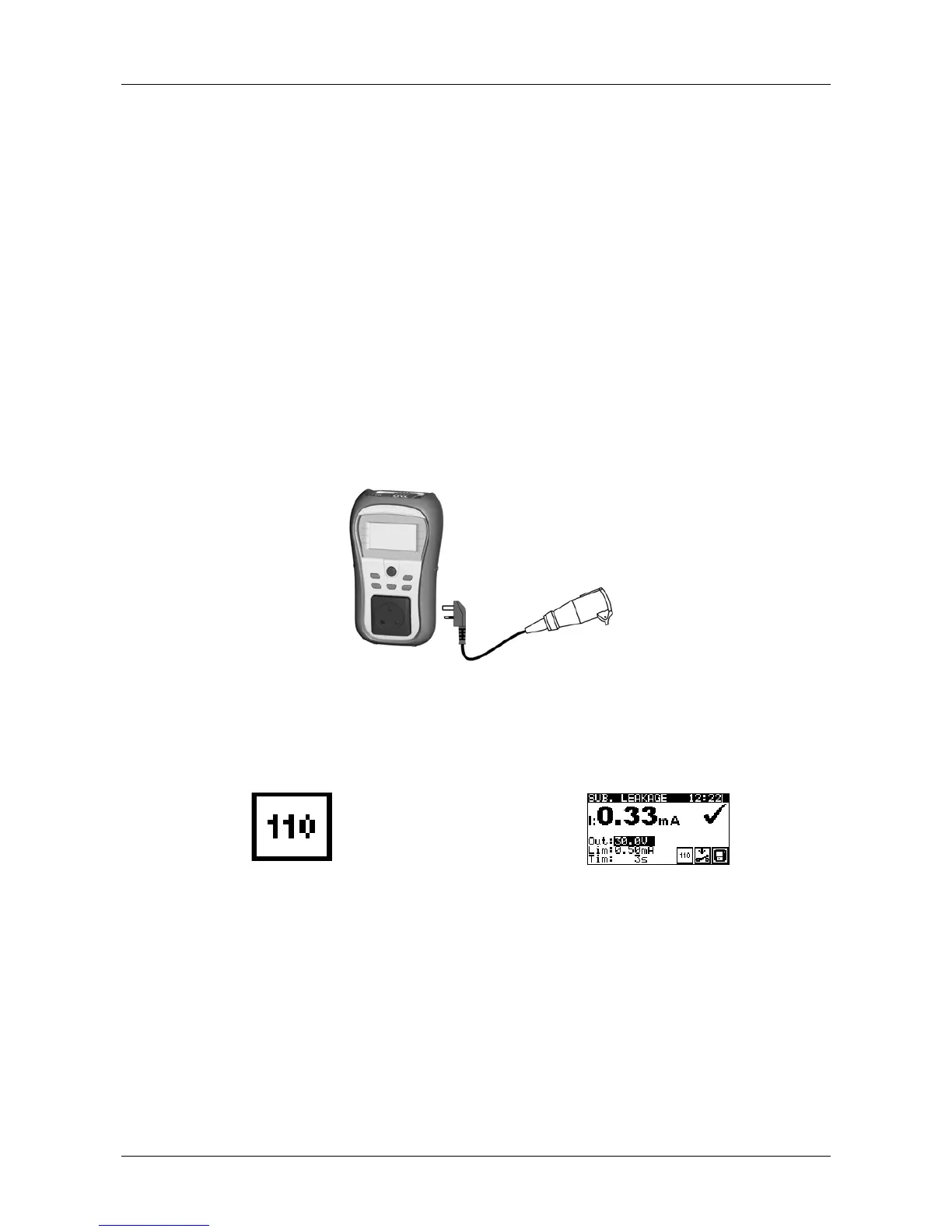

Figure 9.1: Connecting 110 V adapter to the instrument
Select the appliance nominal voltage in the Setup menu (nominal voltage selection).
If the 110 V nominal voltage is selected the following symbol (Figure 9.2) will be displayed
after starting Substitute leakage and Substitute leakage - P measurement.
Figure 9.2: 110 V symbol Figure 9.3: Substitute leakage
screen (110 V)
See chapter 4.6.6 Nominal voltage selection for more information.
Note:
 Ensure correct lead compensation for Earth continuity function, when measuring
110 V appliances, 110 V adapter shall be included in lead compensation.
