MI 3309 BT DeltaPAT Single test
43

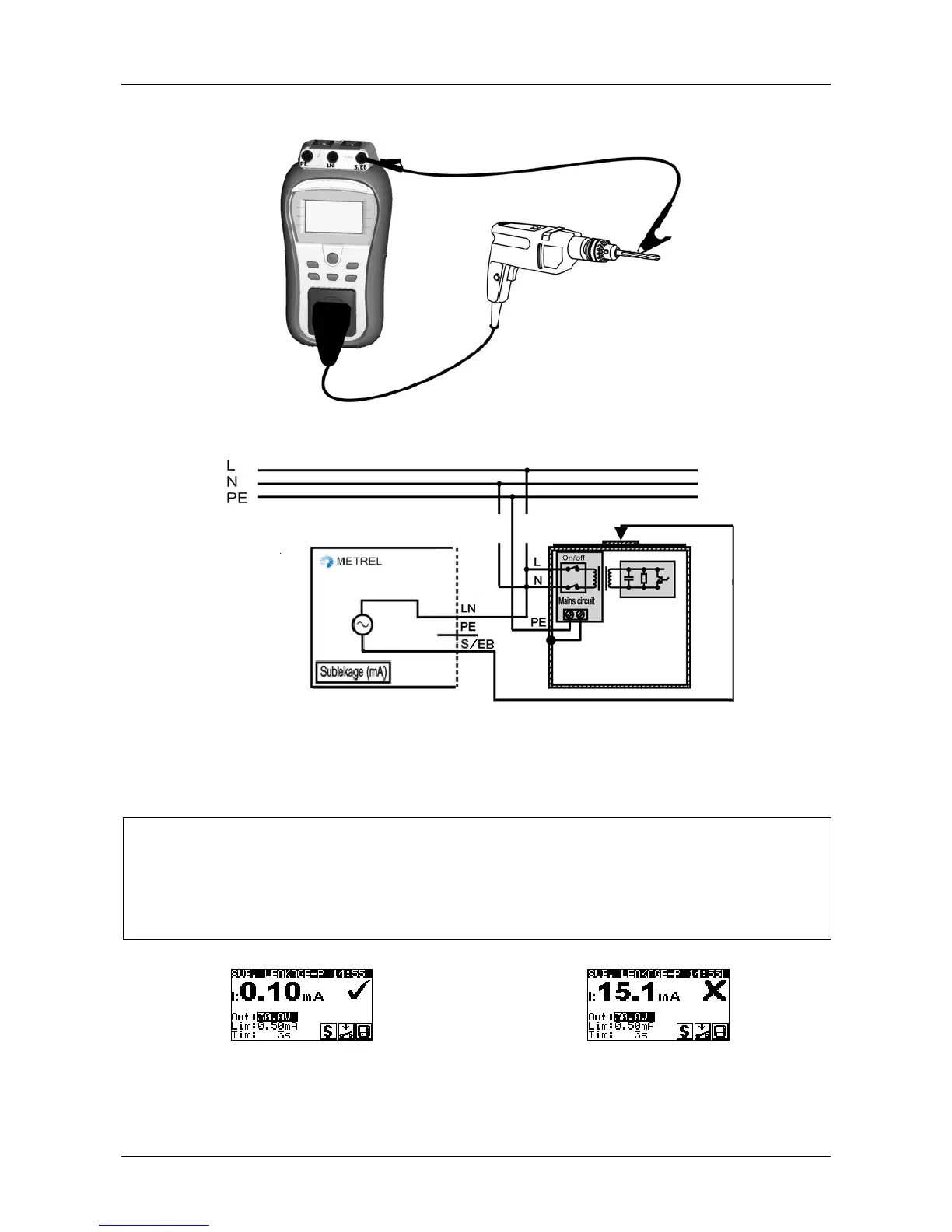

Test circuits for substitute leakage - P measurement
Figure 5.21: Measurement of Substitute leakage - P current
Figure 5.22: Measurement of substitute leakage of accessible isolated conductive parts
of fixed installed DUTs
Substitute leakage - P measurement procedure
 Select the SUB. LEAKAGE-P function.
 Set the test parameters.
 Connect device under test to the instrument (see Figure 5.21 and Figure 5.22).
 Press the TEST key for measurement. To stop continuous measurement press
TEST key once again.
 Store the result by pressing MEM key (optional).
Figure 5.23: Example of substitute leakage - P current measurement results
Displayed results:
Main result…………..Substitute leakage current (LN – P)
