Desired power is connected to output terminals.
18.13.2. Display modes

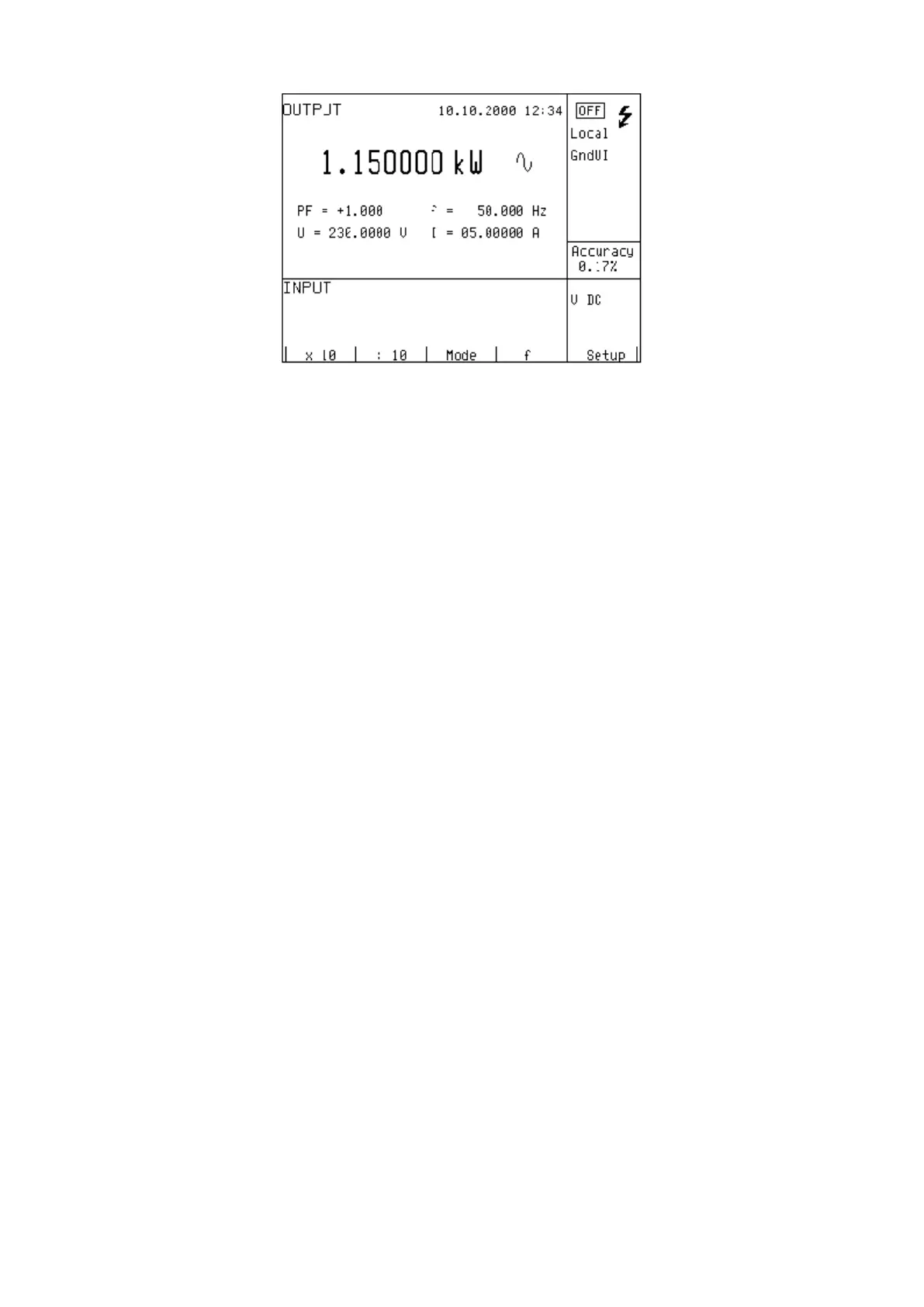

The calibrator can display AC power in one of three ways:
• apparent power in VA
• active power in W
• reactive power in VAr
Keep pressing MODE display button to change the function mode. Along with mode change, the power display
(depending on set power factor) and unit of measurement change as well. If DC power is generated, it is
always displayed in Watts.
The calibrator can display the phase relation of output voltage and current as power factor (–1 to +1) or as
phase shift in degrees (0 to 360 °). SETUP setup menu is used to change the method of displaying the phase
relation.
18.13.3. Power setting modes
The calibrator allows several ways of setting the value of generated power.
1. Setting the main power value
• The main value can be changed using numeric keyboard, changing the digit at the cursor position
after selecting the cursor position with <, > buttons, by range change using „x10“, „:10“ display
buttons, or using the potentiometer.
• Output power is changed by changing the value of output current.
