18.14.2. Setting relative deviation
• Keep pressing the center cursor button until [ _ _ _ _ _ _ _ ] symbols appear under the relative deviation
value ∆% = xx.xxxx %.
• The value can be set using numeric keyboard, potentiometer or cursor buttons. Confirm the value by
pressing “%” display button or by pressing ENTER.

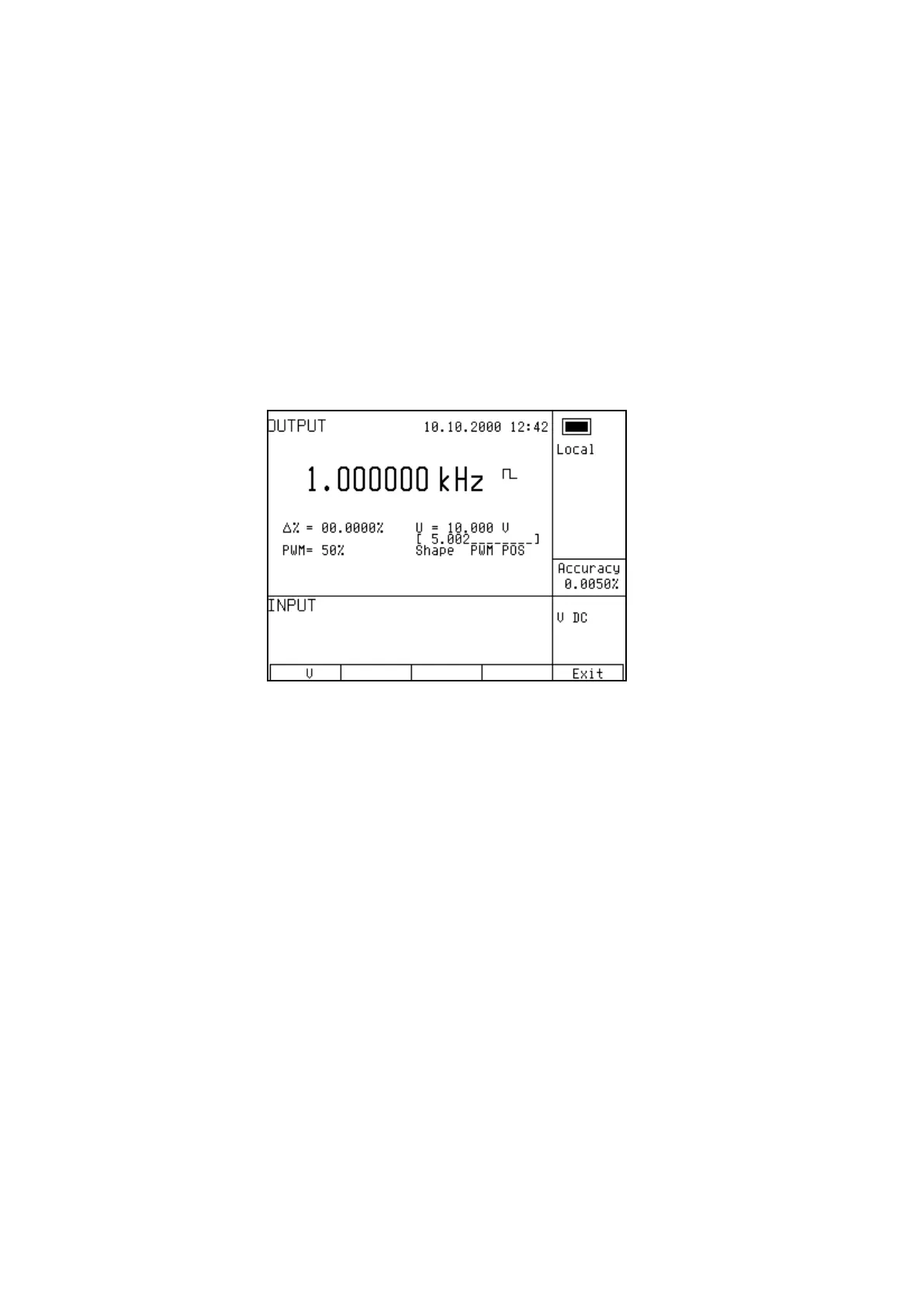

18.14.3. Setting the amplitude
Signal amplitude in Volts can only be set in PWM mode.
• Select the frequency mode and keep pressing the center cursor button until [ _ _ _ _ _ _ _ ] symbols
appear under the amplitude value (U = x.xxx V).
• Set the value using numeric keyboard and confirm by pressing “V” display button or by pressing ENTER.
18.14.4. Setting the attenuation
Signal attenuation in dB can only be set in HF mode. Attenuation can be set in steps of (0, -10, -20, -30) dB.
• Select the frequency mode and keep pressing the center cursor button until [ _ _ _ _ _ _ _ ] symbols
appear under the attenuation value (a = x.xxx dB).
• Set the value using numeric keyboard and confirm by pressing dB display button or by pressing ENTER.
If other than permitted value is set, the closest permitted value is used.
18.14.5. Setting the duty cycle
Duty cycle can only be set in PWM mode.
• Select the frequency mode and keep pressing the center cursor button until [ _ _ _ _ _ _ _ ] symbols
appear under the duty cycle value (PWM = xx %).
• Set the value using numeric keyboard, cursor buttons or potentiometer and confirm by pressing % display
button or by pressing ENTER.
