140-41 cable adapter fitted with separate 7pin connector labeled SENSOR is required. The picture shows the

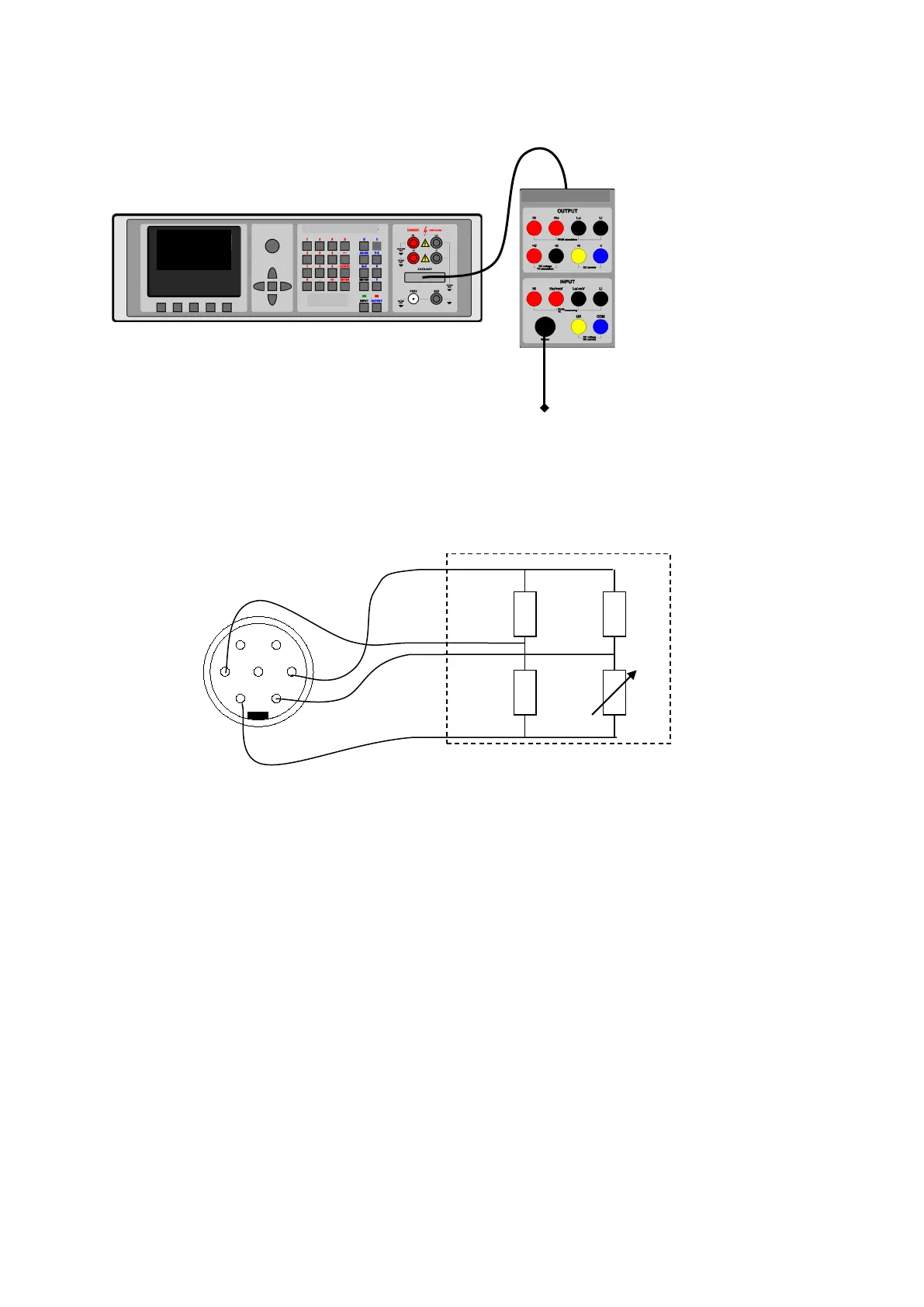

connection of the sensor to the calibrator.
Connection of the sensor to SENSOR connector
Meaning of pins of SENSOR connector:
1 Voltage signal output of the bridge
2 Power supply + power to the bridge
3 Not connected
4 Not connected
5 Voltage signal output of the bridge
6 Power supply - power to the bridge
7 Shielding
SGS sensor
SENSOR connector
1
2
3
4
5
6
7
SGS sensor
