3 R 74 en 23

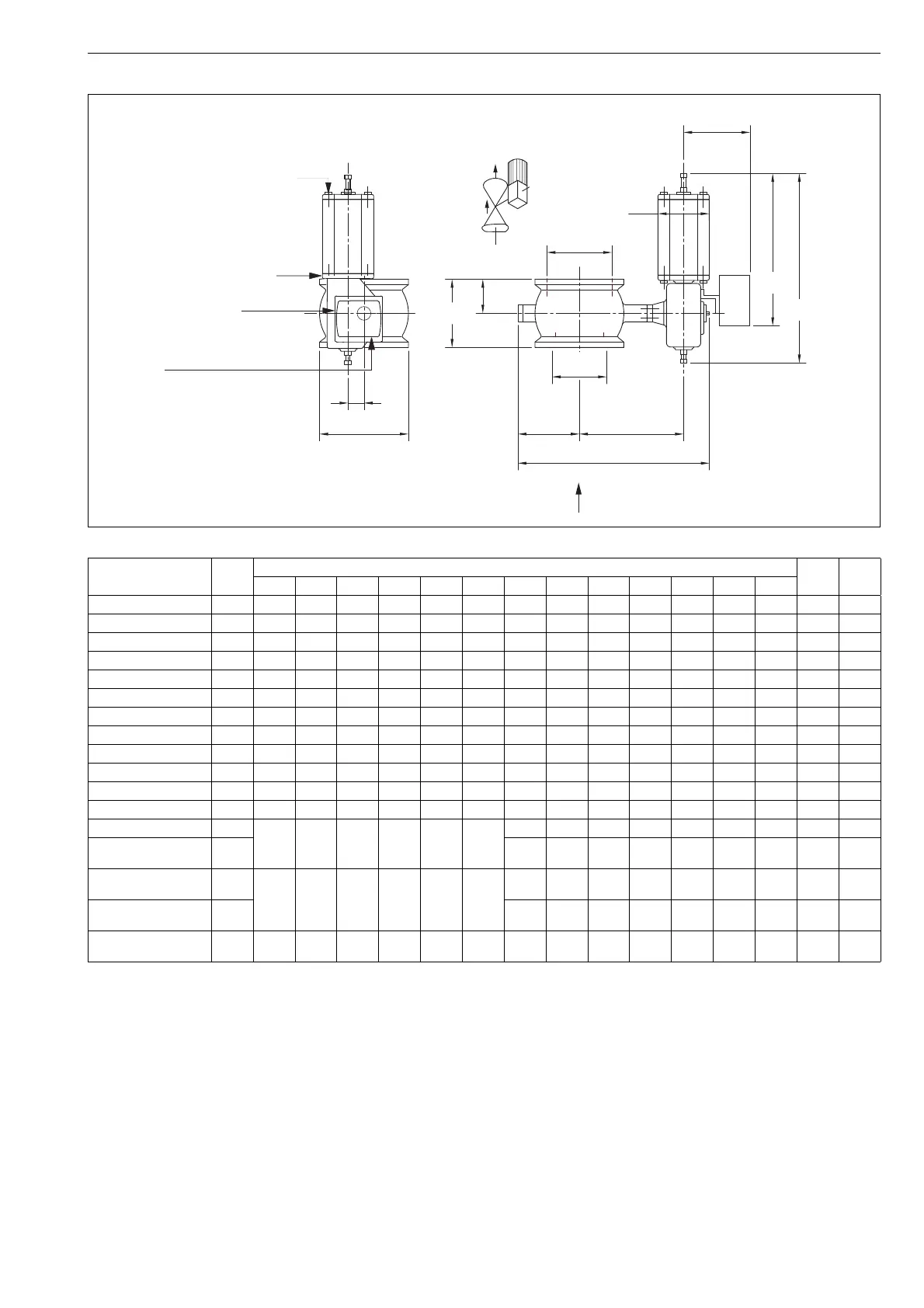

11.5 RA - B1J, B1JA
1) Supply pressure BJ 4 bar / BJA 5 bar
F
V
øB
NPT
J
H
C
FLOW DIRECTION
MOUNTING POSITION A-VU (STANDARD)
øD
DN
A1
A
I max
G
X
SUPPLY 1/4 NPT
SIGNAL M20 X 1.5 CABLE GLAND
NPT
Type
Max
Δp
1)
Dimensions, mm
NPT kg
DN A A1 øB C øD F G X V J H I
max
RA_025-B1J6 50/50 25 50 21 64 56 33 485 368 110 36 166 291 280 3/8 14
RA_040B1J6 50/50 40 60 21 82 65 49 485 368 110 36 173 306 280 3/8 15
RA_050-B1J6 50/50 50 75 27 100 91 60 485 368 110 36 183 343 280 3/8 16
RA_065-B1J6 50/50 65 100 40 118 97 75 485 368 110 36 193 358 280 3/8 18
RA_080B1J6 50/50 80 100 38 130 108 89 485 368 110 36 198 374 280 3/8 19
RA_100-B1J6 50/50 100 115 41 158 120 113 485 368 110 36 208 398 280 3/8 22
RA_025-B1J8/B1JA8 50/50 25 50 21 64 56 33 555 420 135 43 168 293 305 3/8 19
RA_040-B1J8/B1JA8 50/50 40 60 21 82 65 49 555 420 135 43 175 308 305 3/8 20
RA_050-B1J8/B1JA8 50/50 50 75 27 100 91 60 555 420 135 43 185 345 305 3/8 21
RA_065-B1J8/B1JA8 50/50 65 100 40 118 97 75 555 420 135 43 195 360 305 3/8 23
RA_080-B1J8/B1JA8 50/50 80 100 38 130 108 89 555 420 135 43 200 376 305 3/8 24
RA_100-B1J8/B1JA8 50/50 100 115 41 158 120 113 555 420 135 43 210 400 305 3/8 27
RA_150-B1J8/B1JA8 10/25 150 160 55 216 174 164 555 420 135 43 258 500 305 3/8 41
RA_150-B1J10/
B1JA10
40/40 650 490 175 51 275 530 225 3/8 55
RA_200-B1J10/
B1JA10
15/25 200 200 70 268 201 205 650 490 175 51 310 590 310 3/8 75
RA_200-B1J12/
B1JA12
32/35 800 620 215 65 324 635 235 1/2 100
RA_250-B1J16/
B1JA16
35/35 250 240 85 324 251 259 990 760 265 78 373 760 340 1/2 170
