Metso Neles R series User Manual

3 R 74 en 25

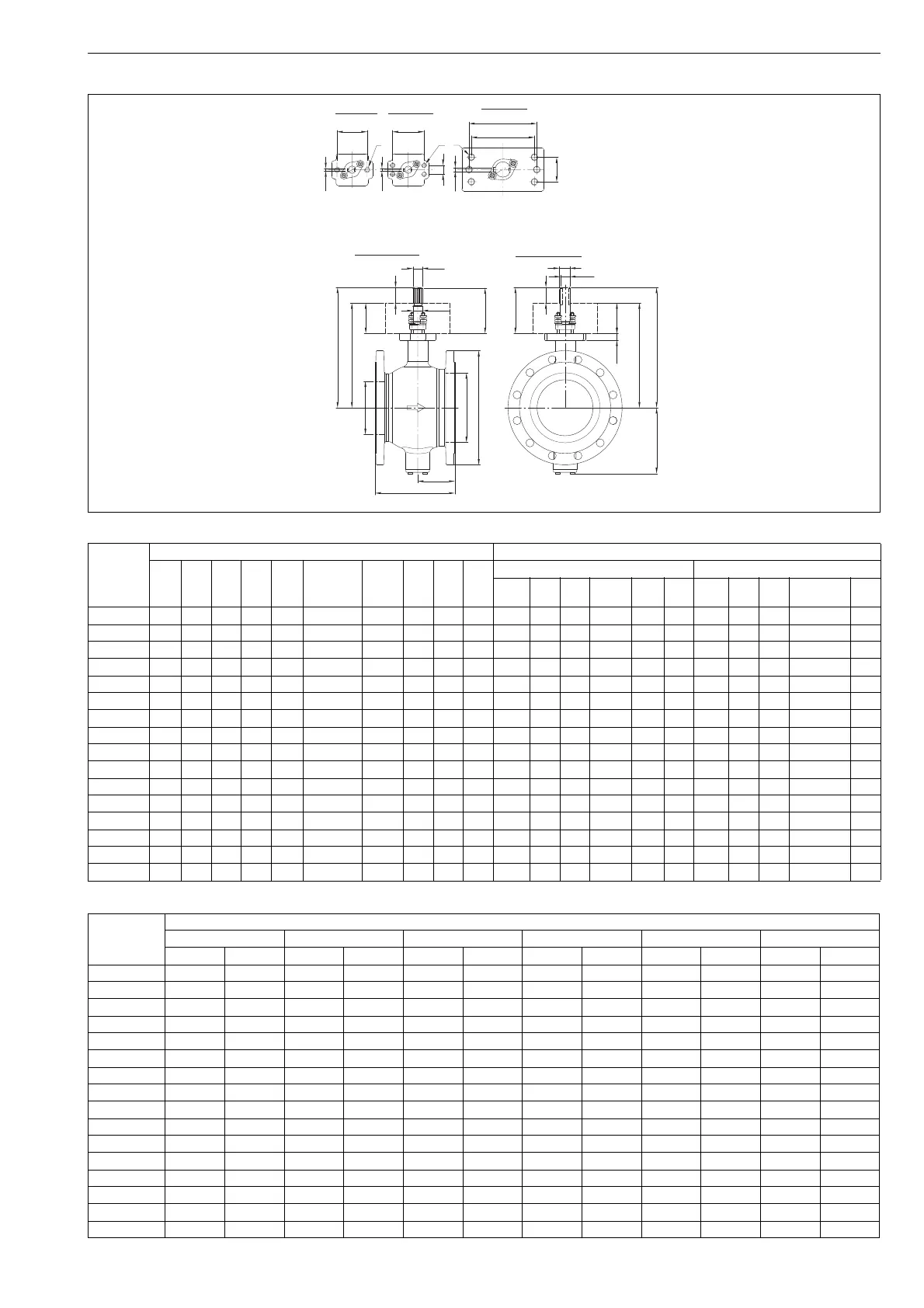

11.7 Series RE
DN150...500DN25...100
RE_ A DN25...700
(KEY)
(SPLINES)
RE_E DN25...400
DN600...700
DN
E
R
(L)
ØD
ØB
K
N
P
ØO
S
U
S
M
U
T
H
M
N1
K
E1
R1
H
P1
ØO1
S
S2
M
T
U
A1
Valve is shown in closed position
C
A
DN / inch
Dimensions, mm Shaft dimensions, mm
A1 A C ØD K S/S2 T U L H
RE_A (Key) RE_E (Splines)
E R ØO M P N E1 R1 ØO1
P1/
DIN5480
N1
25 / 1" 51 102 56 33 182 70 - M10 15.5 80 207 105 15 4.76 17 25 203 101 15 W14x1x12 20
40 / 1 1/2" 57 114 65 49 188.5 70 - M10 15.5 80 213.5 105 15 4.76 17 25 209.5 101 15 W14x1x12 20
50 / 2" 62 124 91 60 199.5 70 - M10 15.5 80 224.5 105 15 4.76 17 25 219.5 100 15 W14x1x12 20
65 / 2 1/2" 72.5 145 97 75 206 70 - M10 15.5 80 231 105 15 4.76 17 25 226 100 15 W14x1x12 20
80 / 3" 82.5 165 108 89 232 90 - M12 16 90 267 125 20 4.76 22.2 35 253 111 20 W14x1x12 20
100 / 4" 97 194 120 113 241 90 - M12 16 90 276 125 20 4.76 22.2 35 262 111 20 W18x1x16 20
150 / 6" 114.5 229 174 164 290 110 32 M12 22 90 335 135 25 6.35 27.8 46 315 115 25 W25x1x24 25
200 / 8" 111.5 243 201 205 345 130 32 M12 22 110 395 160 30 6.35 32.9 51 370 135 30 W25x1x24 25
250 / 10" 138.5 297 251 259 387 130 32 M12 26 110 445 168 35 9.53 39.1 58 422 145 35 W34x1x32 35
300 / 12" 154 338 269 300 417 160 40 M16 26 120 485 188 40 9.53 44.2 68 452 155 40 W34x1x32 35
350 / 14" 175 400 311 350 433 160 40 M16 29 120 513 200 45 12.70 50.4 80 468 155 45 W34x1x32 35
400 / 16" 160 400 353 400 494 160 55 M20 29 140 584 230 50 12.70 55.5 90 529 175 50 W34x1x32 35
500 / 20" 233 508 420 500 615 230 90 M27 40 180 727 292 70 19.05 78.2 119 - - - - -
600 / 24'' 355 610 490 600 704 330/304.7 120 M30 40 220 838 354 75 19.05 81.9 134 - - - - -
700 / 28'' 295 710 539 700 768 330/304.7 120 M30 55 220 914 366 85 22.225 95.3 146 - - - - -
800 / 32'' 380 840 635 800 871.5 330/304.7 120 M30 55 220 1052 402 105 25.4 114.4 180 - - - - -
DN / inch
Flange dimensions, mm, and weights
REC ASME 150 RED ASME 300 REJ PN10 REK PN16 REL PN25 REM PN40
BkgBkgBkgBkgBkgBkg
25 / 1" 110 3.6 125 4.9 115 4.6 115 4.6 115 4.6 115 4.6
40 / 1 1/2" 125 4.6 155 7.5 150 6.2 150 6.2 150 6.2 150 6.2
50 / 2" 150 7.4 165 9.5 165 8.8 165 8.8 165 8.8 165 8.8
65 / 2 1/2" 180 13 190 13 185 13 185 13 185 13 185 13
80 / 3" 190 14 210 19 200 16 200 16 200 16 200 16
100 / 4" 230 21 255 29 220 18 220 18 235 21 235 21
150 / 6" 280 39 320 54 285 37 285 37 300 42 300 42
200 / 8" 345 62 380 83 340 56 340 60 360 64 375 71
250 / 10" 405 95 445 132 395 90 405 91 425 101 450 125
300 / 12" 485 143 520 203 445 124 460 130 485 166 515 189
350 / 14" 535 194 585 290 505 174 520 182 555 248 580 275
400 / 16" 595 249 650 364 565 223 580 235 620 314 660 361
500 / 20" 700 453 775 595 670 375 715 468 730 486 755 549
600 / 24'' 815 853 915 1051 780 791 840 899 845 910 890 1007
700 / 28'' 925 1260 1035 1535 895 1134 910 1146 960 1243 1145 1338
800 / 32'' 1060 1850 1150 - 1102 1550 1025 1570 1085 1790 - -
