Operating Instructions Synchroprint 5000
Operating instructions SP5000 V1-0.docx Page 20 of 52
7.9. Print Stations
The print stations are used for printing individual colours on to textiles/garments. The Synchroprint
may be ordered with a maximum of up to 18 print stations. Two different types of print stations are
possible:
 Manual Version: The screen positioning is manually made by hand wheel.
 Automatic Version: The screen positioning is made automatic by stepping motors. Different
positions can be saved and reloaded.
The following sections include a detailed description of the individual components.

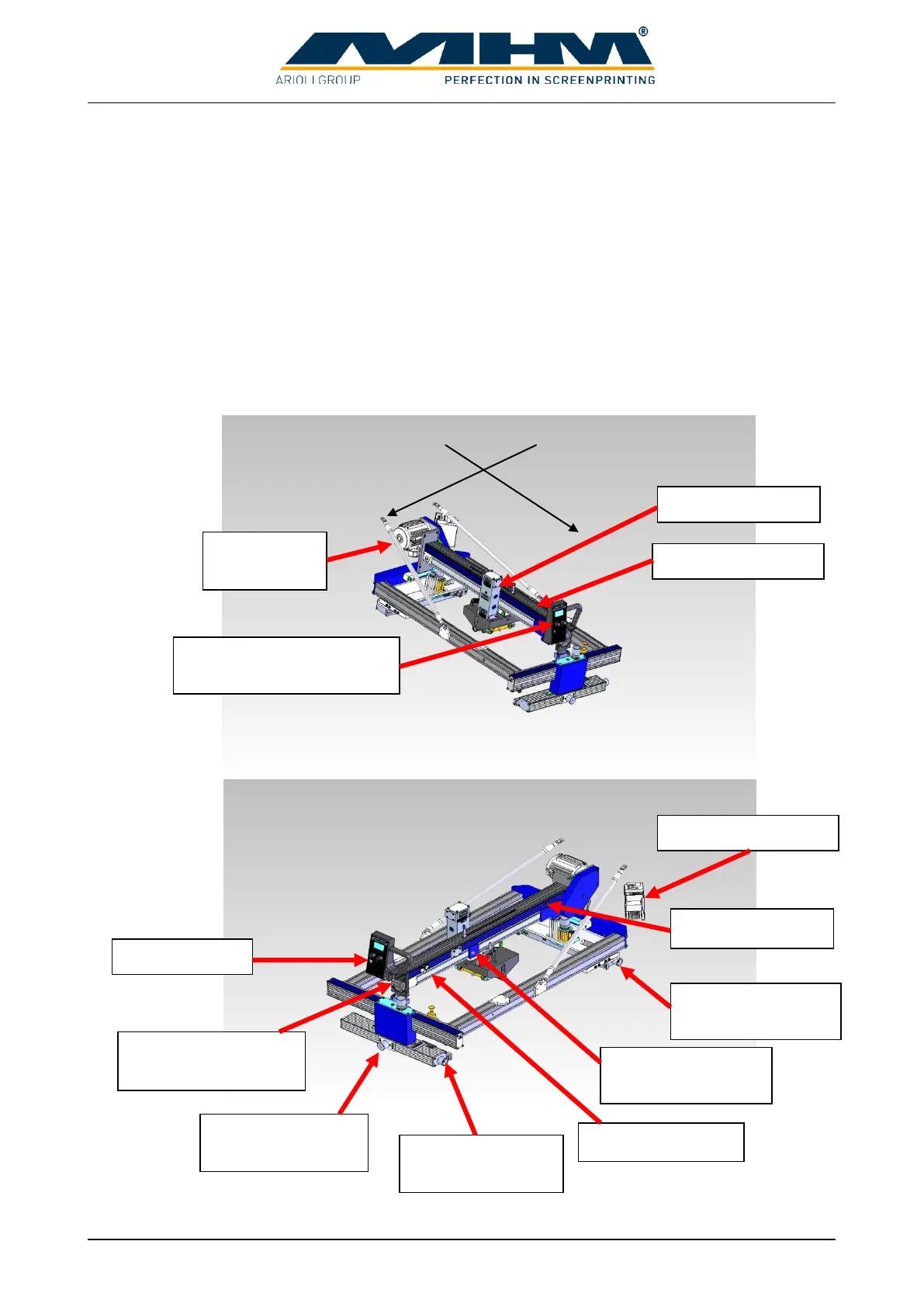

7.9.1. Overview Manual Print Stations
Screen adjustment
Left/right - rear
X-axis
Y-axis
Dryer connector
Squeegee
drive motor
Frequency converter
Screen adjustment
Left/right - front
Squeegee/print arm
Squeegee carriage
Screen adjustment
Forward/backward
Control keypad
Squeegee/print arm
lock-down
Squeegee carriage speed
controls
Squeegee stroke
length adjustment
Pressure control
