7.9.2. Part description Manual Print Station
Squeegee Arm Motor
The squeegee/print arm motor is used to drive the squeegee carriage back and forth, controlled
precisely by the frequency converter.
Frequency Converter
The frequency converter controls the squeegee drive motor. The motor and frequency converter
have already been adjusted by MHM, and no further adjustment should be necessary.
Squeegee/print arm
The squeegee carriage, squeegee stroke length adjustment, the control keypad and the pressure
control are all located on the squeegee arm.
Dryer connector

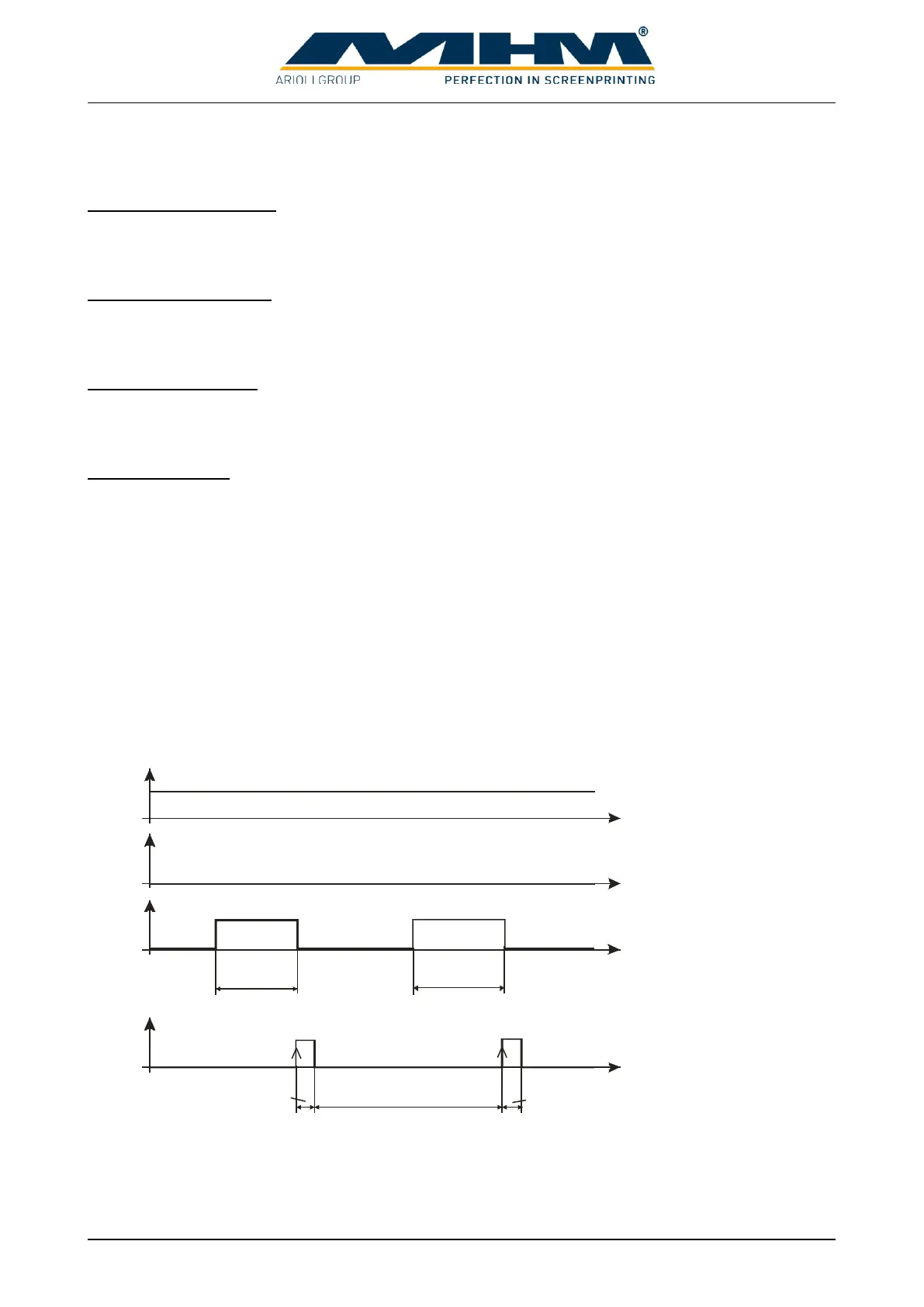

The dryer connector is used to control external units like intermediate dryers or flock units. To start
the unit a 24V Signal is set on Pin 5. The duration of drying can be controlled internal by the
machine or external by the external unit. At external control a complete signal must be set at Pin 2
when the unit has finished. The system is detecting the positive edge of the complete signal. A
continuous complete signal will not work.
The following pin assignment is given:
 Pin 2: IN ready signal
 Pin 3: GND
 Pin 5: OUT run/start signal
 Pin 6: Auto detect
 Pin 7: +24V
