7.9.4. Squeegee Carriage
The squeegee carriage is equipped for
two squeegees. Pulling the black
‘quick release’ knob (pic. opposite)
will release the respective squeegee.
Make sure that these locking knobs
engage fully when loading the
squeegee. The maximum permitted
squeegee width must be observed.

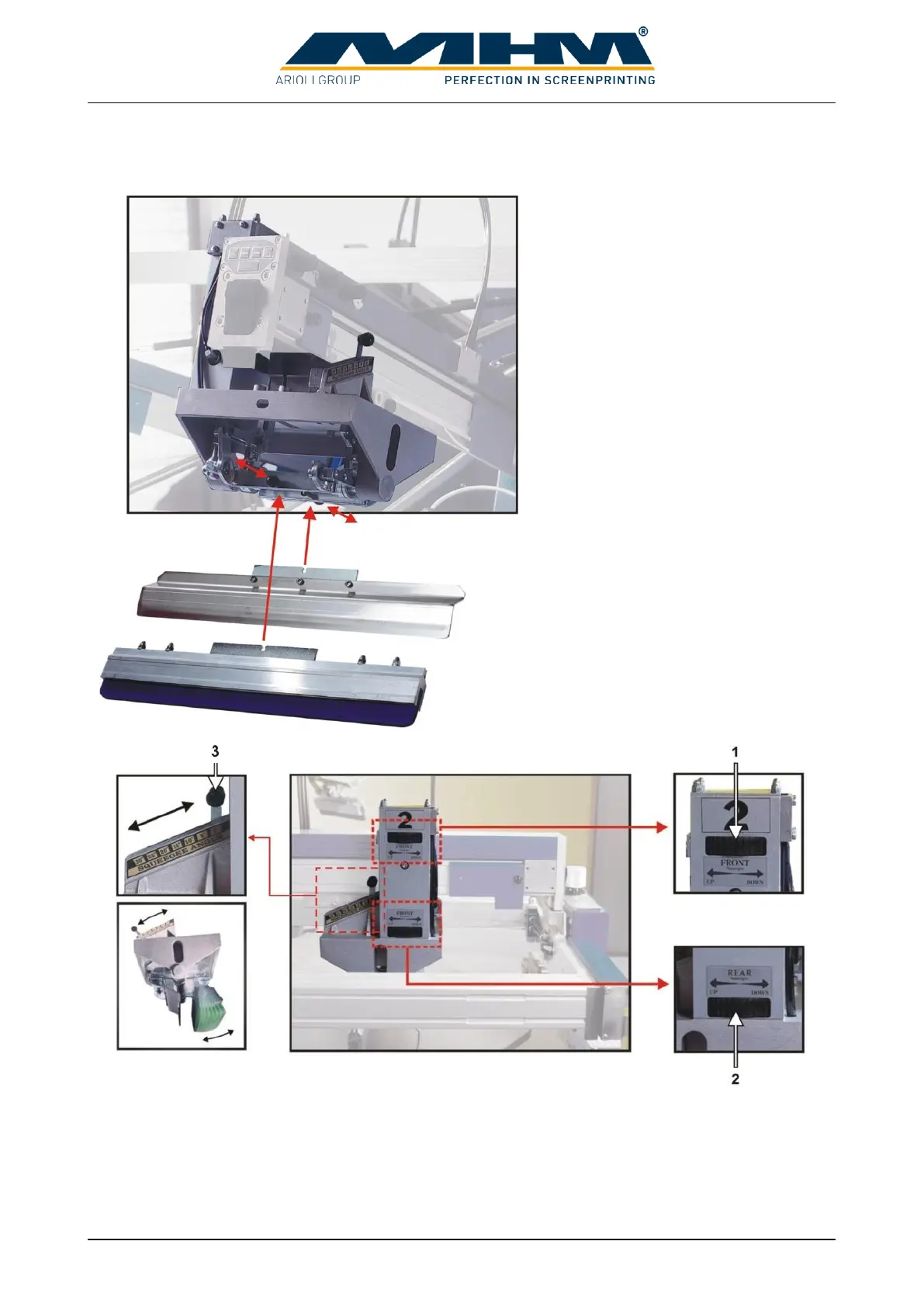

Squeegee height may be adjusted individually by the hand wheels (pic. 1 + 2). Squeegee angle may
also be adjusted individually by the sliding levers (pic. 3). Squeegee pressure may be adjusted by an
adjusting knob located on the squeegee arm.
