3.4.3 Alarm Set-Point Limit Confi guration
P
SET
SET
x4
SET
SET
P
Main display
Main display
Set alarm setpoint lower limitSet span alarm setpoint upper limit
The following procedure is used to set limits to
which the alarm levels can be set (usually after re-
confi guring the instrument’s range for Fahrenheit
readings).
Figure 28
shows the operational key sequence.
1. Press the
P key once, the display will read
tECH.
2. Press the
SET key once and the display will
fl ash between
ConF and PinP.
3. Press the key four times and the display
will fl ash between
ConF and GEnn.
4. Press the
SET key once, the display will read
SU-L.
5. Press the key once to display a fl ashing
4 digit number representing the current
minimum alarm level setting. (The default
setting for the °C range is -100.0).
6. Use the and keys to set the required
new value (e.g. -148.0).
7. Press the
SET key to accept the new value.
The display will read
SU-u.
8. Press the key once to display a fl ashing
4 digit number representing the current
maximum alarm level setting. (The default
setting for the °C range is 020.0)
9. Use the and keys to set the required
new value (e.g. 068.0).
10. Press the
SET key to accept the new value,
followed by the P key to return to the main
display.

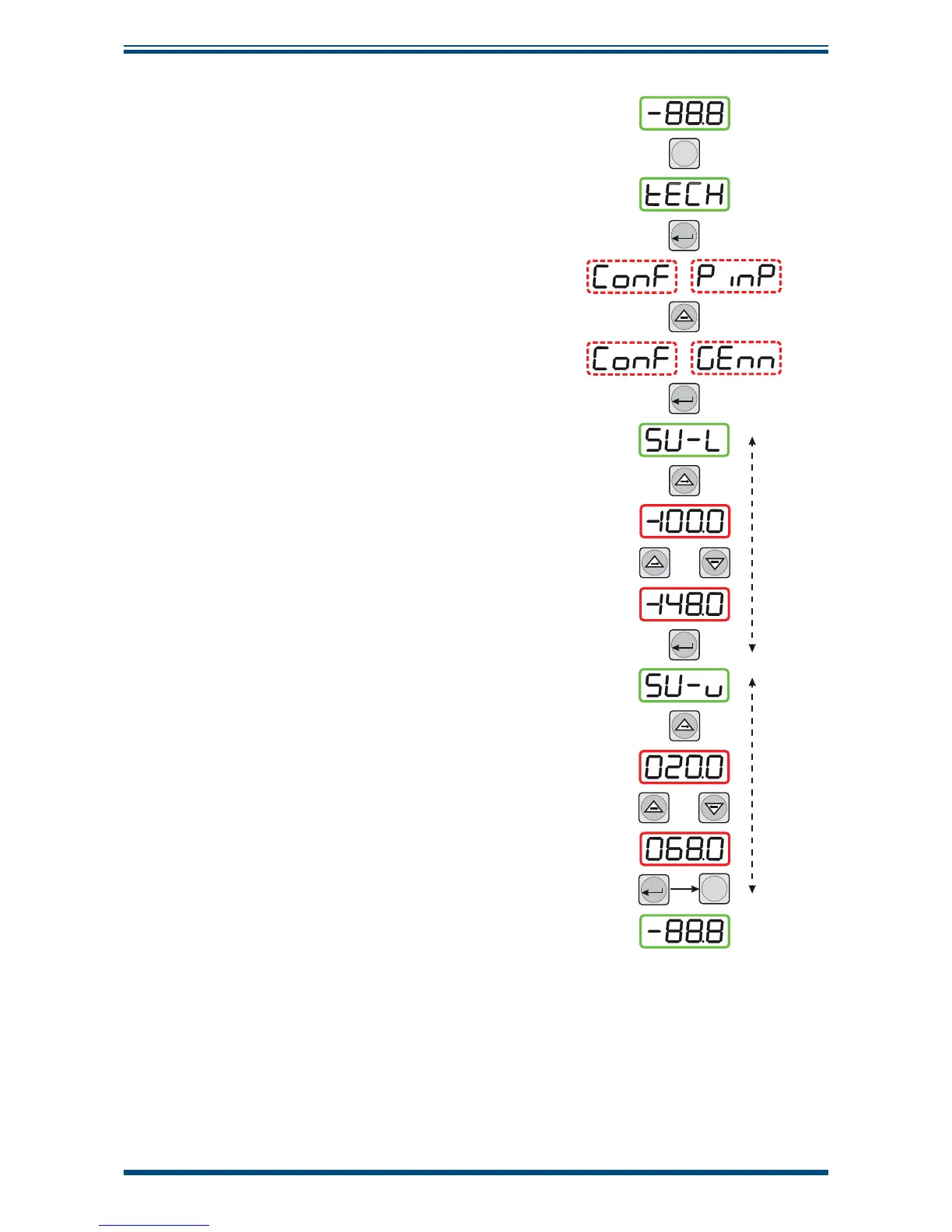

Figure 28
Set-up Alarm Set-Point Limits
To Next Page
