APPENDIX A
A.1 Dimensions
132mm
(5.19”)
46mm
(1.81”)
10mm
(0.39”)
10mm
(0.39”)
h
h
h
g
g
g
ø27mm
(1.06”)
5/8” 18 UNF
g
5/8” Bonded SealTransmitter
ø25.4 x 2mm
(ø1 x 0.07”)
Sample Block
55.2mm
2.2”
27 A/F
30mm
1.18”
5/8”-18 UNF
5/8”-18 UNF
1/8” NPT
1/8” NPT
h
h
h
h
ø30mm
ø1.18”
48mm
(1.9”)
96mm
(3.7”)
76mm
(3”)
h
h
h
h
h
h
94mm
(3.7”)
h
h
92mm
(3.6”)
h
h
46mm
(1.8”)
h
h
44mm
(1.73”)
h
h
Monitor
OVERLAY
Easidew Online Hygrometer
SIDE VIEW
TOP VIEW
FRONT VIEW
10.5mm
(0.41”)
h
h

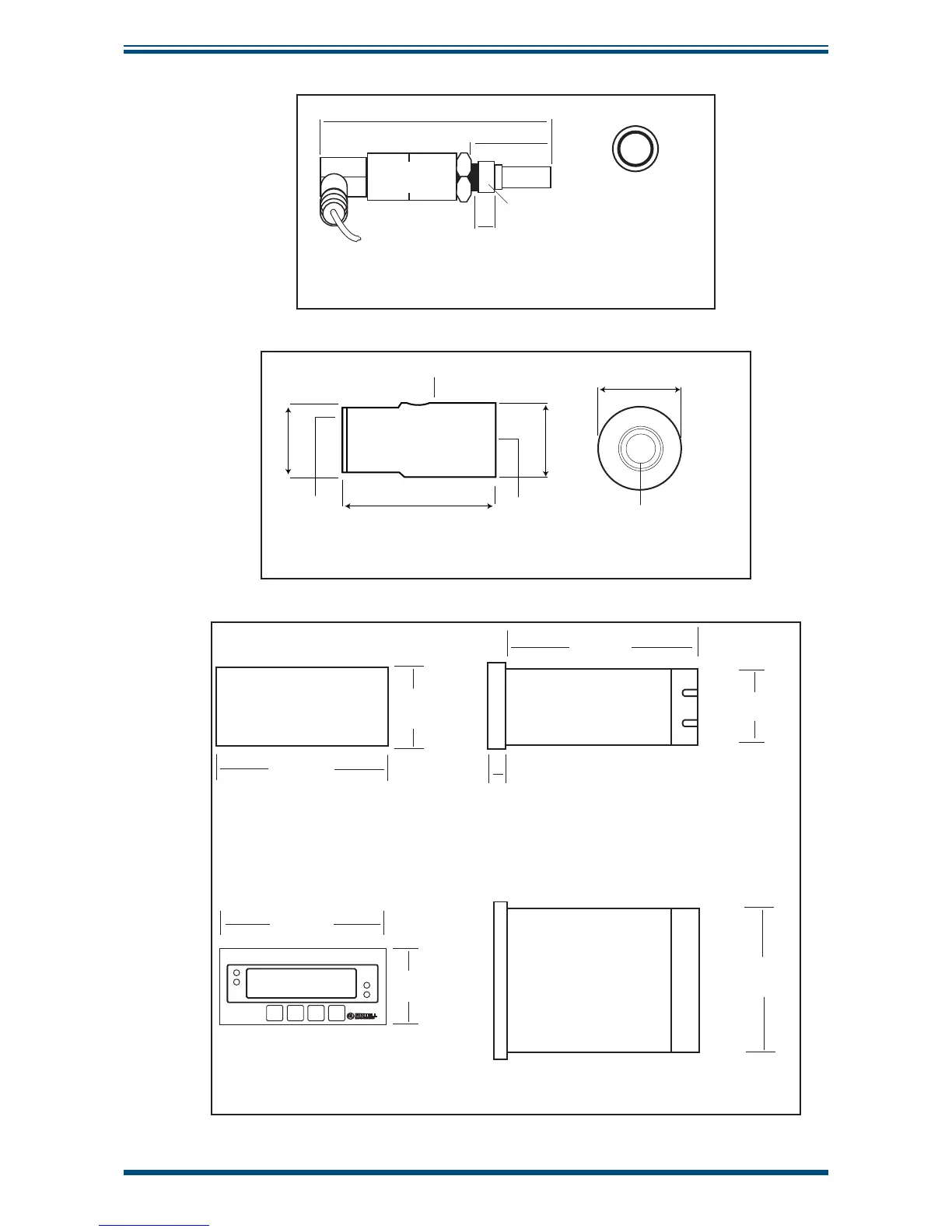

Figure 33 Dimensions
