INSTALLATION
2.1.1 Wall Mounting
The instrument is housed in an aluminum or stainless steel Exd enclosure suitable for
wall or panel mounting. Two mounting points are available with ø7mm (ø0.3”) clearance
holes on fi xing centers 127mm (5”) apart. Use 2 off max 6.5mm (0.25”) diameter
mounting fasteners with a minimum length of 35mm (1.4”).
The enclosure provides environmental ingress protection IP66/NEMA4 and should be
mounted vertically in a location free of any appreciable vibration. It is good engineering
practise to place it in a shaded position to prevent heating effects through solar radiation.
Conduit entries can accept connection for threaded rigid metal conduit or other wiring
methods in accordance with Article 501 of the National Electrical Code ANSI/NFPA
70-latest version and IEC/EN 60079-14:latest version.
108 mm 127 mm

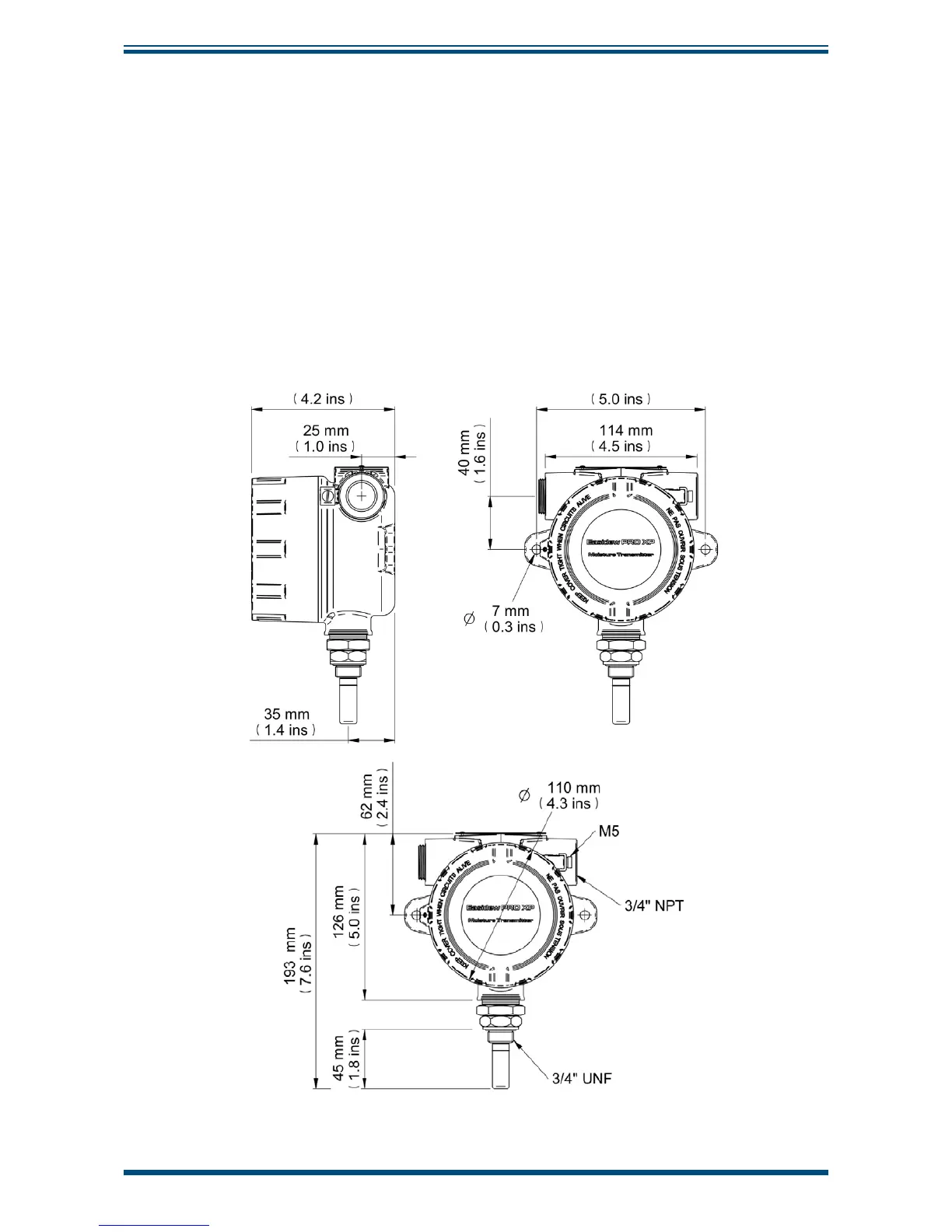

Figure 2 Dimensions Easidew PRO XP EX1 (Non-Display) - Wall Mounting
