Easidew PRO XP User’s Manual
30 97442 Issue 5, May 2018
APPENDIX D
C.4 Re-Confi guration Steps

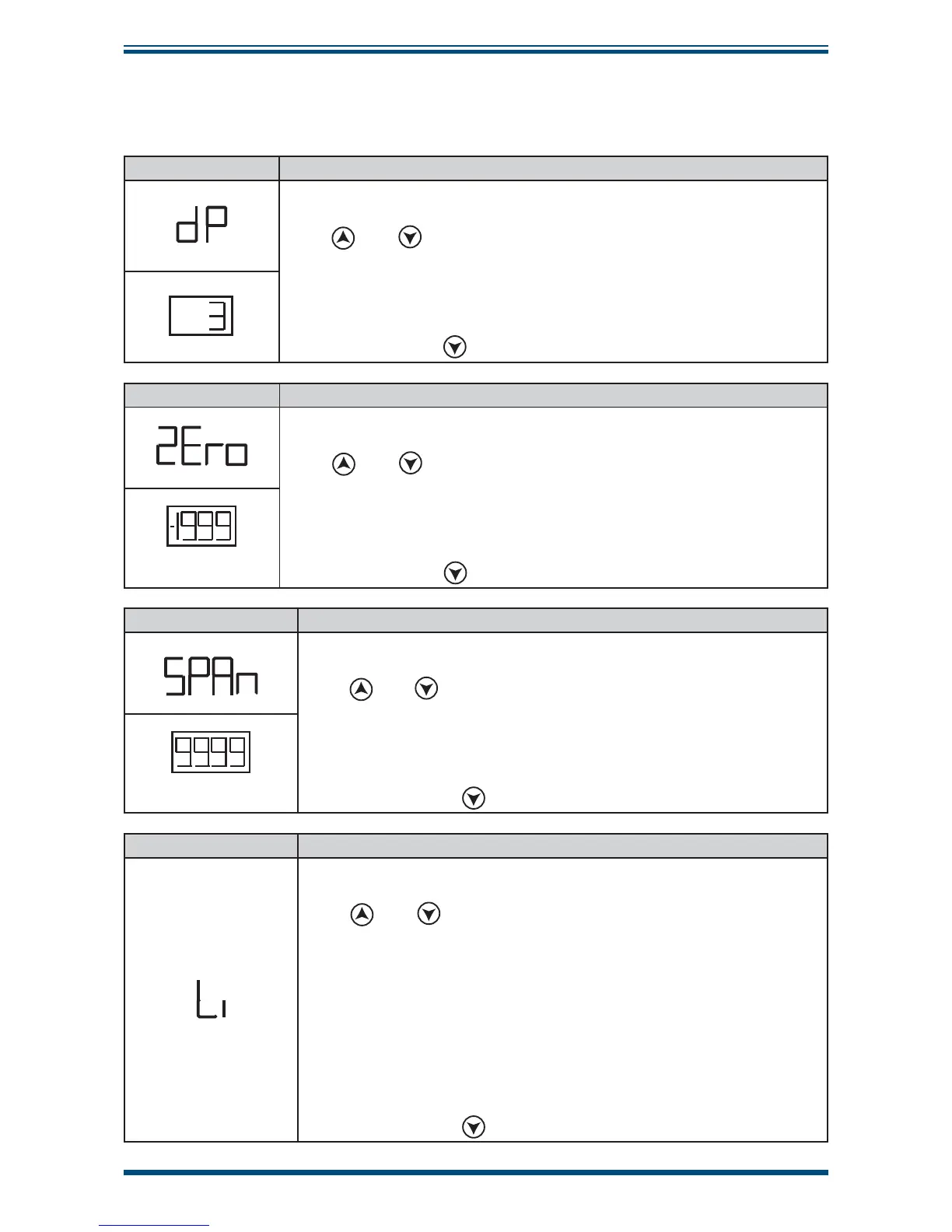

To enter menu press the E button for 2 seconds.
Displayed Text Description
Setting decimal point DP
Press
E button
Press
and buttons to change decimal position
1.234 (value 3)
12.34 (value 2)
123.4 (value 1) Factory default
1234 to decimal point (value 0)
Press E button. Press to go to Zero Setting
Displayed Text Description
Setting low limit Zero (set-up of the low limit)
Press
E button
Press
and buttons to change the value between -1999 and 9999
(the value chosen will be displayed at input current of 4 mA-point low)
NOTE: For 1 decimal place resolution set this value to 10 times the
actual required value, e.g. -1000 for -100.0 / -1100 for -110.0
Press
E button. Press to go to Span Setting
Displayed Text Description
Setting high limit SPAN (setup of the high limit)
Press
E button
Press
and buttons to change the value between -1999 and 9999
(the value chosen will be displayed at input current of 20 mA-point high)
NOTE: For 1 decimal place resolution set this value to 10 times
the actual required value, e.g. 200 for 20.0
Press
E button. Press to go to Li Setting
Displayed Text Description
Setting overload limit Li (set-up of the overload limit)
Press
E button
Press
and buttons to change the value
0 for 4-20 mA
the display shows
-LO- when current < 4 mA
and
-HI- when current >20 mA
1 for 3.6 mA - 20.4 mA Factory default
the display shows
-LO- when current <3.6 mA
-HI- when current >20.4 mA
Press
E button. Press to go to St Setting
