INSTALLATION
2.1.2 Pipe Mounting
The Easidew PRO XP can be supplied with a pipe mounting bracket as an optional
accessory, which allows the transmitter to be installed onto pipework up to 51mm (2”)
diameter.

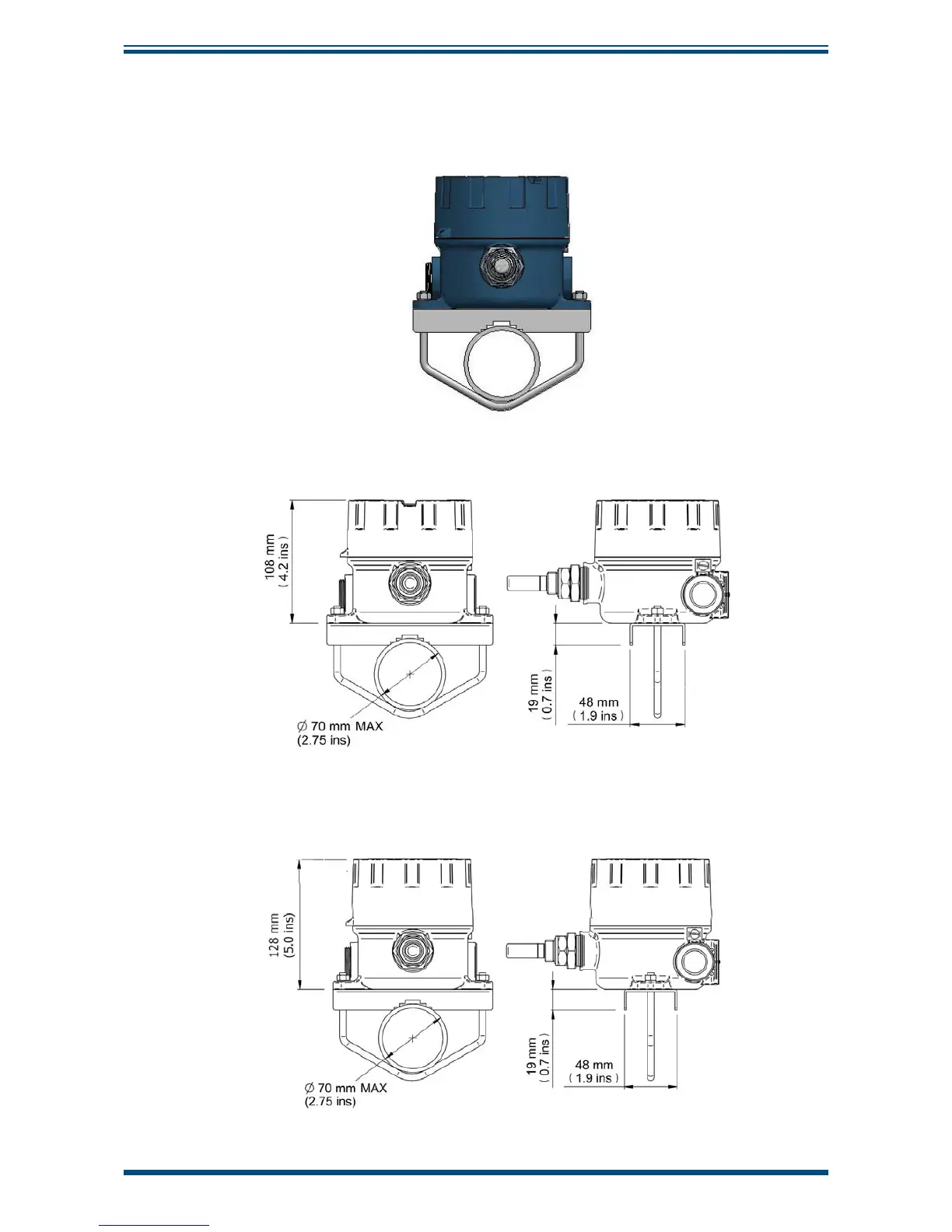

Figure 4 Transmitter Mounting - Pipe or Duct
Figure 5 Dimensions Easidew PRO XP EX1 (Non-Display) - Pipe or Duct
Figure 6 Dimensions Easidew PRO XP EX2 (Display) - Pipe or Duct
