INSTALLATION
4. Plug the terminal block back into the underside of the display meter and
place it back onto its posts. Align the display meter in relation to the
housing, as required.
5. Re-fi t the enclosure lid in a clockwise direction until it stops and secure in
place by tightening the grub screw with a 1.5mm (0.06”) A/F Allen key.

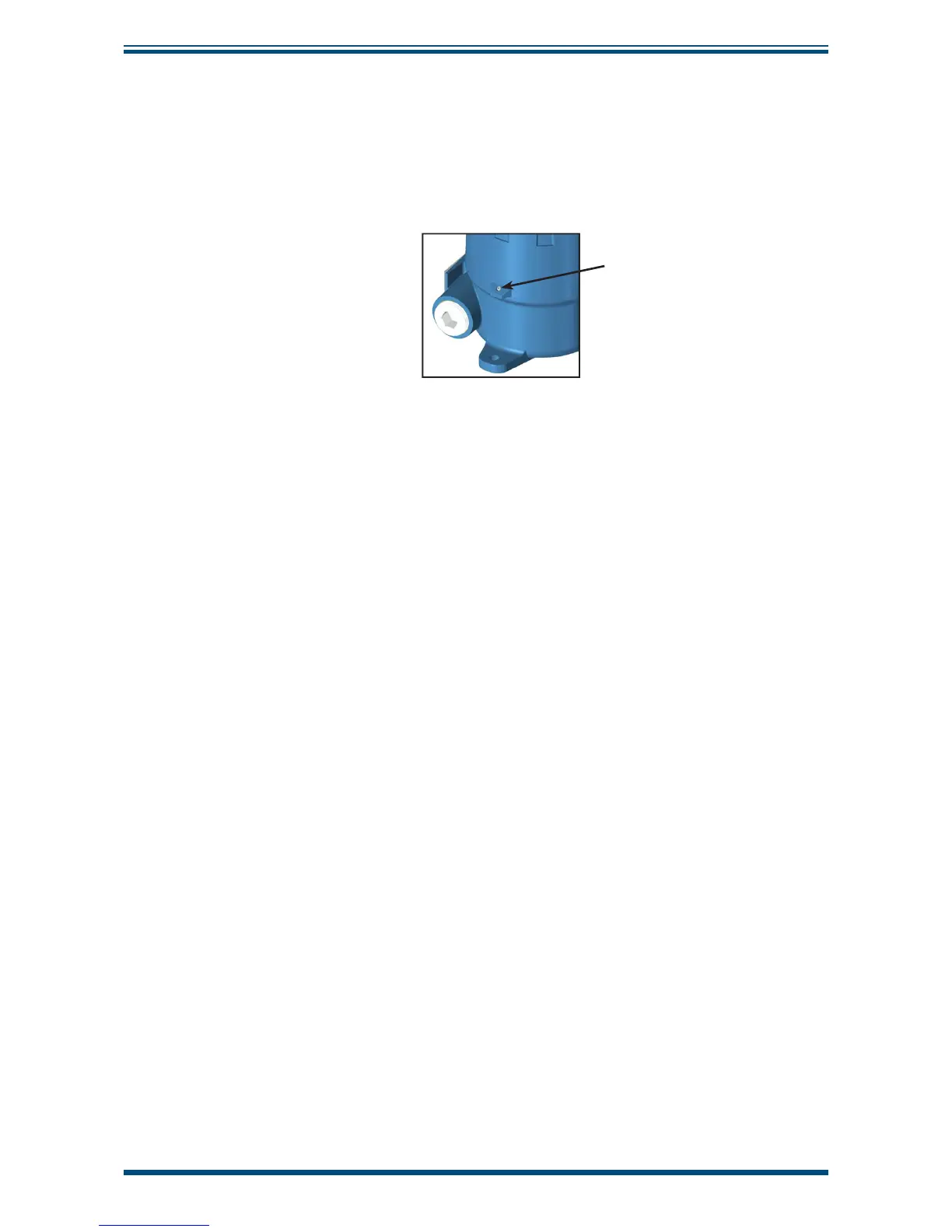

Grub screw
Figure 18 Grub Screw
