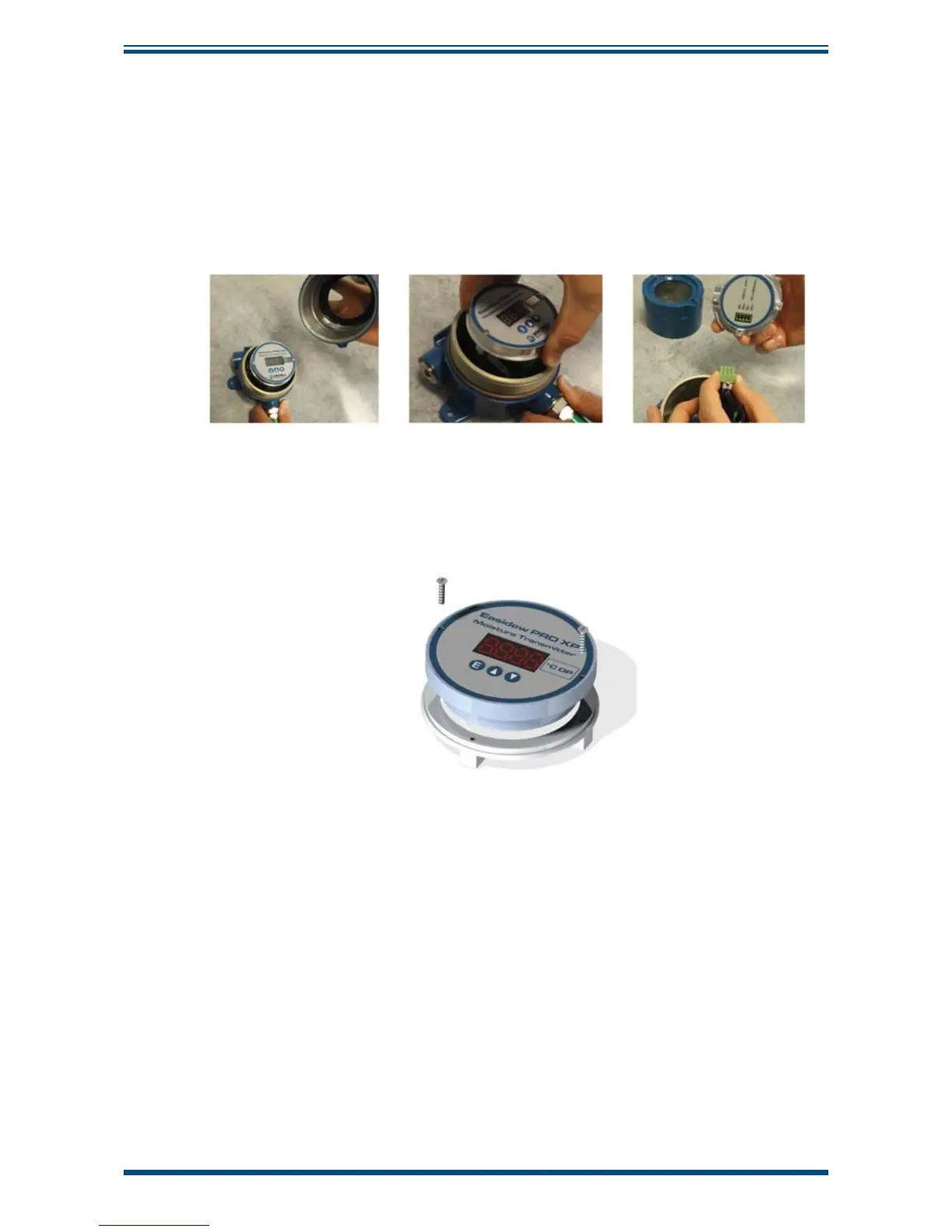

4.3 Display Replacement
1. Unscrew the locking screw on the enclosure cap with a 1.5mm A/F Allen
key.
2. Unscrew the cap, lift the display and mounting ring clear from the 2 off
mounting pillars, and unplug the connector.
3. Remove the 2 off small screws holding the display onto its mounting ring.
Lift the display clear.
4. Re-assemble as above, in reverse order, being careful not to overtighten
the screws. Ensure that the connector is fully mated.
5. Re-fi t the enclosure cap and tighten the locking screw.
6. The display is supplied with a default confi guration. Refer to Appendix D.4
‘Re-confi guration Steps’ if required.
