Easidew PRO XP User’s Manual
Michell Instruments 13
INSTALLATION
2.6 Pressure Safety
WARNING:
This product is used in conjunction with pressurized gases.
Observe pressurized gas handling precautions.
WARNING:
Pressurized gas is dangerous.
Pressurized gas should only handled by suitably trained
personnel.
The Easidew PRO XP requires pressurized gas to be connected to it. Observe pressurized
gas handling regulations and only suitable trained personnel should carry out task that
include the use of pressurized gas mediums.
DO NOT permit pressures greater than the safe working pressure to be applied to the
instrument. The speci ed safe working pressure for this instrument is 450 barg (6525
psig) max.
2.7 Electrical Schematic
2.7.1 Easidew PRO XP EX1 (Non-Display)
NOTE: To ensure compliance with EMC standards, ensure that the screen of the
power supply/signal cable or the power supply/signal conduit is connected
to ground.
With the cable entry option, a conductive cable entry gland is recommended,
allowing the transmitter housing to be earthed via the cable screen connection.
Always connect the 4-20 mA return signal to a suitable load
(see
Figure 15)
before the power is applied. Without this
connection, the transmitter may be damaged if allowed to
operate for prolonged periods.
1 2 3 4
+
-
LOAD
SUPPLY
Screen or Conduit

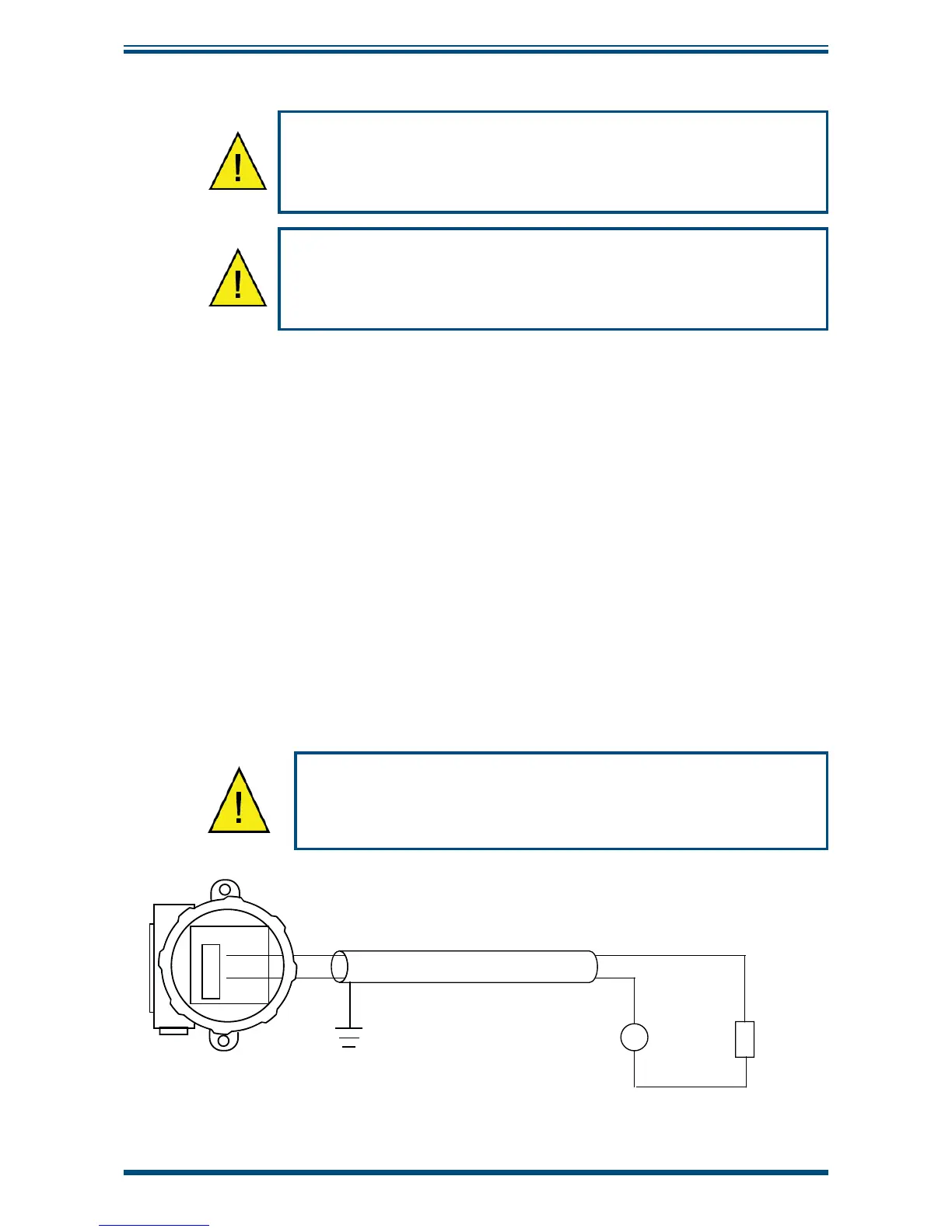

Figure 11
Electrical Schematic - Easidew PRO XP EX1 (Non-Display)
