© Microhard Systems Inc. CONFIDENTIAL 148
IP9xx Series
6.0 Configuration

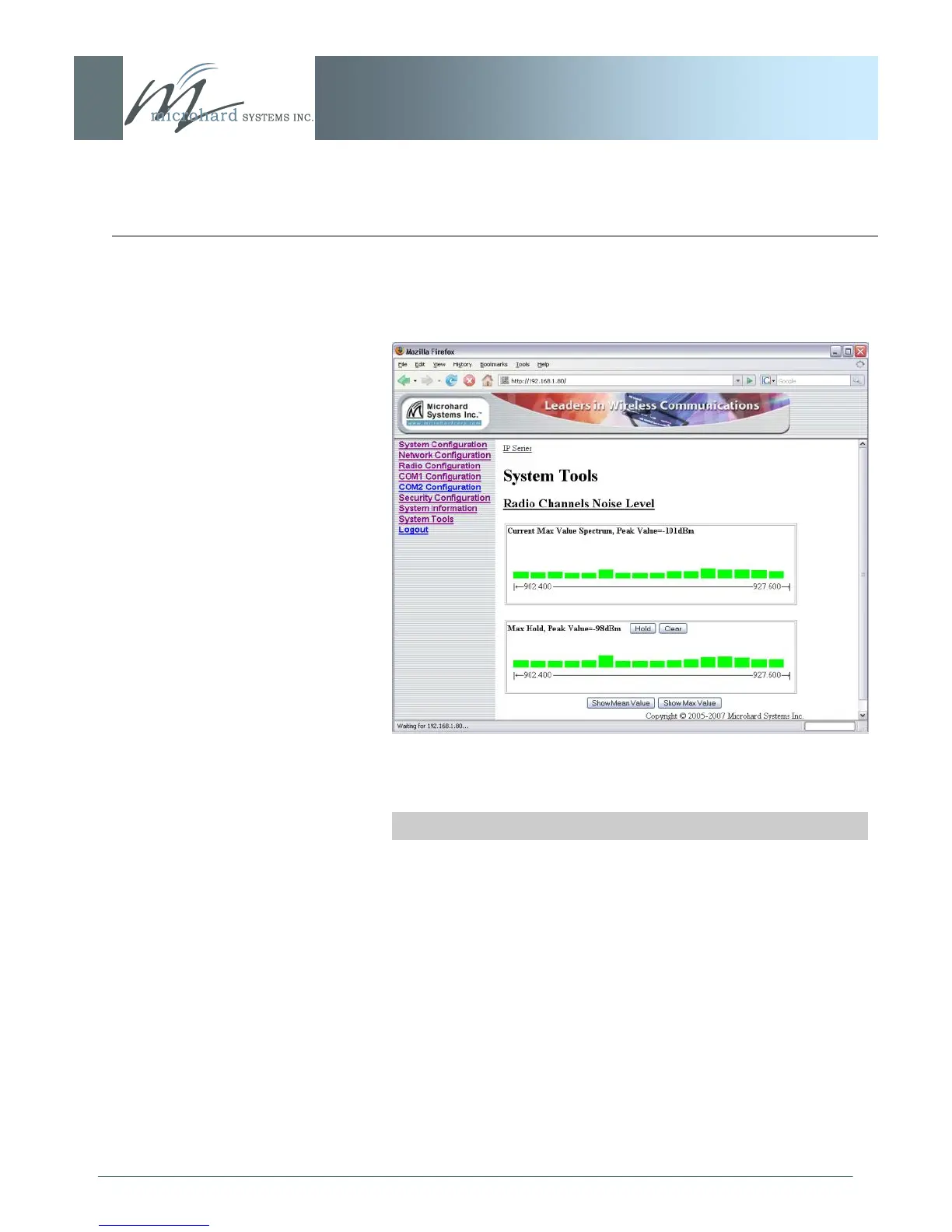

Image 6AV: System Tools, Radio Channels Noise Level, Max Value
To view the maximum (peak) noise level, click the Show Max Value
soft button. Move the PC‘s cursor over the various channels to
view the measured values.
Soft Buttons
Hold
Do not refresh currently displayed values.
Clear
Clear current values and take new measurements.
Show Mean Value
Display the mean (average) values of noise level
measurements.
Show Max Value
Display the maximum (peak) measured noise levels.
