IP9xx Series
6.0 Configuration
6.1.9.4 Radio Channels Noise Level

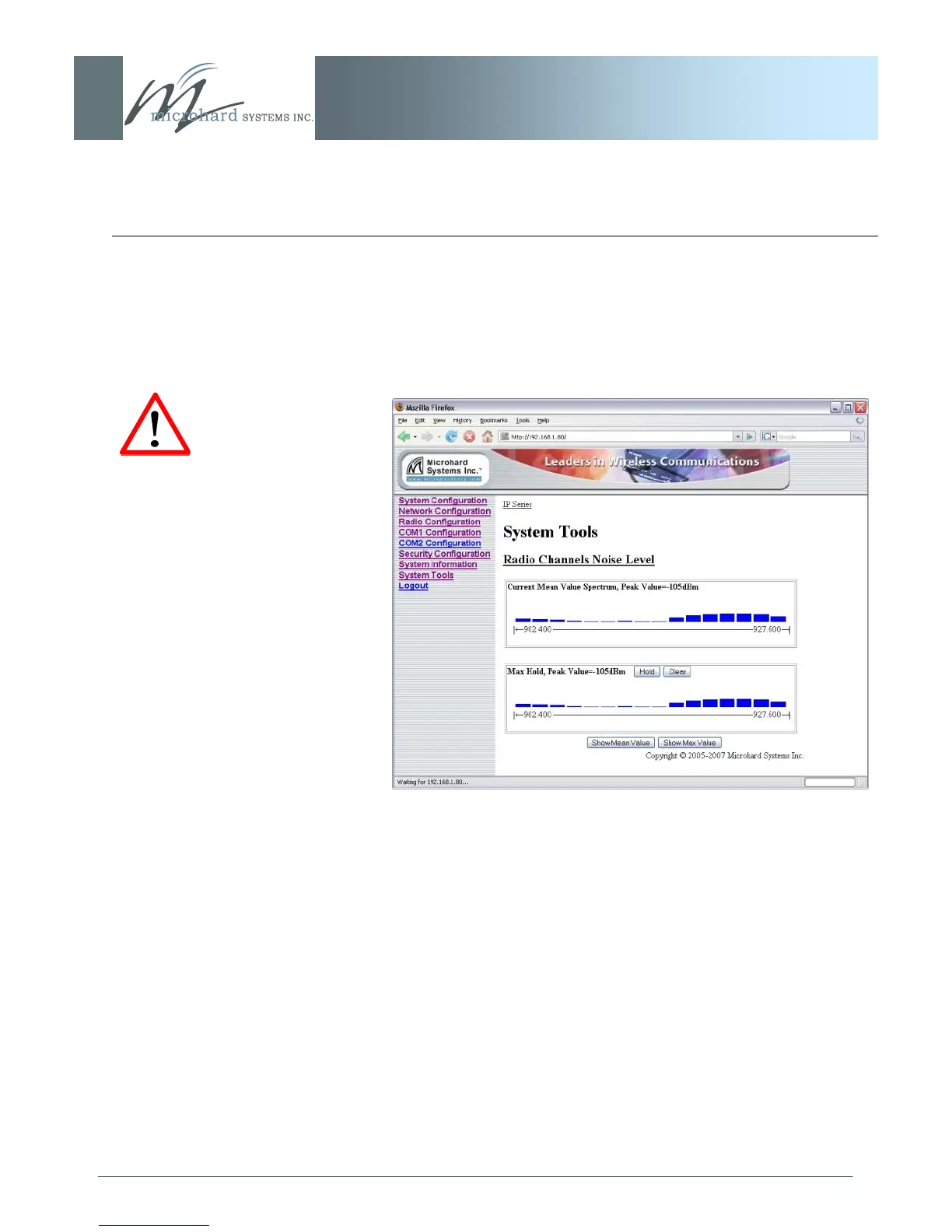

Image 6AV: System Tools, Radio Channels Noise Level, Mean Value
This tool may be used to measure and observe the mean (average)
and peak noise levels in the operating frequency range of the IP
Series.
When a Radio Channels
Noise Level measurement is
taken, the IP Series goes
‗offline‘ with respect to data
Moving the PC‘s cursor over (‗mouse over‘) a particular channel will
display the following for that channel:
 Channel Number
 Frequency (MHz)
 Noise Level (dBm)
continued...
