IP9xx Series
6.0 Configuration
6.1.4 Network Configuration

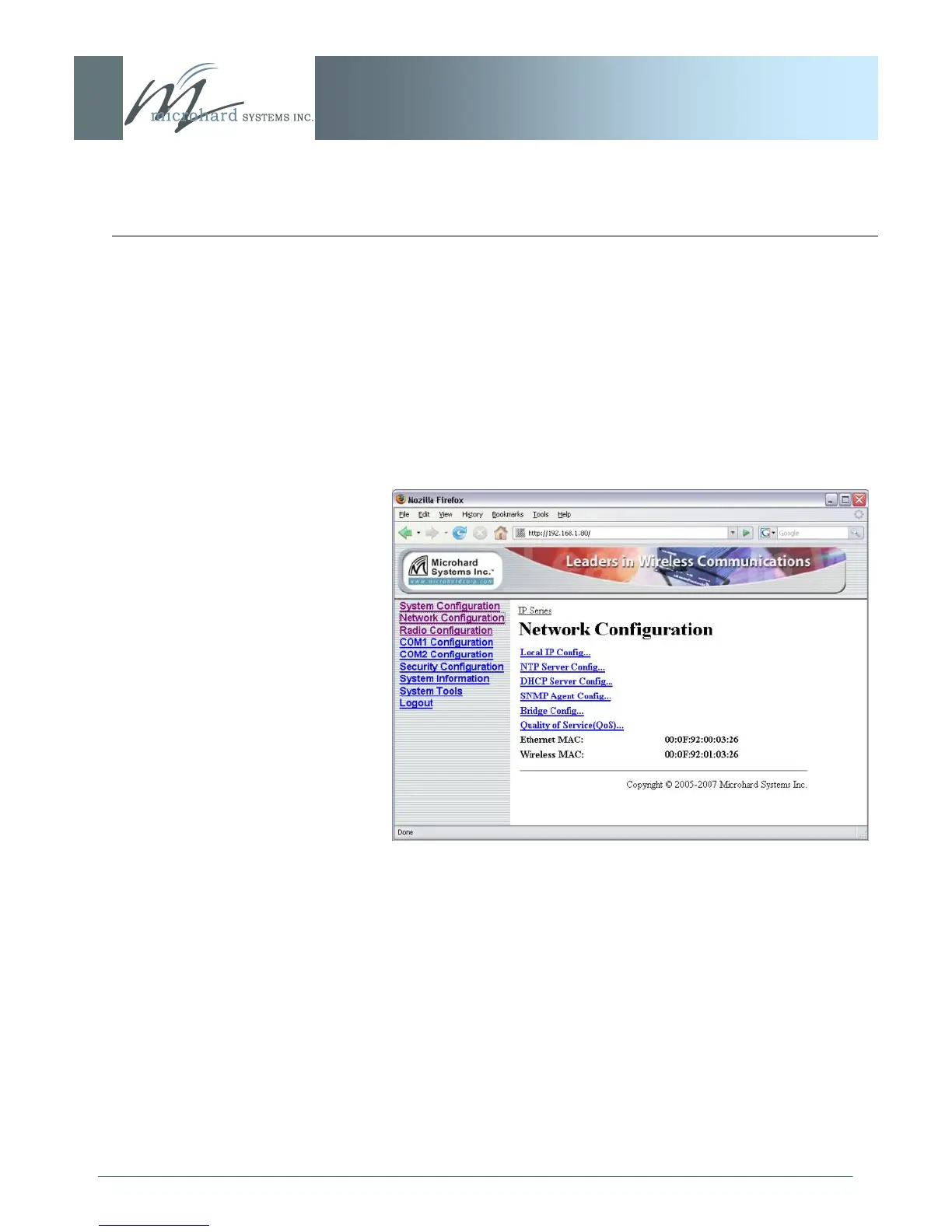

Image 6E: Network Configuration, Top Level Menu
The Network Configuration menu consists of a number of
submenus, all of which provide various options pertaining to
configuring the units to be part of an IP network. These settings do
not effect the ‗radio‘ communications network aspect of the system,
however, be mindful of the Network Type (Radio Configuration
menu) as that dictates the possibilities for the flow of network data.
For a basic implementation, only the Local IP Configuration
(submenu) options need to be defined.
The Ethernet MAC address (as displayed above) is that of the
ETHERNET interface located at the rear of the IP Series.
The Wireless MAC address is for internal purposes.
