TIMING -Time Interval
TIMING -Time Interval
You can use the Time Interval only if you have purchased the PTP option. See "How to Activ-
ate the PTP Option" on page 53
Time Interval is only available on S350 Syncservers with the PTPoption enabled.
The time interval is measured from the 1PPS in and compared to the top of second of the
internal hardware HW Clock. This means that you cannot use the 1PPS input as a reference
source and measure Time Interval at the same time. The Web UI will not prevent you from
doing this, but the user should disable the 1PPS in on the TIMING > HWClock page when
making a Time Interval measurement.

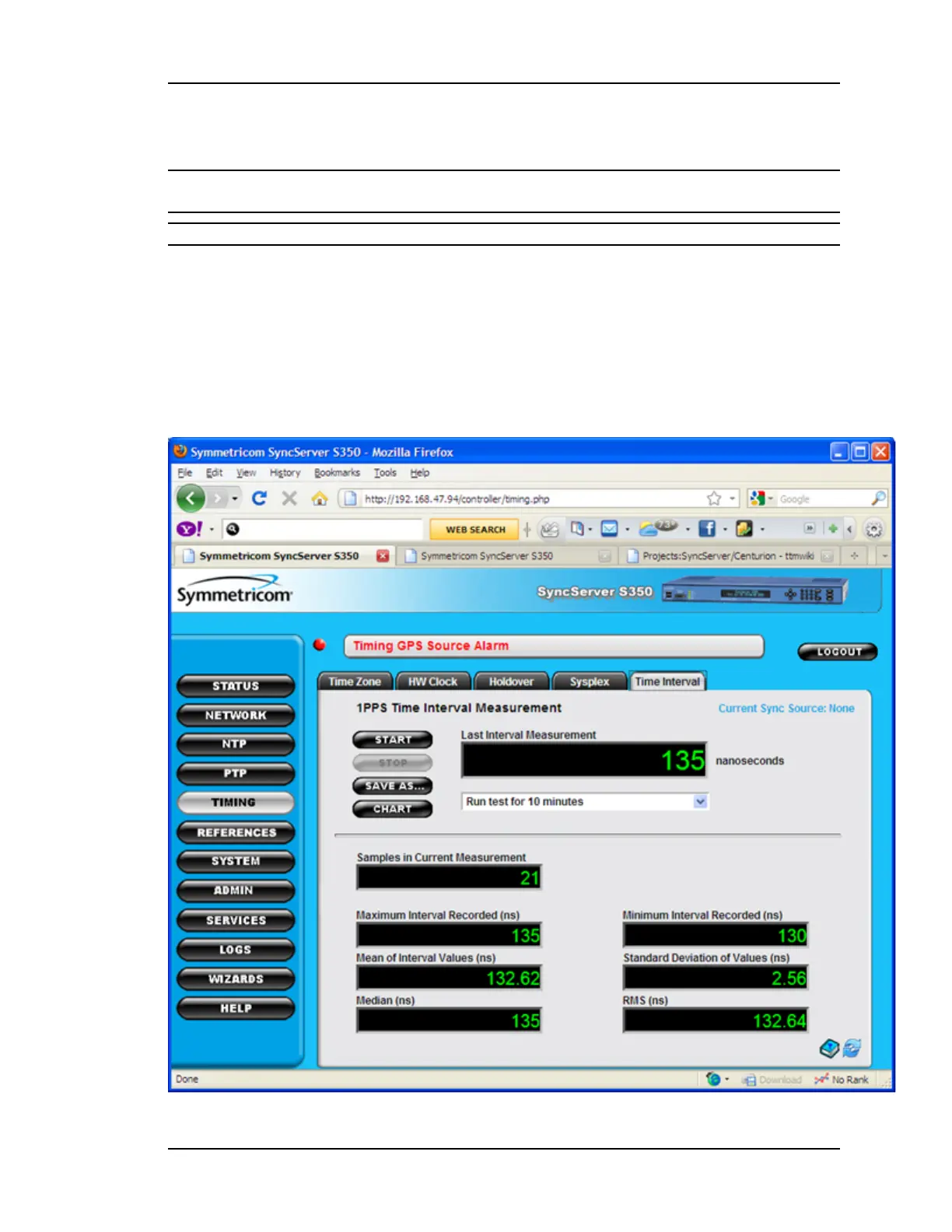

From the TIMING, Time Interval page, press the CHART button to access the charting
applet.
997-01520-02 Rev. F1.......................................................................... Page 67
