55
(4)

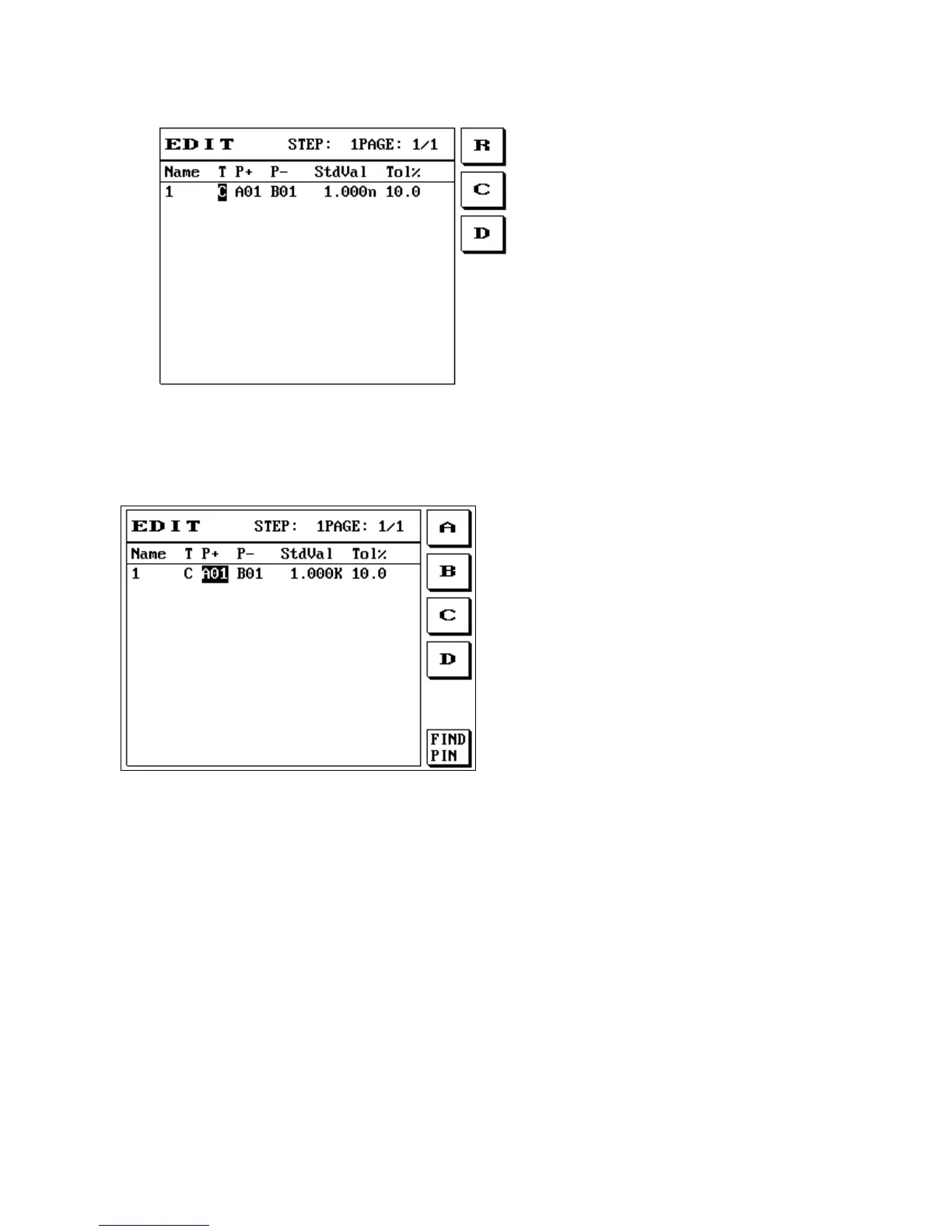

After the cursor moves to the standard value line, enter the actual test value or use S1 [Learn] and
S2 [Learn
all] func
tion; the LCD screen
will display as follows
:
(5)
When the component is resistance or capacitance, press S5 [
CLR. O
FFS
] to offse
t; the LCD
scree
n will display as follows:
55
57
Table of Contents
Chapter 1 Cautions
4
Warming-Start
5
Chapter 2 General Summary
6
Operating Basics
7
Front and Rear Panel Displays
8
Rear Panel
10
Block Diagram of Tester Functions
12
Installation
13
Button Usage Instructions
15
Chapter 3 Function Setting and System Setting
16
System Self-Test
17
RAM Configuration Table
18
Pin Search
22
Meter Mode
23
Networking Fixture Setting
27
System Setting (SYS)
28
Setting the Operating Environment
29
Setting the Testing Environment
31
Set System Time
34
Change System Password
35
Print Function Menu
36
File Management (File)
39
Mode Setting (Mode)
40
Multiple Simultaneous Test DUT (Miltidut)
49
Test Item (Item)
51
Test Condition Setting
52
R/C/D Component Setting Edit (Resistance)
55
High Voltage Setting Edit (HV)
59
Comprehensive Test Implementation
63
File Management
64
Step Setting
65
Create New File
71
Upload All
72
File Sorting
73
Import File
75
