Midas MR18 User Manual

9 M AIR User Manual

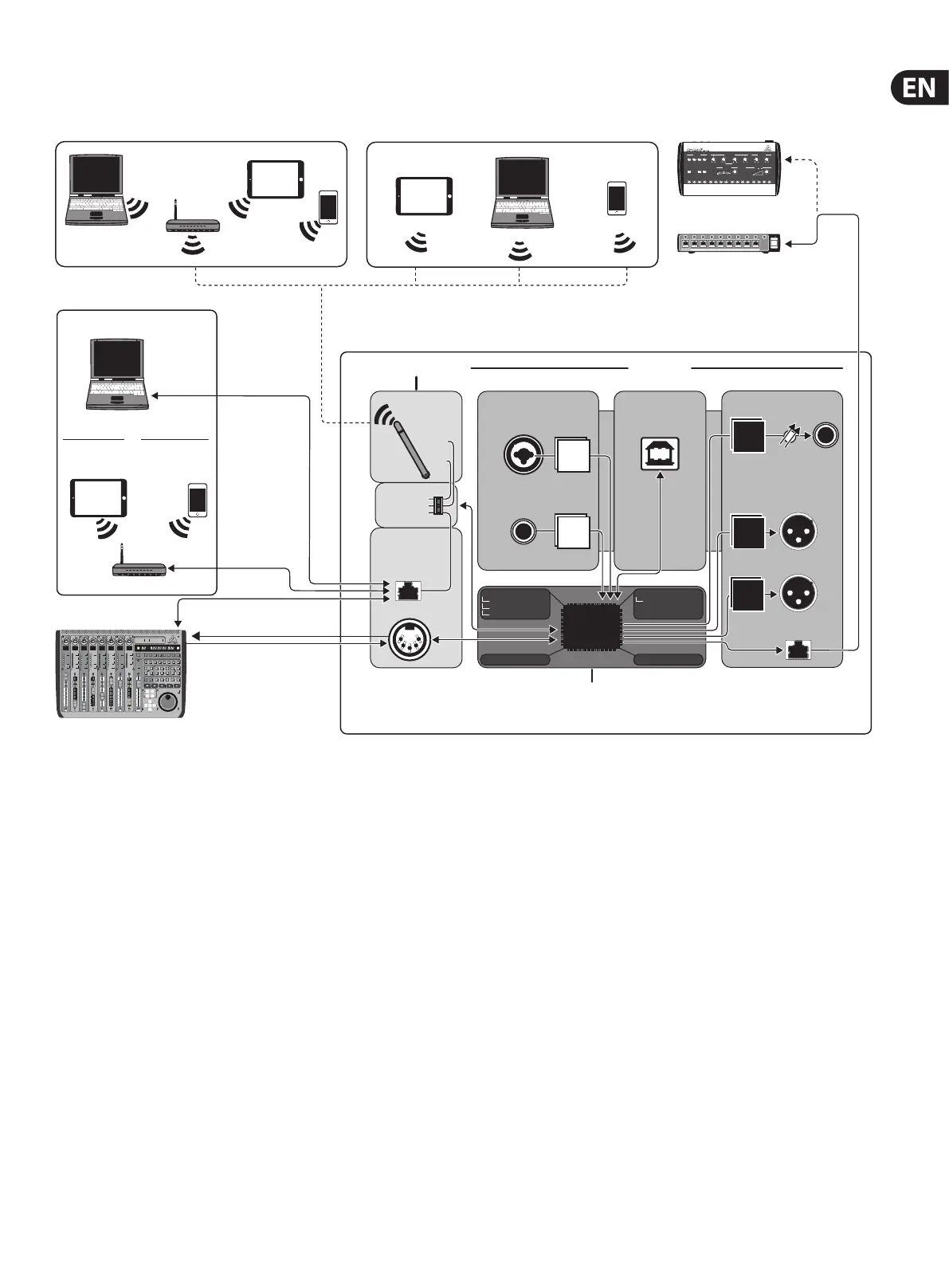

3.1.3 MR18 System Overview
MIC/LINE IN
CH. 1-16
AUDIO IN/OUT
CH. 1-18
MAIN OUT L-R
AUX SEND 1-6
ULTRANET OUT
CH. 1-16
ETHERNET
LINE IN
CH. 17-18
PHONES STEREO
AUDIO INPUTS USB AUDIO
AUDIO I/OMIXER CONTROL
DSP ENGINE
MIDI I/O
WIRED CONTROL
ACCESS
POINT*
WIFI
CLIENT*
WIRELESS CONTROL
AUDIO OUTPUTS
LEVEL
DSP
ACCESS POINT
WIFI CLIENT
ETHERNET
or
ACCESS POINT mode (Mobile Devices with WiFi)
*ACCESS POINT mode:
- available channels: 1-11
- max. 4 Wifi clients
- performance limited by Wifi bandwidth
*WIFI CLIENT mode:
- available channels: 1-11
4 STEREO FX SLOTS RTA METER
DSP-MIXER CH.
MONO IN 1-16
USB/AUX IN (STEREO)
FX RETURN 1-4 (STEREO)
DSP-MIXER BUSES
AUX /
GROUP SEND 1-6
iOS/Android Android
Win/Mac/Linux
P16-M
P16-D
DACs
ADCs
ADCs
DACs
DACs
Router
Router
WIFI CLIENT mode (Mobile Devices with Wifi)
ETHERNET mode
Computer with Ethernet port
Mobile Devices with WiFi
CAT-5 cable
CAT-5 cable
iOS/Android*
X-TOUCH
or any other MIDI /
Mackie Control
compatible Controller
Win/Mac*/Linux*
Win/Mac/Linux
iOS/Android
or
MR18

Midas MR18 Specifications

General

Channels	18
Mic Preamps	16
Aux Sends	6
Sample Rate	48 kHz
Type	Digital Mixer
EQ Bands	4-band parametric
Data I/O	Ethernet
Computer Connectivity	USB
MIDI I/O	No
Headphones	1 x 1/4"
A/D Resolution	24-bit
Bit Depth	24-bit
Phantom Power	Yes
Inputs	16 x XLR/TRS Combo, 2 x 1/4"
Digital Signal Processing	40-bit
Frequency Response	20Hz - 20kHz
Connectivity	Ethernet
Control	Ethernet, Wi-Fi
Effects	Reverb, delay, chorus, flanger, phaser
USB Audio Interface	Yes
