Midea M-thermal Mono Series User Manual

38

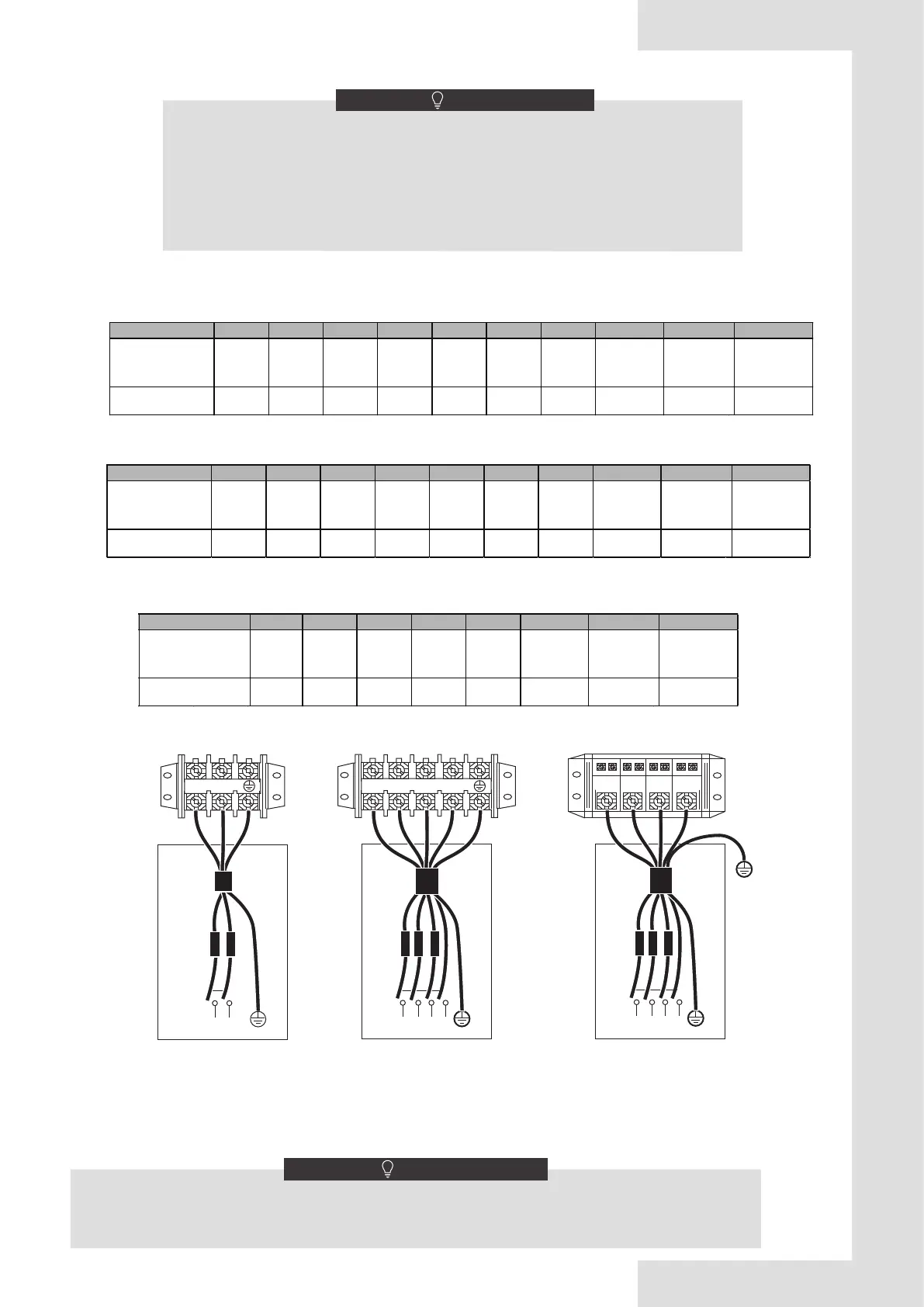

9.7.5 Remove the switch box cover
NOTE
Unit 4kW 6kW 8kW 10kW 12kW 14kW 16kW 12kW 3-PH 14kW 3-PH 16kW 3-PH
Maximum
overcurrent
protector(MOP)(A
)
18 18 19 19 30 30 30 14 14 14
Wiring size(mm
2
)
4.0 4.0 4.0 4.0 6.0 6.0 6.0 2.5 2.5 2.5
MCA : Max. Circuit Amps. (A)
TOCA : Total Over-current Amps. (A)
MFA : Max. Fuse Amps. (A)
MSC : Max. Starting Amps. (A)
RLA : In nominal cooling or heating test condition，the input Amps of compressor where MAX. Hz
can operate Rated Load Amps. (A);
KW : Rated Motor Output
FLA : Full Load Amps. (A)
Unit 4kW 6kW 8kW 10kW 12kW 14kW 16kW 12kW 3-PH 14kW 3-PH 16kW 3-PH
Maximum
overcurrent
p
rotector(MOP)(A)
31 31 32 32 43 43 43 27 27 27
Wiring size(mm
2
)
6.0 6.0 8.0 8.0 10.0 10.0 10.0 4.0 4.0 4.0
Unit
8kW 10kW 12kW 14kW 16kW 12kW 3-PH 14kW 3-PH 16kW 3-PH
Maximum
overcurrent
protector(MOP)(A
)
32 32 43 43 43 27 27 27
Wiring size(mm
2
)
8.0 8.0 10.0 10.0 10.0 4.0 4.0 4.0
1-phase 8-16kW and 3-phase 12-16kW standard with backup heater 9kW(3-phase)
1-phase 4-16kW and 3-phase 12-16kW standard with backup heater 3kW (1-phase)
1-phase 4-16kW stadard and 3-phase 12-16kW standard
The ground fault circuit interrupter must be a high-speed type breaker of 30 mA (<0.1 s).
Please use 3-core shielded wire.
NOTE
UNIT POWER SUPPLY
1-phase
L N
L N
LPS
FUSE
XT1
UNIT POWER SUPPLY
3-phase
LPS
FUSE
L1 NL2 L3
C NBA
XT1
UNIT POWER SUPPLY
3-phase
LPS
FUSE
L1 NL2 L3
C NBA
XT1
