Midea MV6-252WV2GN1 - Page 15

V6 VRF 50/60Hz
14
Midea V6 Series Service Manual
18/20/22HP

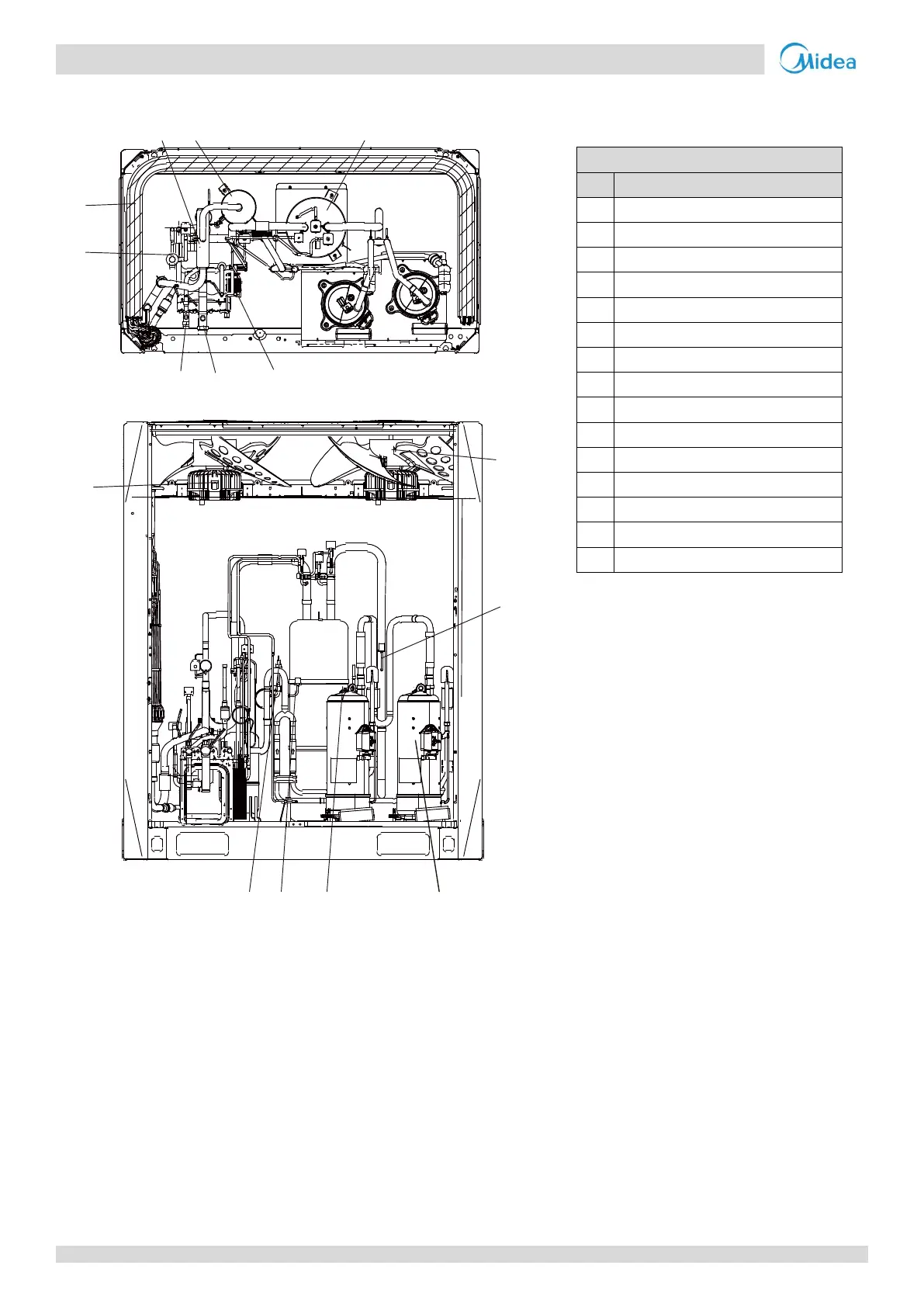

Figure 2-1.3: 18/20/22 layout of functional components
Legend
No. Parts name
1 Compressor
2 Temperature sensor for discharge gas
3 High pressure switch
4 High pressure sensor
5 Oil separator
6 Four-way valve
7 Heat exchanger
8 Electronic expansion valve (EXV)
9 Low pressure switch
10 Fan motor
11 Fan
12 Stop valve (liquid side)
13 Stop valve (gas side)
14 Plate heat exchanger
15 Accumulator
155
6
7
8
12
13
14
11
9
10
3
4
2
1
