2 Piping Diagrams
8/10/12HP

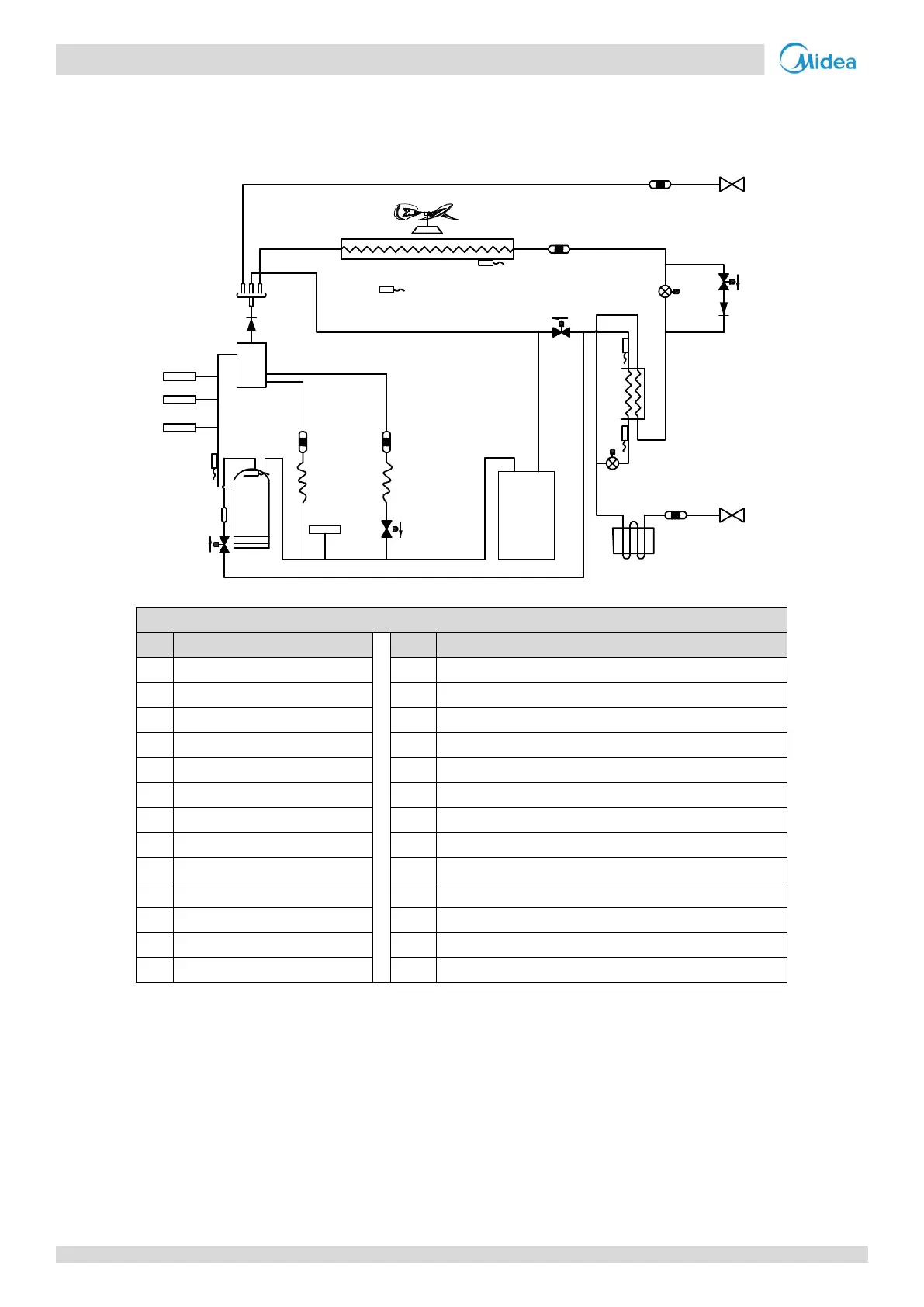

Figure 2-2.1: 8/10/12HP piping diagram
Legend
No. Parts name No. Parts name
1 Compressor 14 Plate heat exchanger
2 Discharge temperature switch 15 Accumulator
3 High pressure switch 16 Heat exchanger cooling electric control box
4 High pressure sensor T3 Heat exchanger temperature sensor
5 Oil separator T4 Outdoor ambient temperature sensor
6 Four-way valve T6A Plate heat exchanger inlet temperature sensor
7 Heat exchanger T6B Plate heat exchanger outlet temperature sensor
8 Electronic expansion valve (EXV) T7C1 Compressor A discharge temperature sensor
9 Low pressure switch T7C2 Discharge pipe temperature sensor
10 Fan motor SV4 Oil return valve
11 Fan SV5 Fast defrosting (in heating) and unloading (in cooling) valve
12 Stop valve (liquid side) SV6 Refrigerant bypass EXV valve
13 Stop valve (gas side) SV8A Compressor A vapor injection valve
7
1
15 12
9
3
2
4
5
6
11
10
9
14
8
8
13
EXVA
EXVC
E
S
C
T3
T4
T6B
T7C1
T7C2
T6A
SV8A
SV4
SV5
SV6
16
