Product description
16

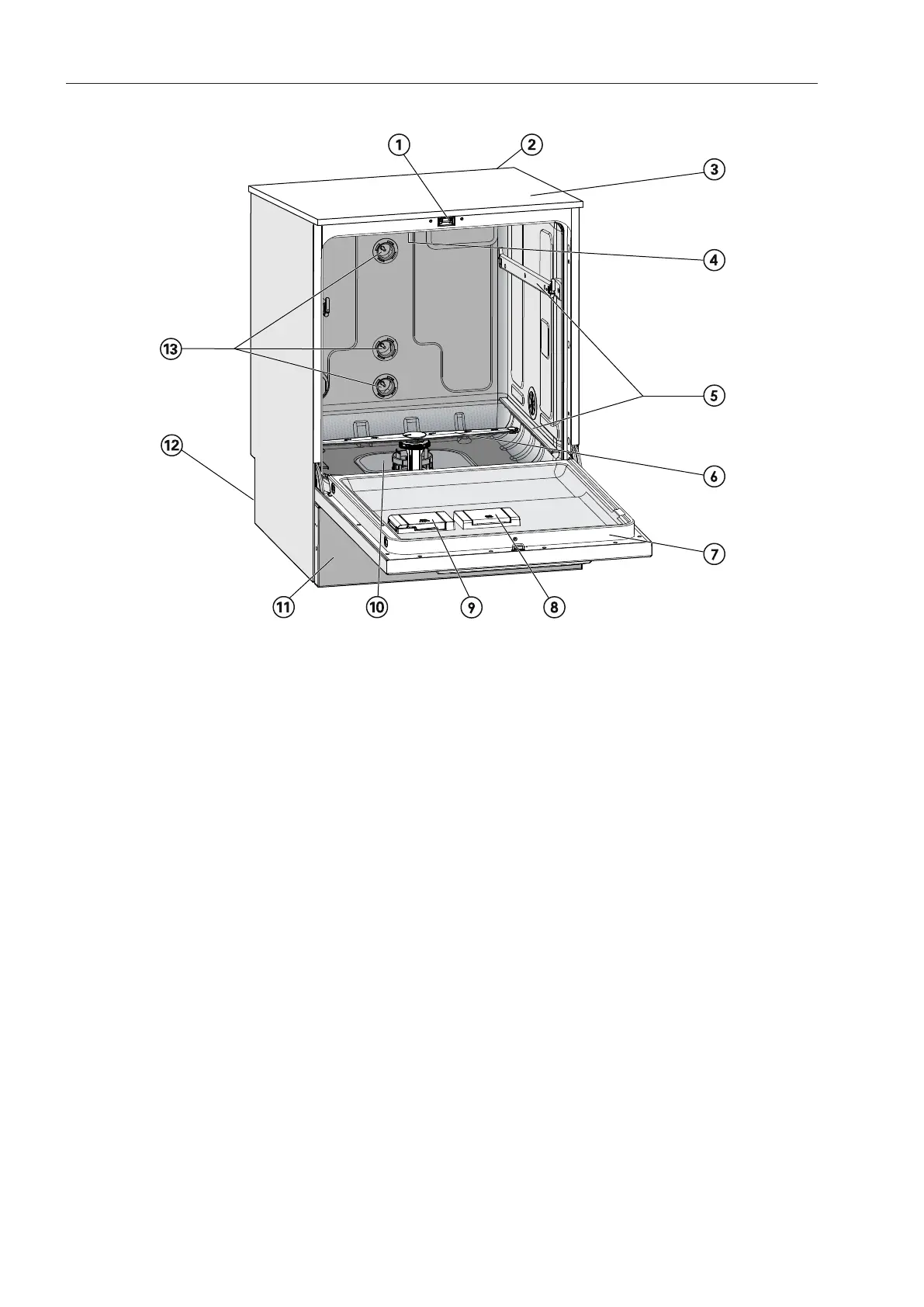

Machine overview
a
Door lock
b
Module slot for a communication module
(back, top right)
c
Test point for performance checks
(Top, front right; only visible with lid re-
moved)
d
Upper machine spray arm
e
Rails for baskets and mobile unit
f
Lower machine spray arm
g
Data plate
h
Reservoir for reactivation salt
i
Dispenser for powder process chemicals
j
Filter combination
k
Base
l
Rear of the machine:
– Second data plate
– Electrical and water connections
– Suction lance(s) for external supply con-
tainers
– Connections for external dispensing
modules (DOS modules)
m
Water connections for mobile units and
baskets
