Installation and connection
87

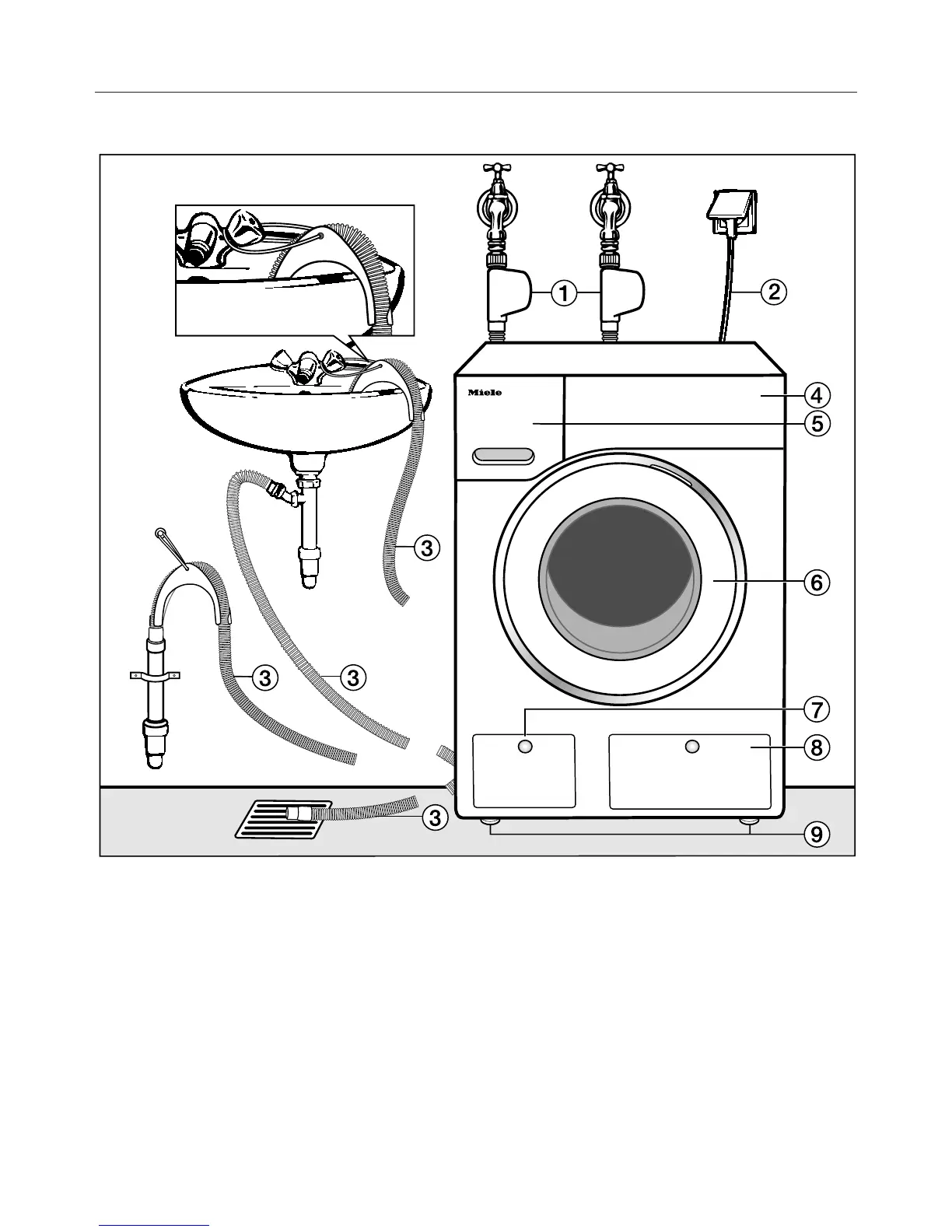

Front view
a
Inlet hoses with water protection
system for cold water and hot water
connection
b
Electrical connection
c
Flexible drain hose (with detachable
swivel elbow)
d
Control panel
e
Detergent dispenser drawer
f
Door
g
Access to filters, pumps and
emergency release
h
Access panel for TwinDos containers
i
Four height adjustable feet
