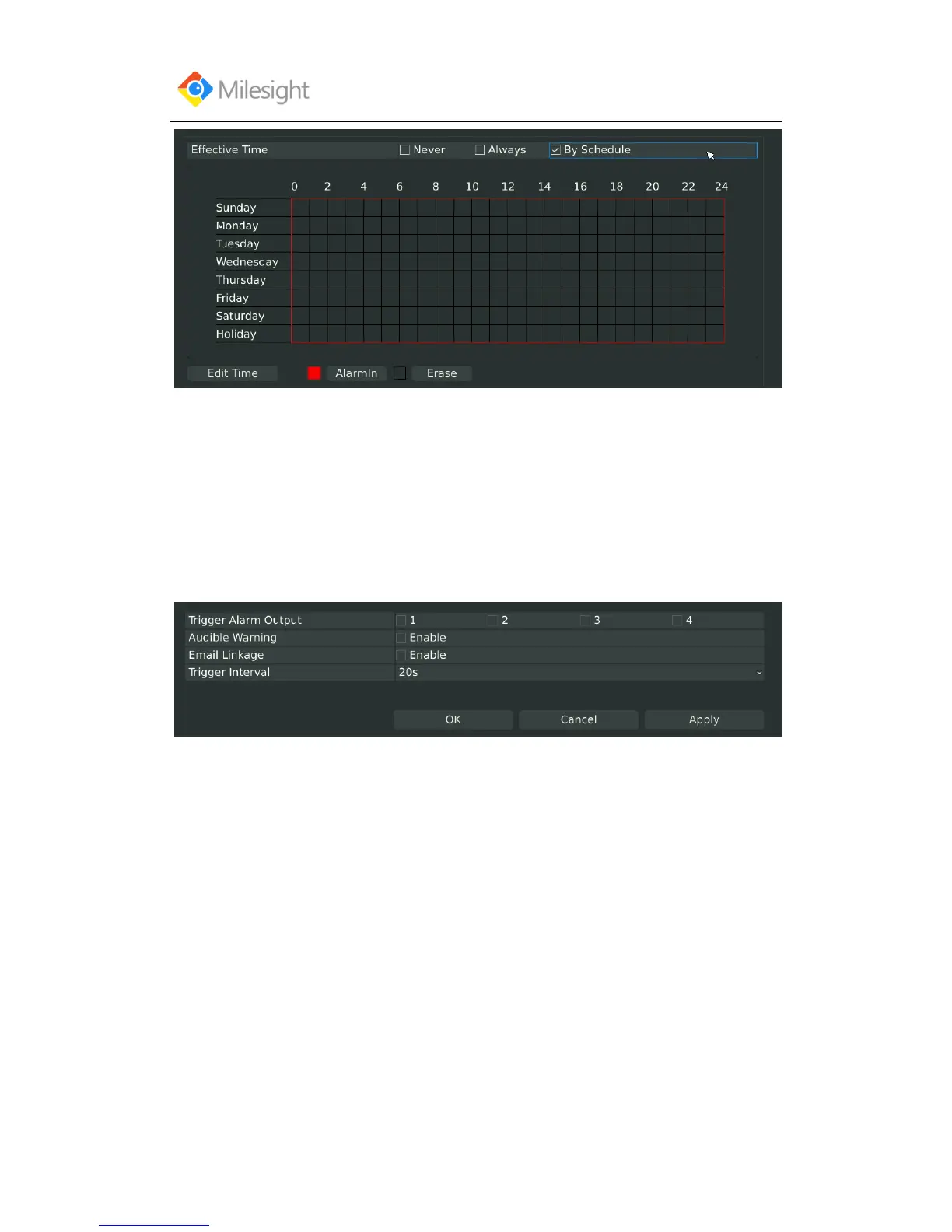

You can set three different modes for effective time:
[Never]: Will have no action triggered if it is checked;
[Always]: Will always trigger the action if checked;
[By Schedule]: Will take effect by the schedule you set.
If you choose By Schedule, you need to set schedule by 1.drag the mouse on the time schedule
area or 2.by click the “Edit Time” button.
2. Action
[Trigger Alarm Output]: Select whether trigger the alarm output or not when video loss is
detected.
Audible Warning: Trigger an audible beep when video loss is detected
Email Linkage: Send video loss note to specified email address when video loss is
detected.(Please refer to 3.8.2.4 Mail configuration for mail address setting)
Trigger Interval: Set the interval between two events.
Note: These actions will only take response according to effective time you choose.
Lastly need to APPLY these settings to take effect.
