OM-273473 Page 67
. Hardware is common and
not available unless listed.
Ref. 274590C
3
2
1
6
4
5
11
12
13
14
9
7
8
10
15
16
17

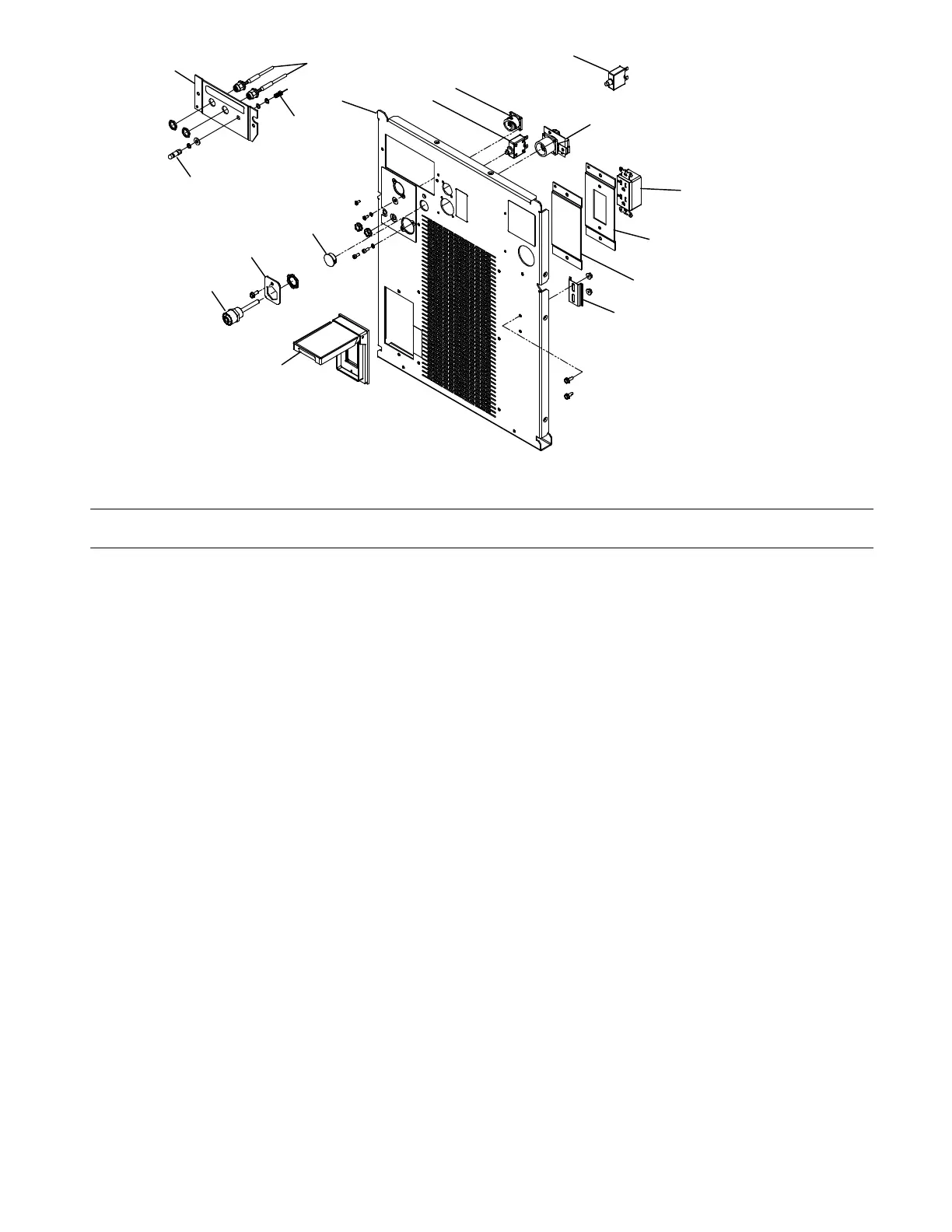

Figure 11-7. Rear Panel Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 11-7. Rear Panel Assembly (Figure 11-1, Item 5)
Quantity
1 +273395 Panel, Rear 1.. ............. .. .....................................................
258429 Label, Warning Electric Shock Can Kill 1................... .... ...........................
274436 Label, E−Stop−Peripherals Auto−Continuum 1................... .... ......................
Label, Nameplate Rear (Order By Model And Serial Number) 1............................... ........
2 257290 Panel, Rear Blank 1.. .............. .. ...............................................
3 263536 Rail, Din 35mm X 7.5mm X 1.969in 1.. .............. .. ..............................
4 PC16 261838 Circuit Card Assy, Power Source 10 Pin Filter 1.. .... .... .. .......................
5 CB1 083432 Supplementary Pro, Man Reset 1p 10a 250vac Frict 1.. .... .... .. .................
6 269208 Plugs, W/Leads 1.. .............. .. ................................................
7 260822 Antenna,Rf Monopole 2.4ghz Screw Mount 1.. .............. .. .........................
8 275563 Cable Assy, Rj45 Male/M12 Female .4m Lg 2.. .............. .. ........................
9 275313 Panel, Rear Enet 1.. .............. .. ................................................
269416 Label,Ethernet/Wireless 1................... .... ........................................
10 271543 Cable Assy,Rf Antenna 1.. .............. .. ...........................................
11 RC15 ♦214918 Rcpt, Str Dx Grd 2p3w 20a 125v 5−20r 1.. .... .. .. .............................
12 ♦257289 Panel, Rear Aux Power 1.. ............ .. ..........................................
13 ♦252139 Cover, Receptacle Duplex GFCI Vertical 1.. ............ .. ............................
14 CB2 ♦093995 Supplementary Pro, Man Reset 1p 15a 250Vac 1.. .... .. .. .....................
15 000527 Blank, Snap−In Nyl .875 Mtg Hole Black 1.. .............. .. ............................
16 ♦224012 Plate, Rotation Lock 1.. ............ .. .............................................
17 ♦198956 Receptacle, Devicenet 1.. ............ .. ...........................................
♦OPTIONAL
+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
