Miller Bobcat 225D PLUS User Manual

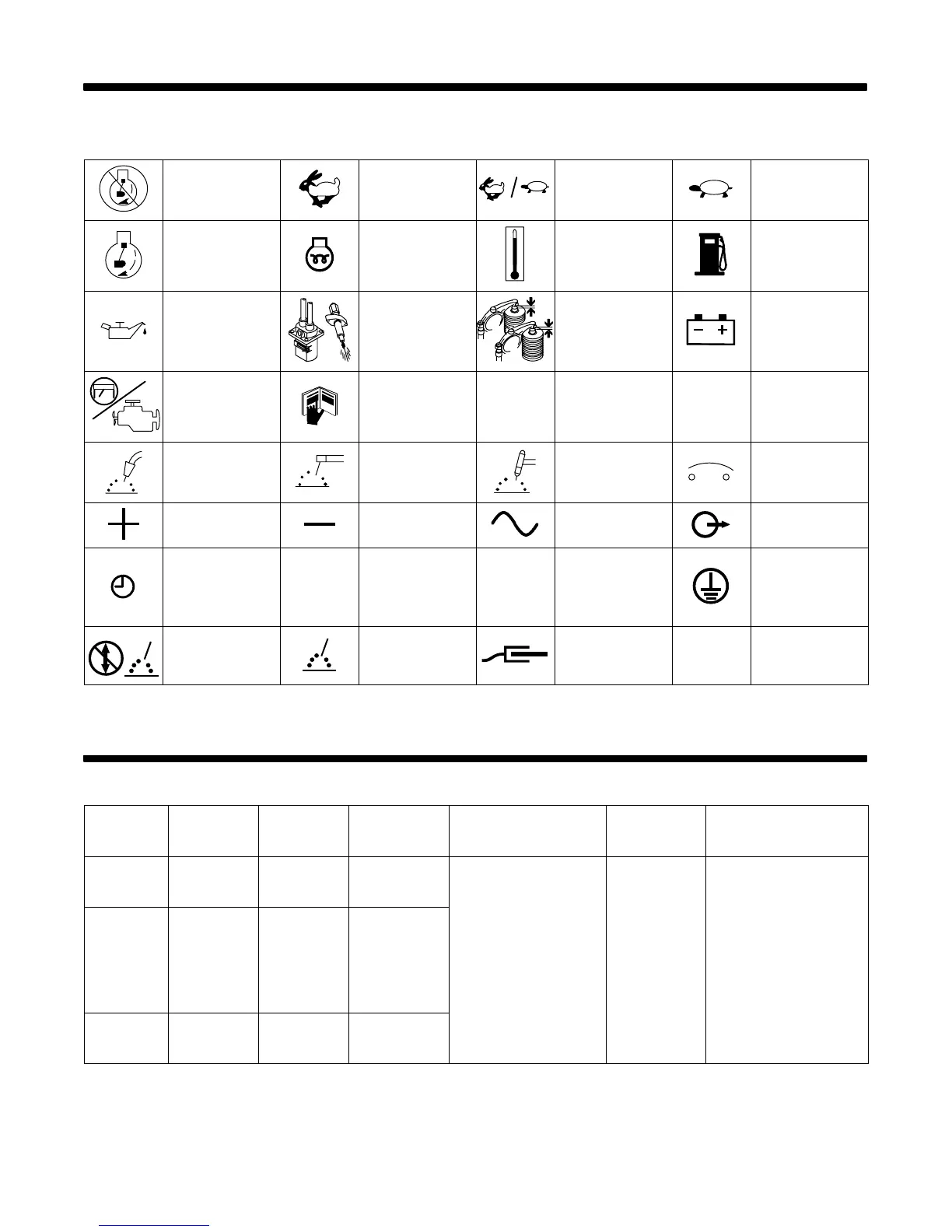

OM-404 Page 9
SECTION 2 – DEFINITIONS
2-1. Symbol Definitions
Stop Engine
Fast
(Run, Weld/Power)
Fast/Slow
(Run/Idle)
Slow (Idle)
Start Engine Glow Plug Temperature Fuel
Engine Oil
Check Injectors/
Pump
Check Valve
Clearance
Battery (Engine)
Engine
Read Operator’s
Manual
A
Amperes
V
Volts
Gas Metal Arc
Welding (GMAW)
Shielded Metal Arc
Welding (SMAW)
Gas Tungsten Arc
Welding (TIG)
Circuit Breaker
Positive Negative
Alternating Current
(AC)
Output
Time
h
Hours
s
Seconds
Protective Earth
(Ground)
Do not switch while
welding
Welding Arc
(Electrode)
Work Connection
SECTION 3 – SPECIFICATIONS
3-1. Weld, Power, and Engine Specifications
Welding
Mode
Weld Output
Range
Rated
Welding
Output
Maximum
Open Circuit
Voltage
Generator Power
Rating
Fuel
Capacity
Engine
CC/AC 50 – 225 A
225 A, 25 V,
100% Duty
Cycle
80
CC/DC 50 – 210 A
210 A, 25 V,
100% Duty
Cycle
72
Peak: 8.5 kW/kVA
Continuous: 8 kVA/kW,
Single-Phase,
70/35 A, 120/240 V AC,
50/60 Hz,
(while not welding)
10 gal (38 L)
Tank
Deutz/Ruggerini MD-151
Air-Cooled, Two-Cylinder,
Diesel Engine
CV/DC 17 – 28 V
200 A, 20 V,
100% Duty
Cycle
33
